Knock Sensor: Service and Repair

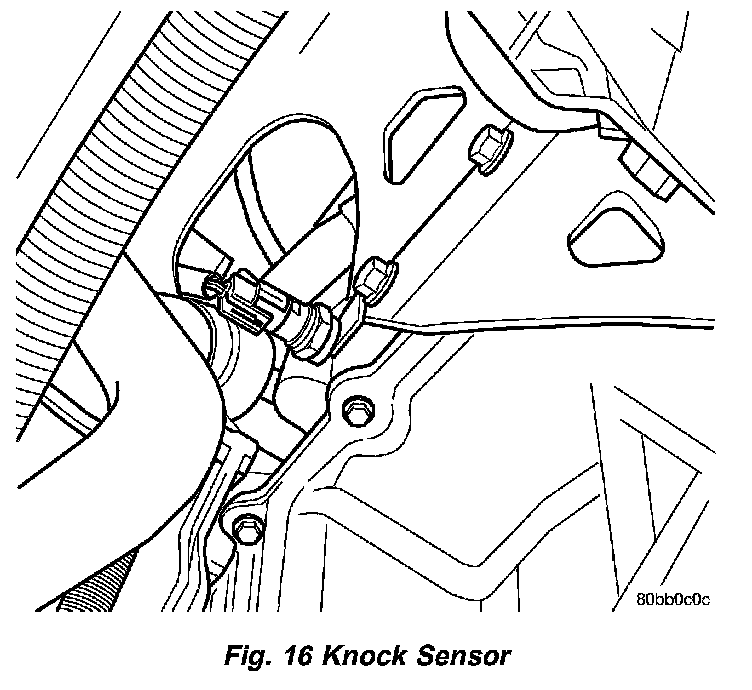

Fig.16 Knock Sensor:

REMOVAL
The knock sensor threads into the side of the cylinder block in front of the starter.
1. Disconnect electrical connector from knock sensor.
2. Use a crow foot socket to remove the knock sensors.

INSTALLATION
The knock sensor threads into the side of the cylinder block in front of the starter.
1. Install knock sensor. Tighten knock sensor to 10 Nm (7 ft. lbs.) torque. Over or under tightening effects knock sensor performance, possibly causing improper spark control.
2. Attach electrical connector to knock sensor.
