Connector Locations

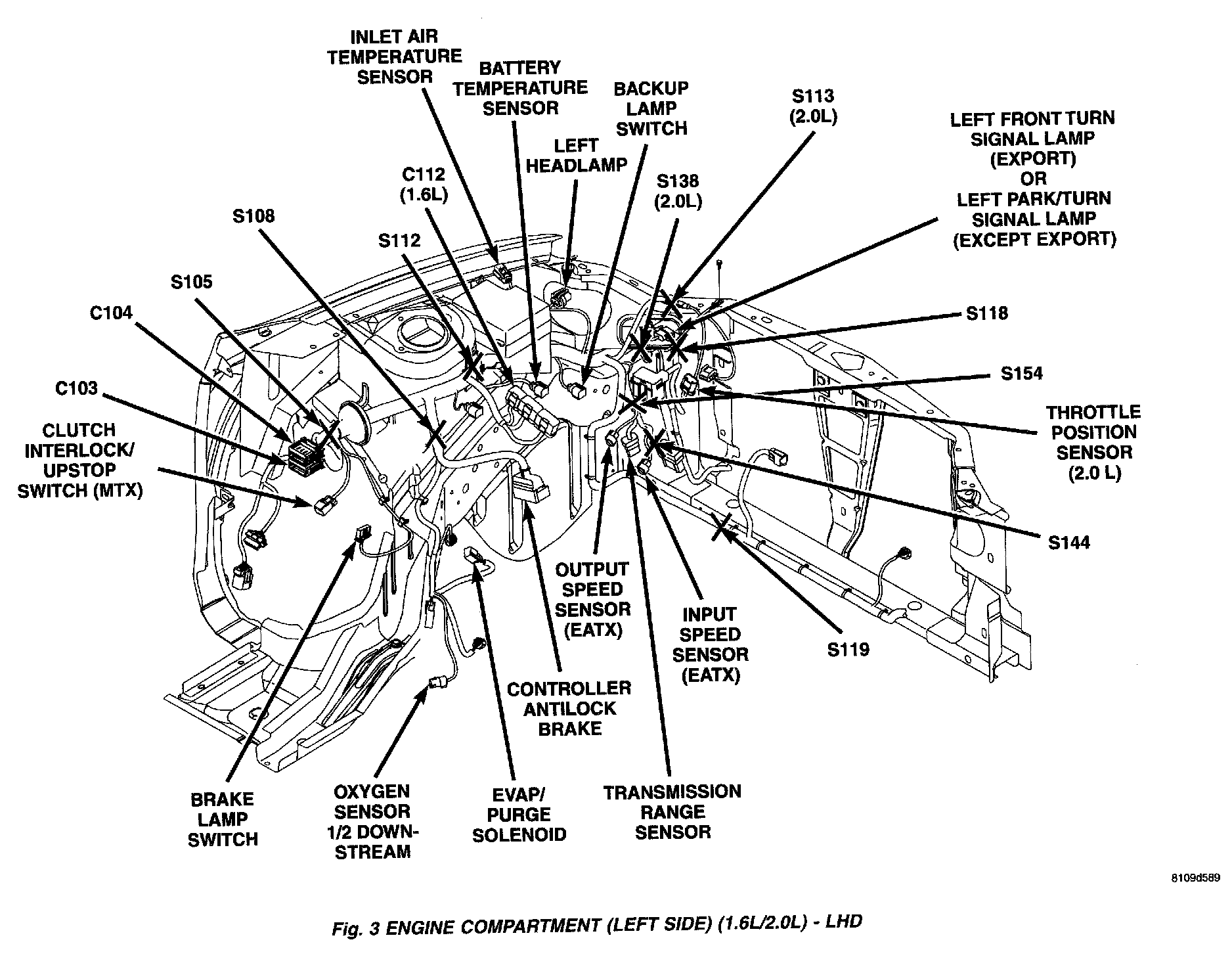

Fig. 3 Engine Compartment (Left Side) - LHD:

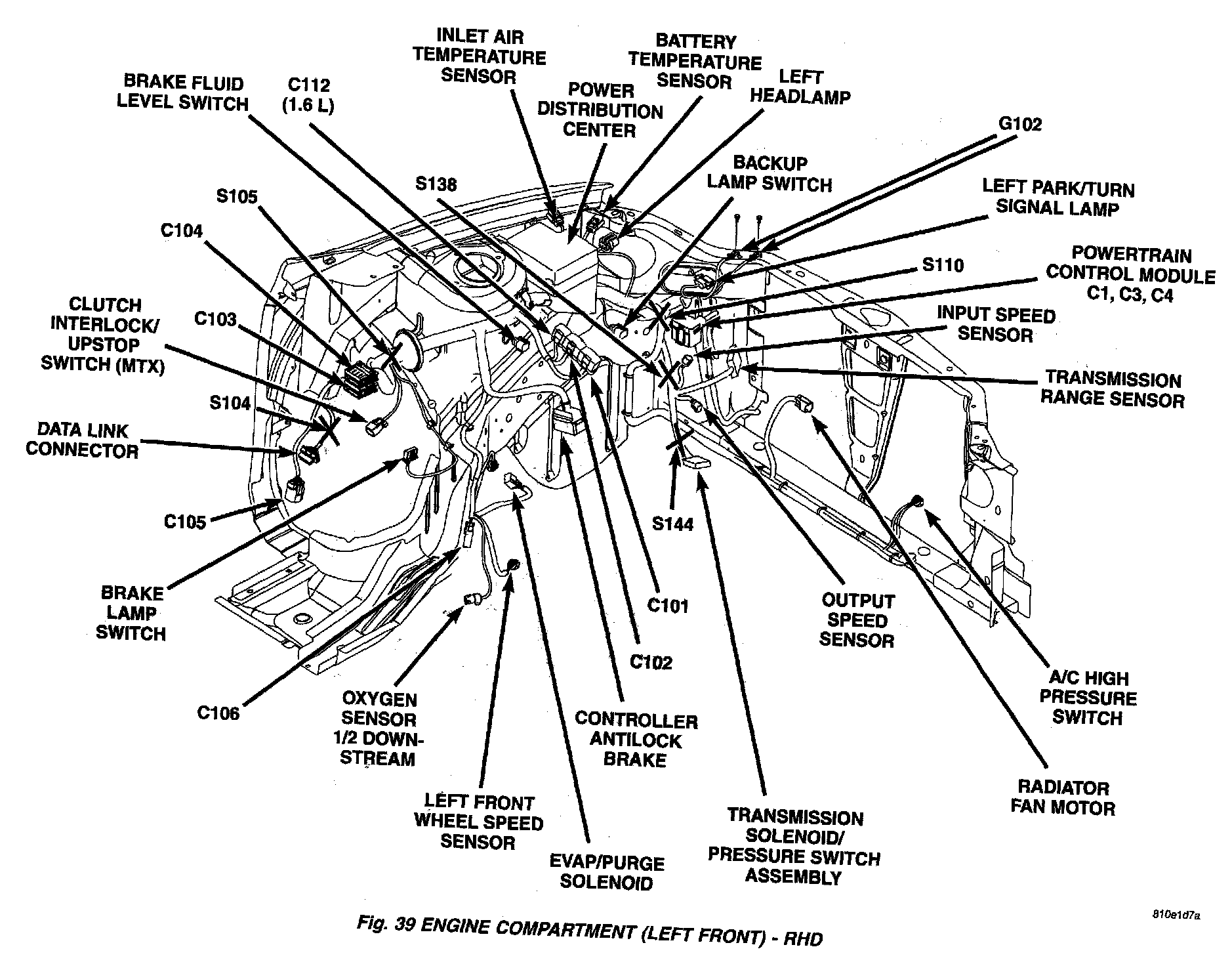

Fig. 39 Engine Compartment (Left Front) - RHD:
