Power Mirror Switch Connector End View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Power Mirror Switch Connector End View

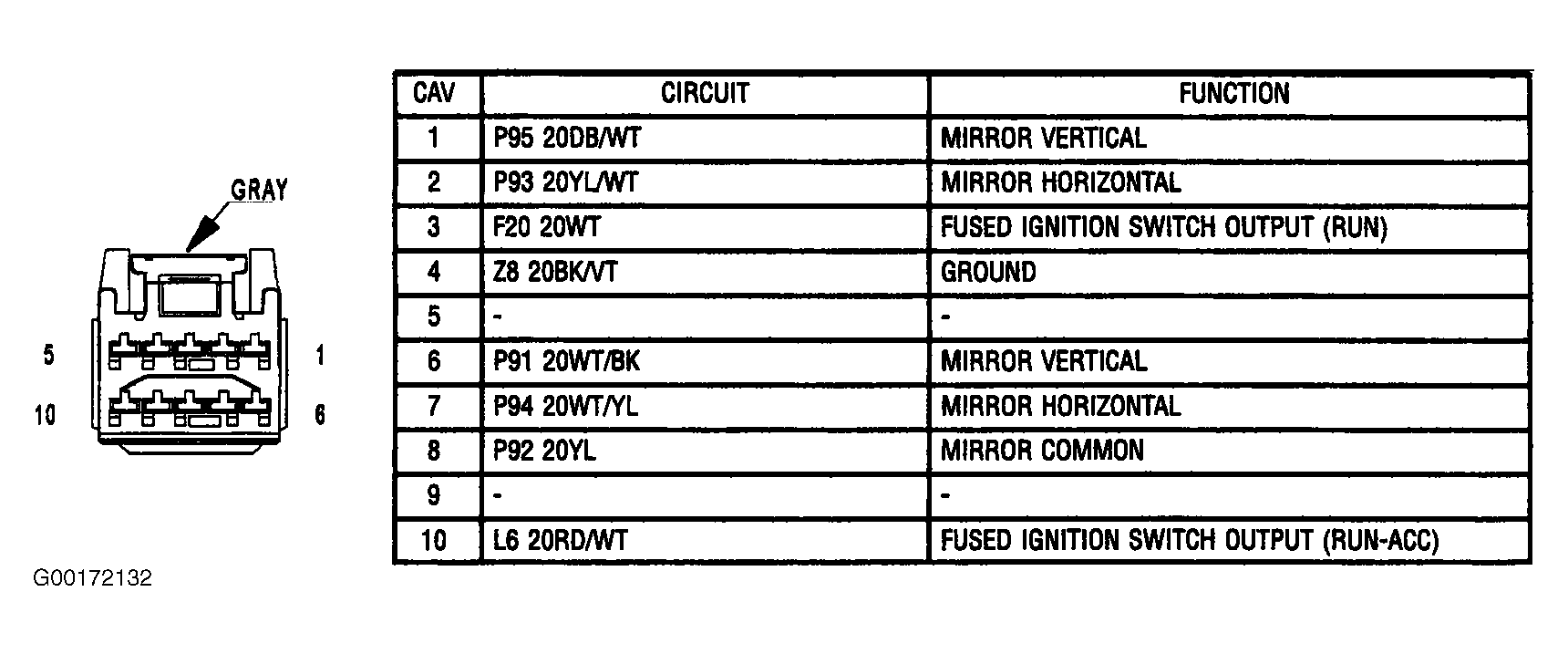

Fig 1: Power Mirror Switch Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
