Powertrain Control Module C1 Connector End View - Black 38 Way

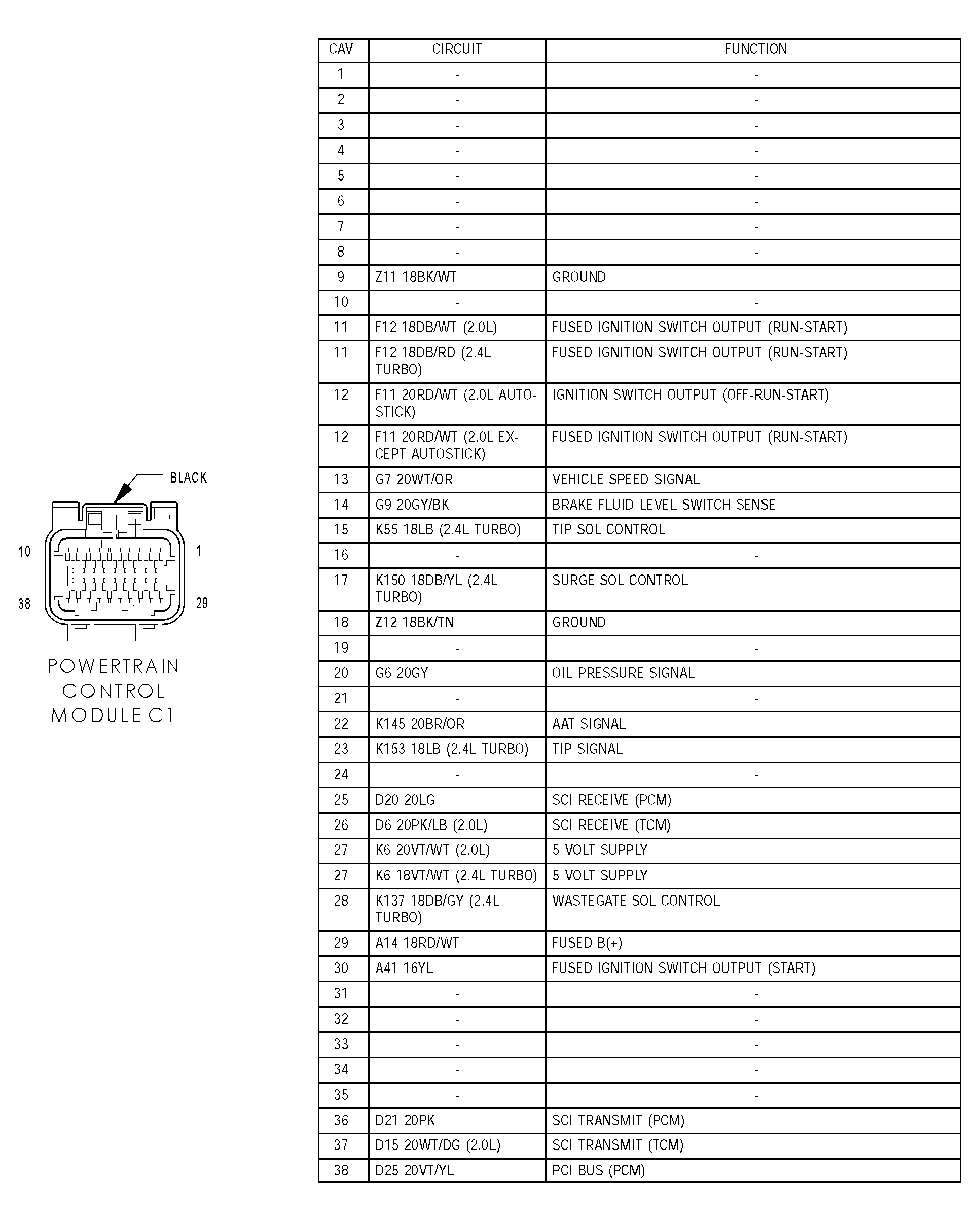

Fig 1: Powertrain Control Module C1 Connector End View - Black 38 Way
G04549826Courtesy of CHRYSLER GROUP, LLC
