Component Locations
For component locations, see Fig 1
and Fig 2
COMPONENT LOCATIONS
| Component |
Location |
| Fuse Block |
At Lower Left Front Of Dash. See Fig 1
. |
| Power Distribution Center |

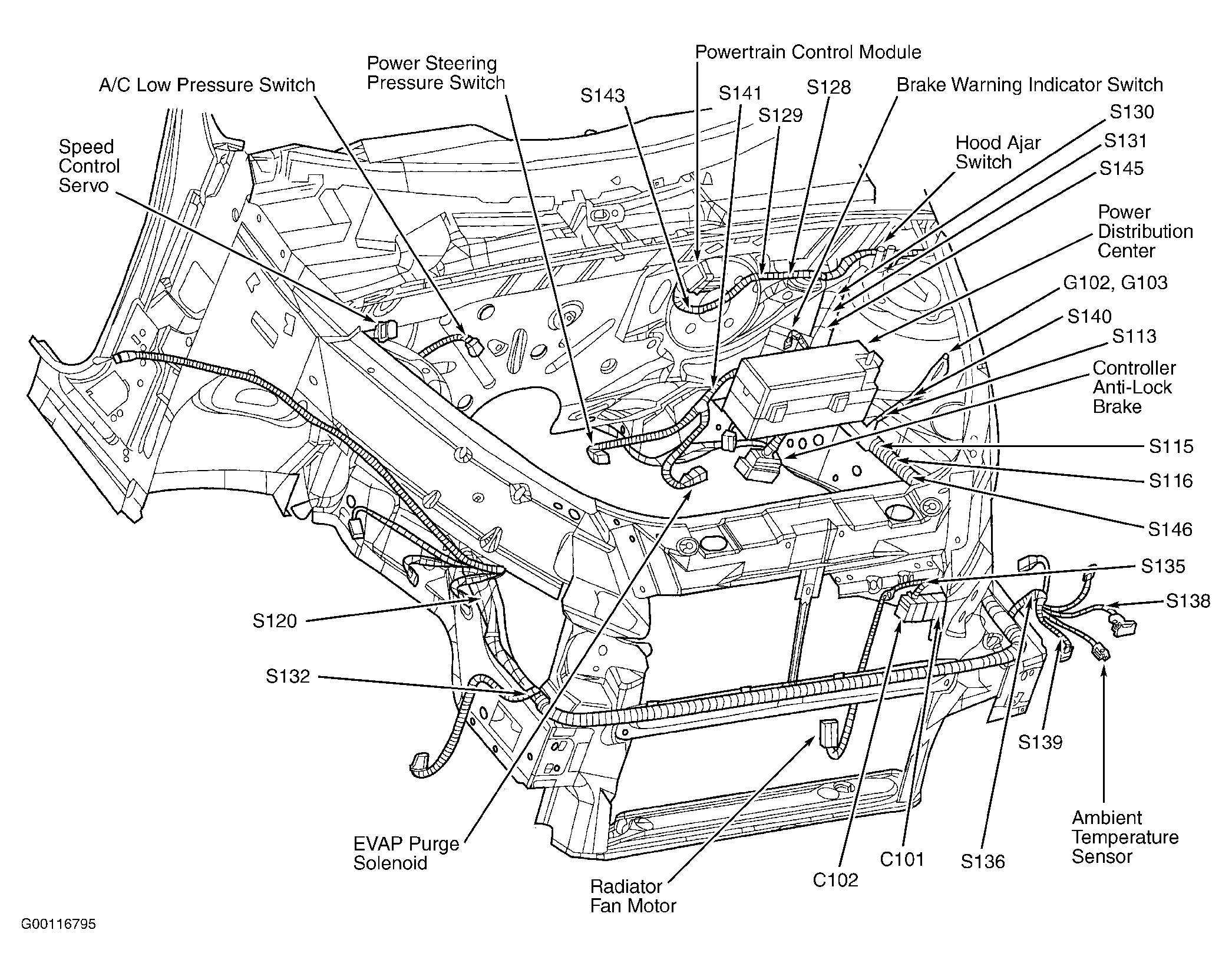

On Left Side Of Engine Compartment. See Fig 2
. |
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
