Battery Tray: Description

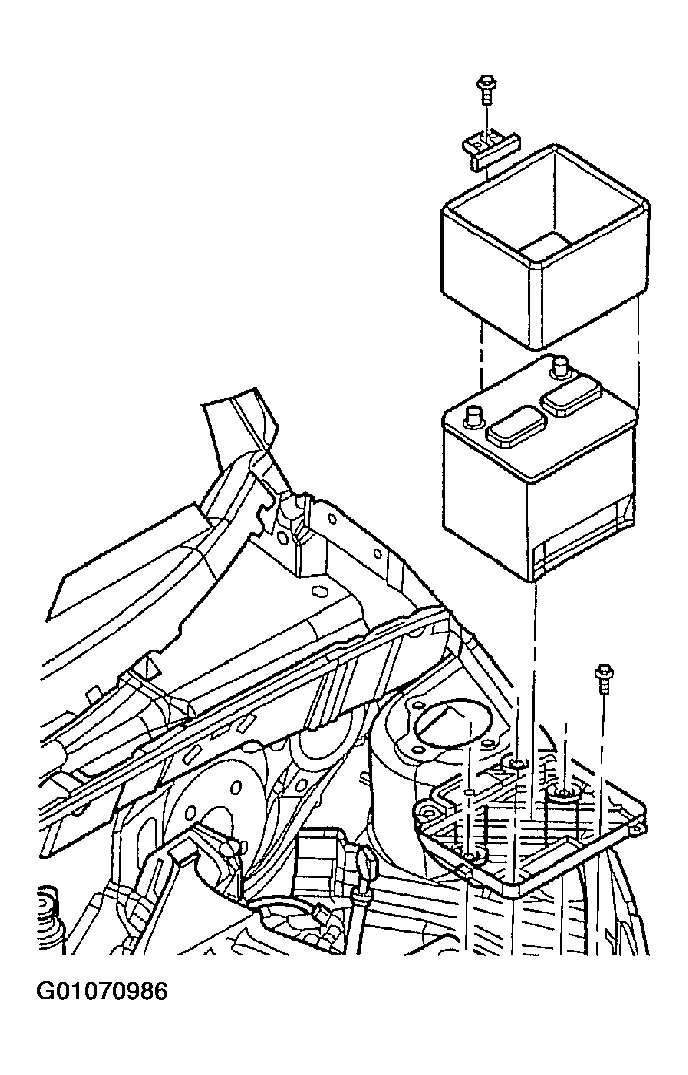

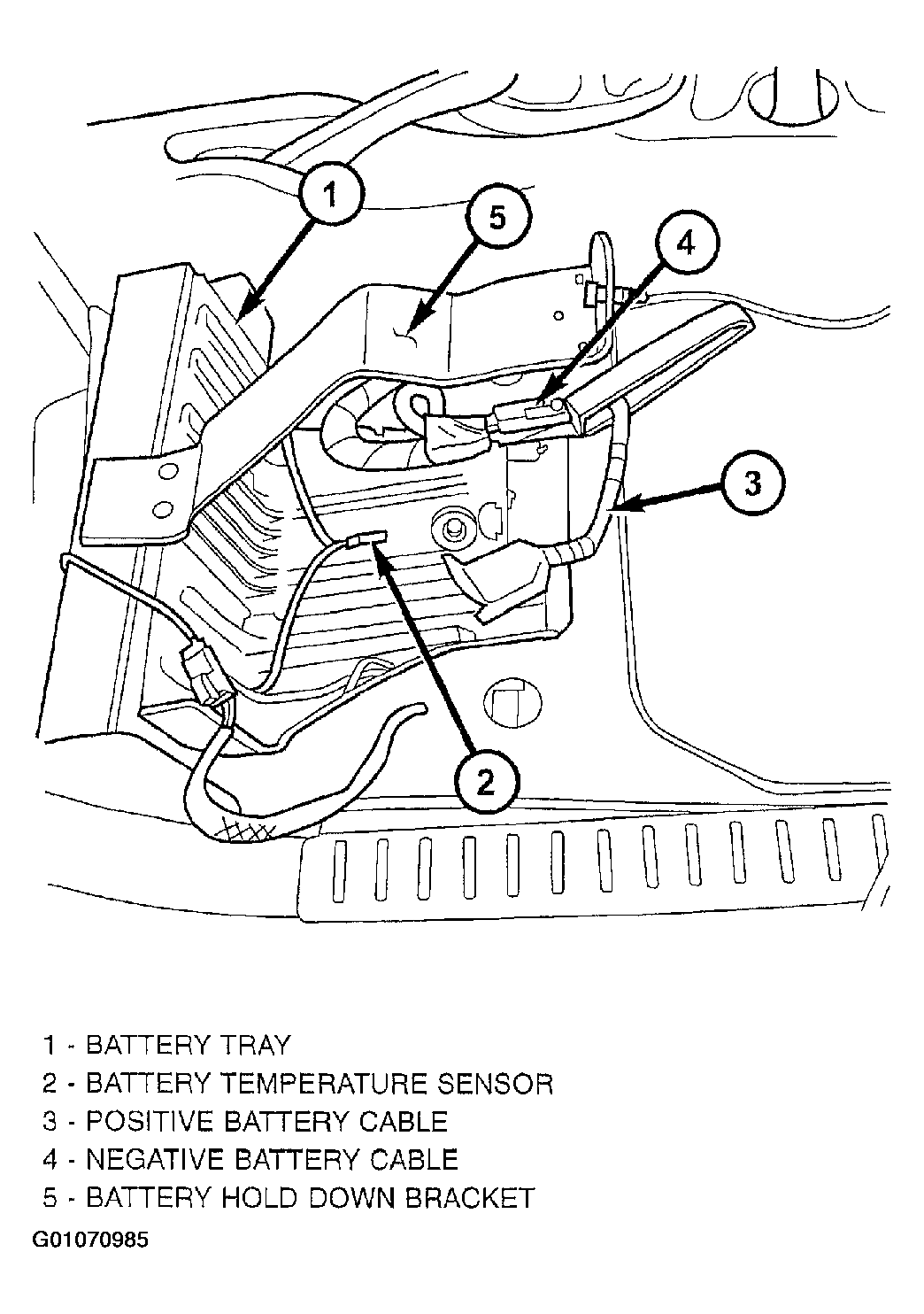

The battery is placed and secured in a plastic battery tray. On gasoline engine equipped vehicles, the battery tray is located in the left front side of the vehicle, next to the left strut tower (Fig 1 ). On diesel engine equipped vehicles, the battery tray is located in the passenger compartment, under the passenger front seat (Figure ). Refer to BATTERY HOLD DOWN for more information on hold down hardware.
