Data Link Connector End View

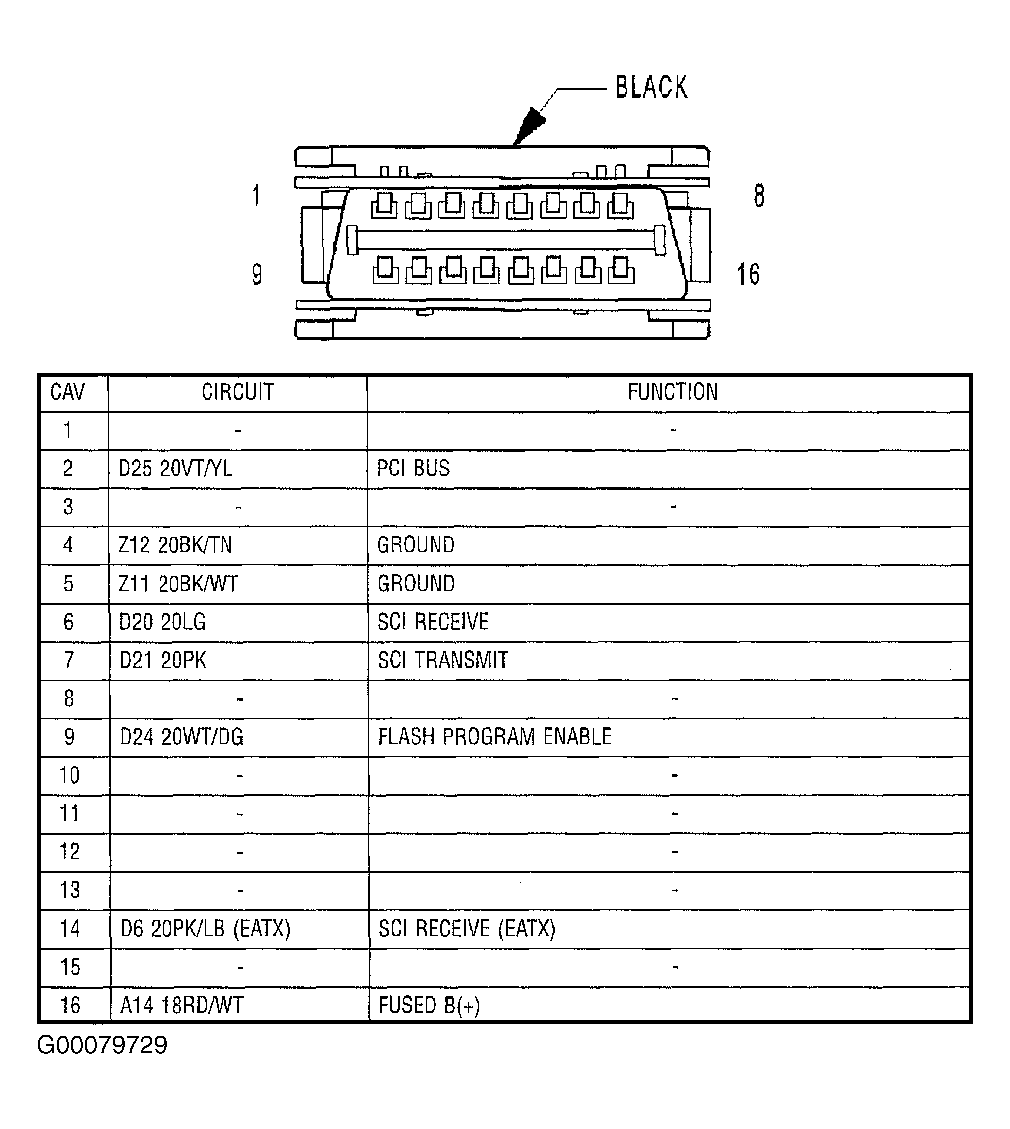

Fig 1: Identifying Data Link Connector Terminals
G00079729Courtesy of DAIMLERCHRYSLER CORPORATION
