Ignition Coil Harness Connector End View

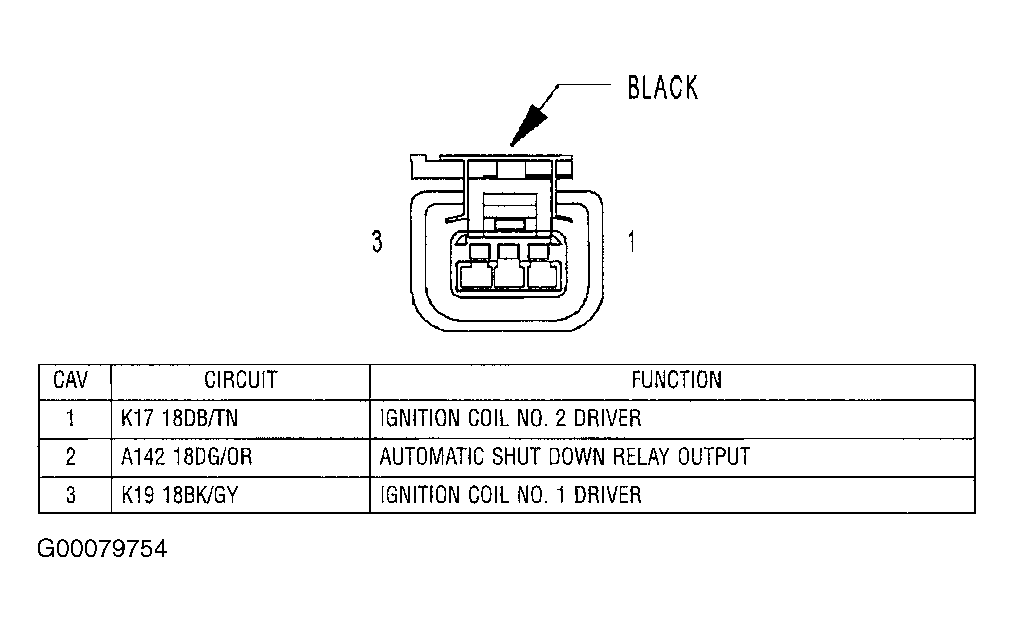

Fig 1: Identifying Ignition Coil Harness Connector Terminals
G00079754Courtesy of DAIMLERCHRYSLER CORPORATION
