Knock Sensor Harness Connector End View

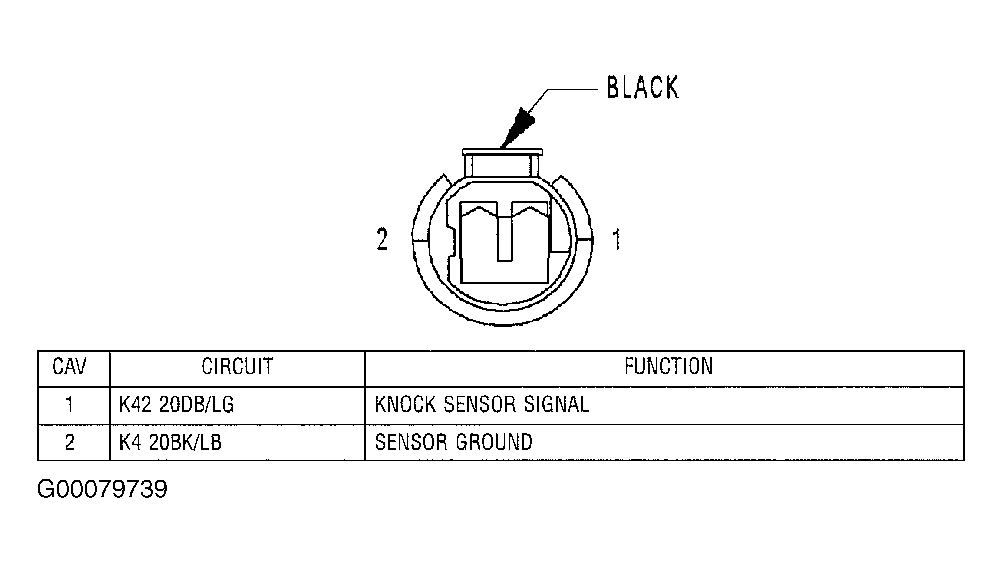

Fig 1: Identifying Knock Sensor Harness Connector Terminals
G00079739Courtesy of DAIMLERCHRYSLER CORPORATION
