MAP Sensor Harness Connector End View

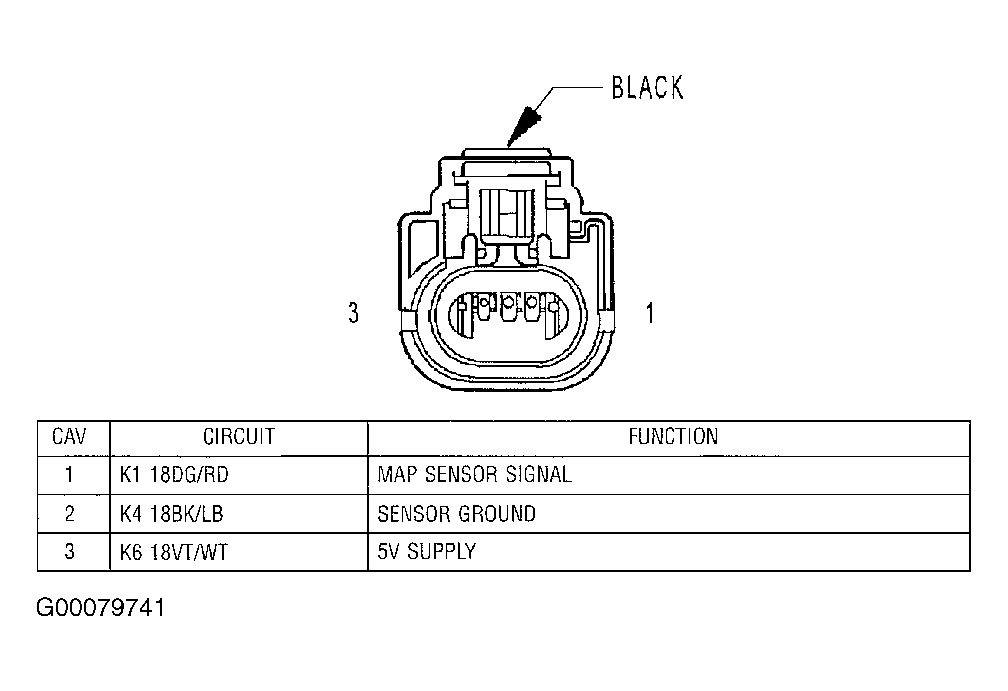

Fig 1: Identifying MAP Sensor Harness Connector Terminals
G00079741Courtesy of DAIMLERCHRYSLER CORPORATION
