O2 Sensor Harness Connector End View

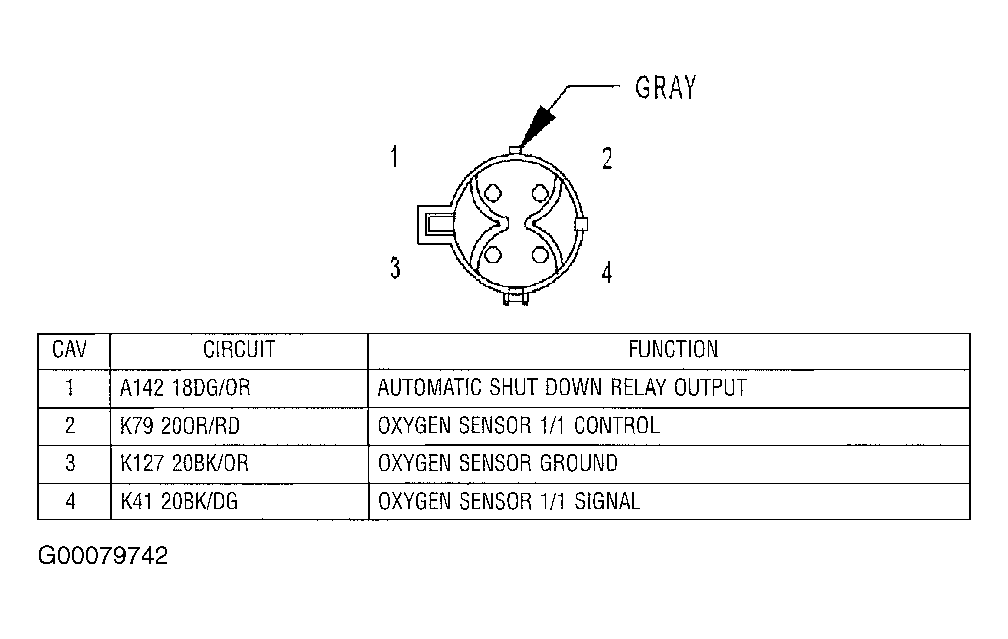

Fig 1: Identifying 1/1 O2 Sensor Harness Connector Terminals
G00079742Courtesy of DAIMLERCHRYSLER CORPORATION

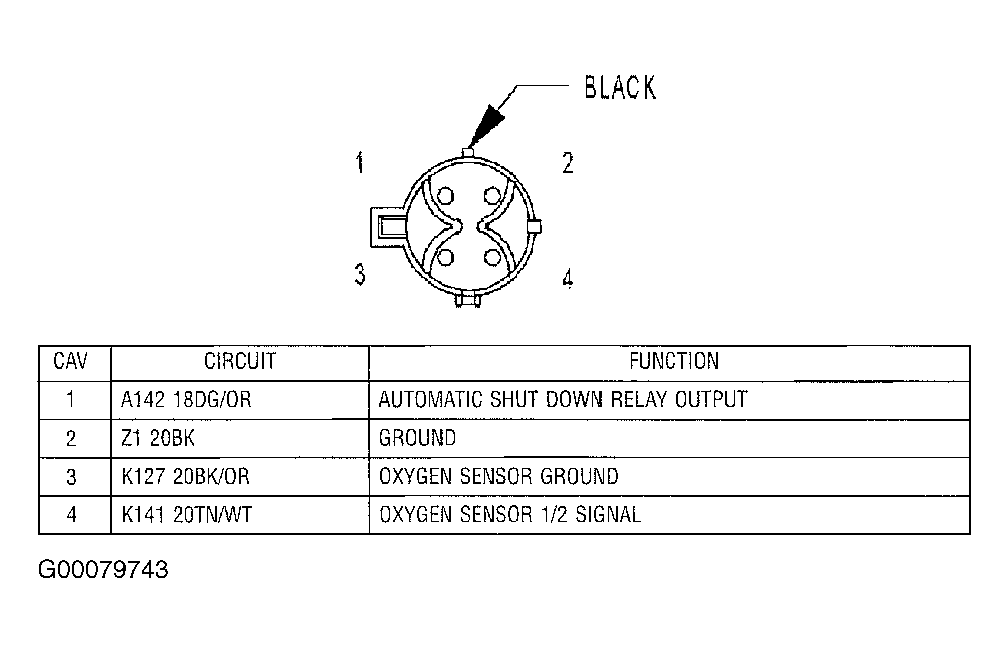

Fig 2: Identifying 1/2 O2 Sensor Harness Connector Terminals
G00079743Courtesy of DAIMLERCHRYSLER CORPORATION
