Passenger Door Ajar Circuit Open

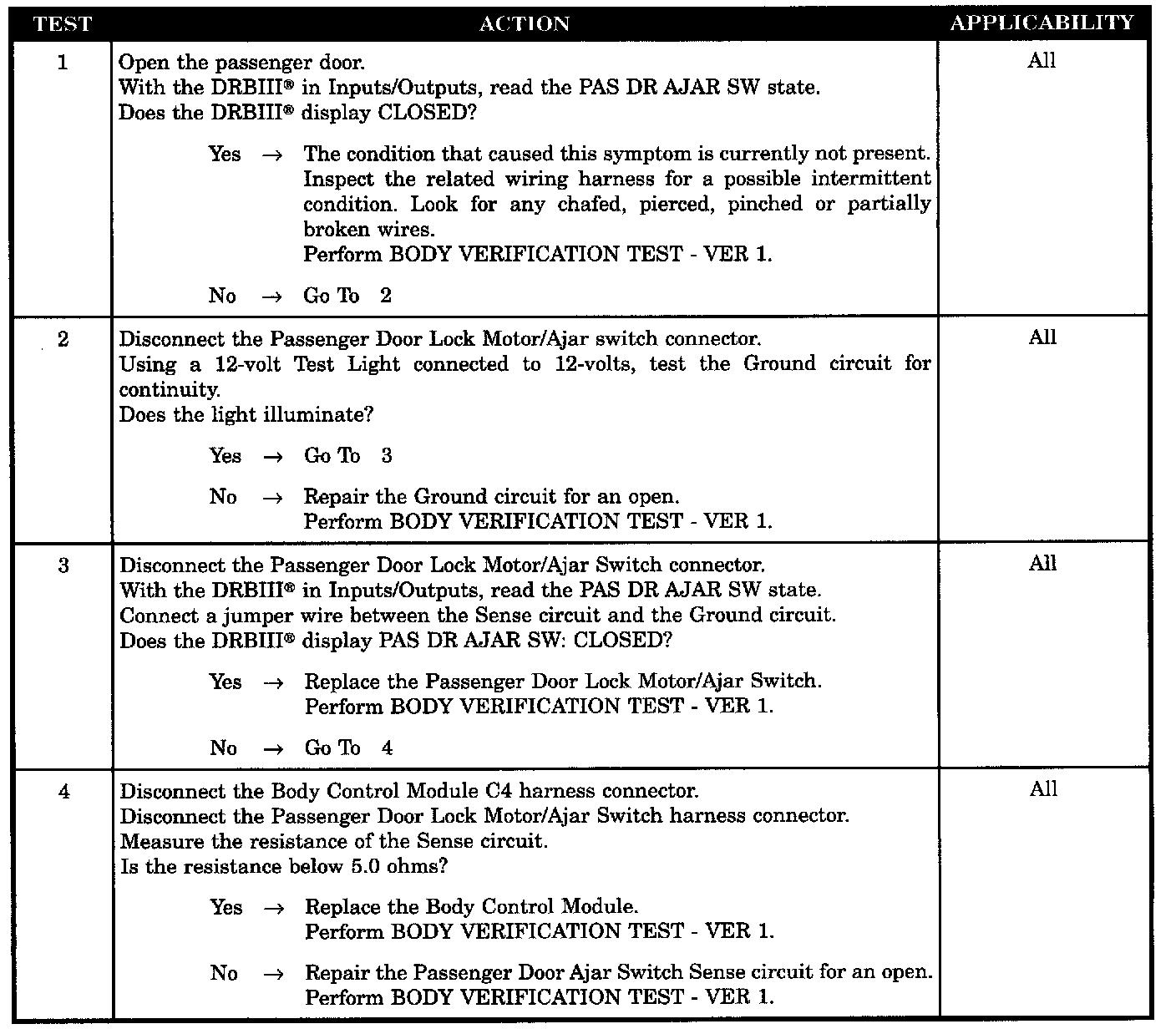

Test 1 - 4:






SYMPTOM
PASSENGER DOOR AJAR CIRCUIT OPEN

POSSIBLE CAUSES
- Intermittent condition
- Passenger door ajar switch ground circuit open
- Passenger door lock motor/ajar switch
- Passenger door ajar switch sense circuit open
- Body control module internal malfunction
