Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

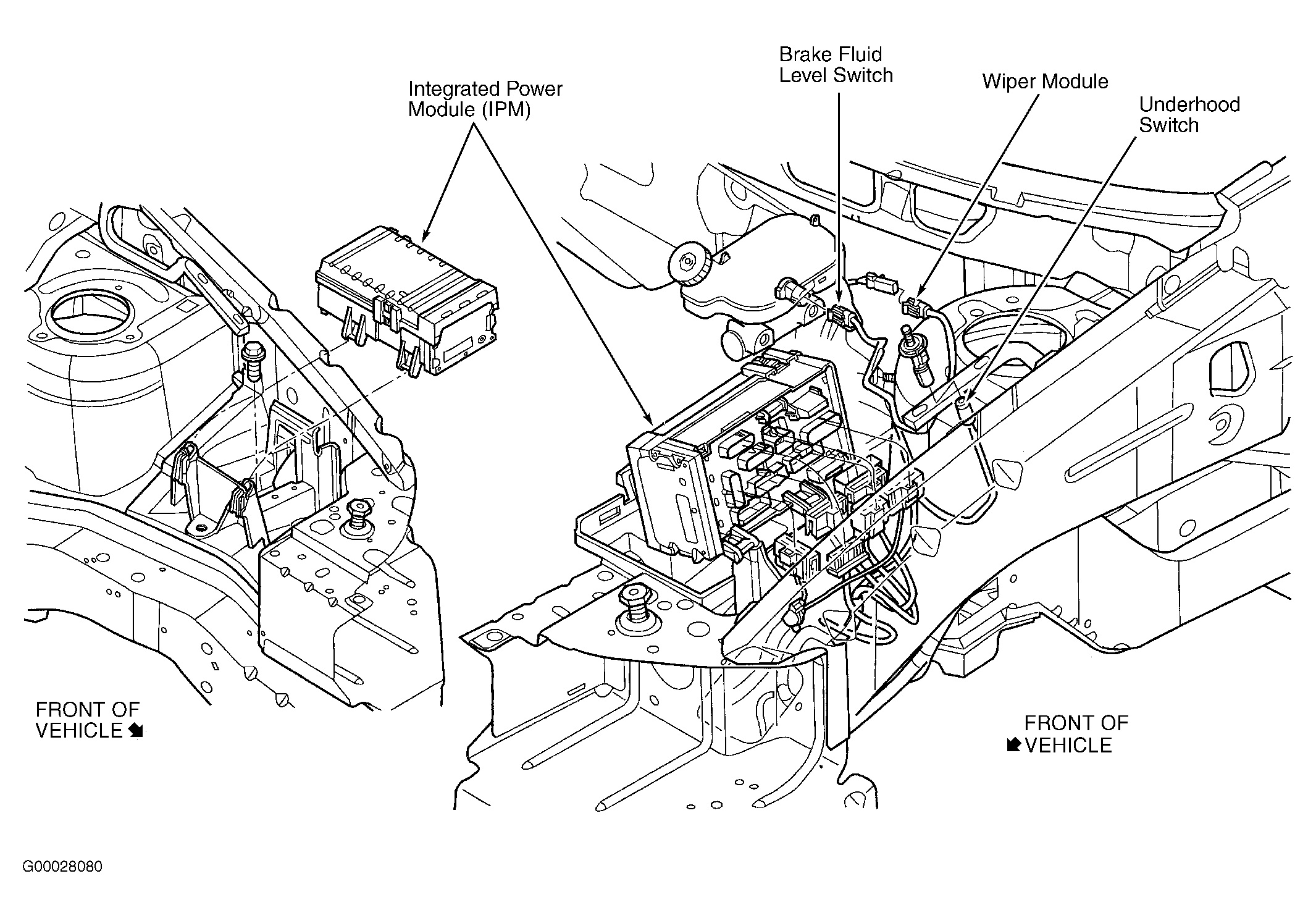

| Integrated Power Module (IPM) | Left side of engine compartment. See Figure. |
| Power Seat Circuit Breaker | Under driver's seat. |
| Power Window Circuit Breaker | Left kick panel. |
