Component Locations

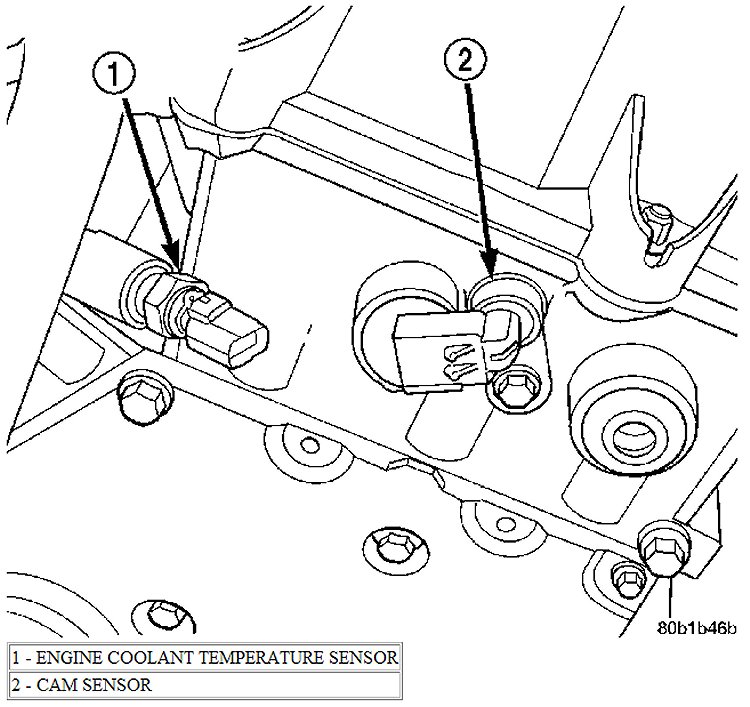

Camshaft Position Sensor - 2.7L:

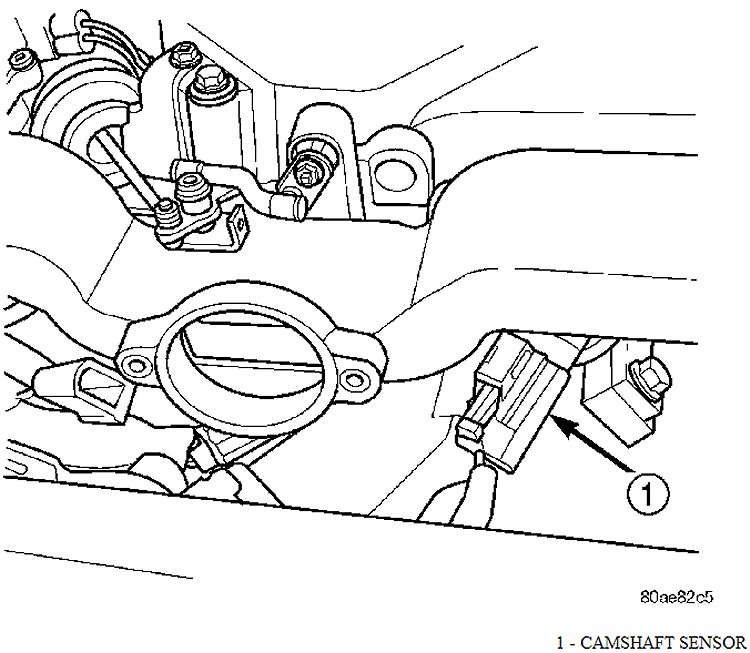

Camshaft Position Sensor - 3.5L:






The camshaft position sensor is mounted in the front of the head on 2.7L (Camshaft Position Sensor - 2.7L) or belt cover on the 3.5L (Camshaft Position Sensor - 3.5L).
