Body Side Inline Connector End View (C305)

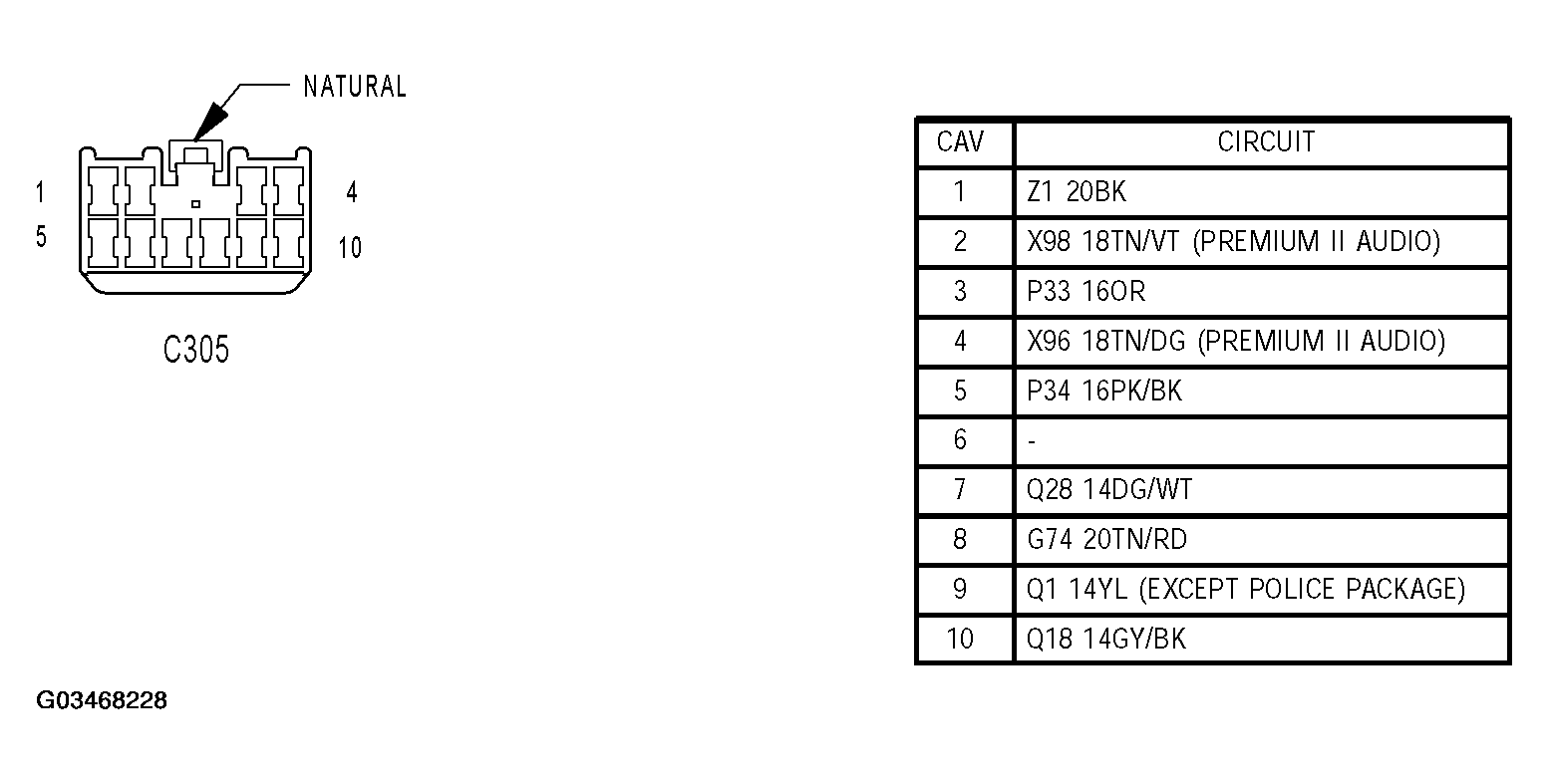

Fig 1: Body Side Inline Connector End View (C305)
G03468228Courtesy of DAIMLERCHRYSLER CORP.
