Power Distribution Center

For power distribution center location, see Fig 1.

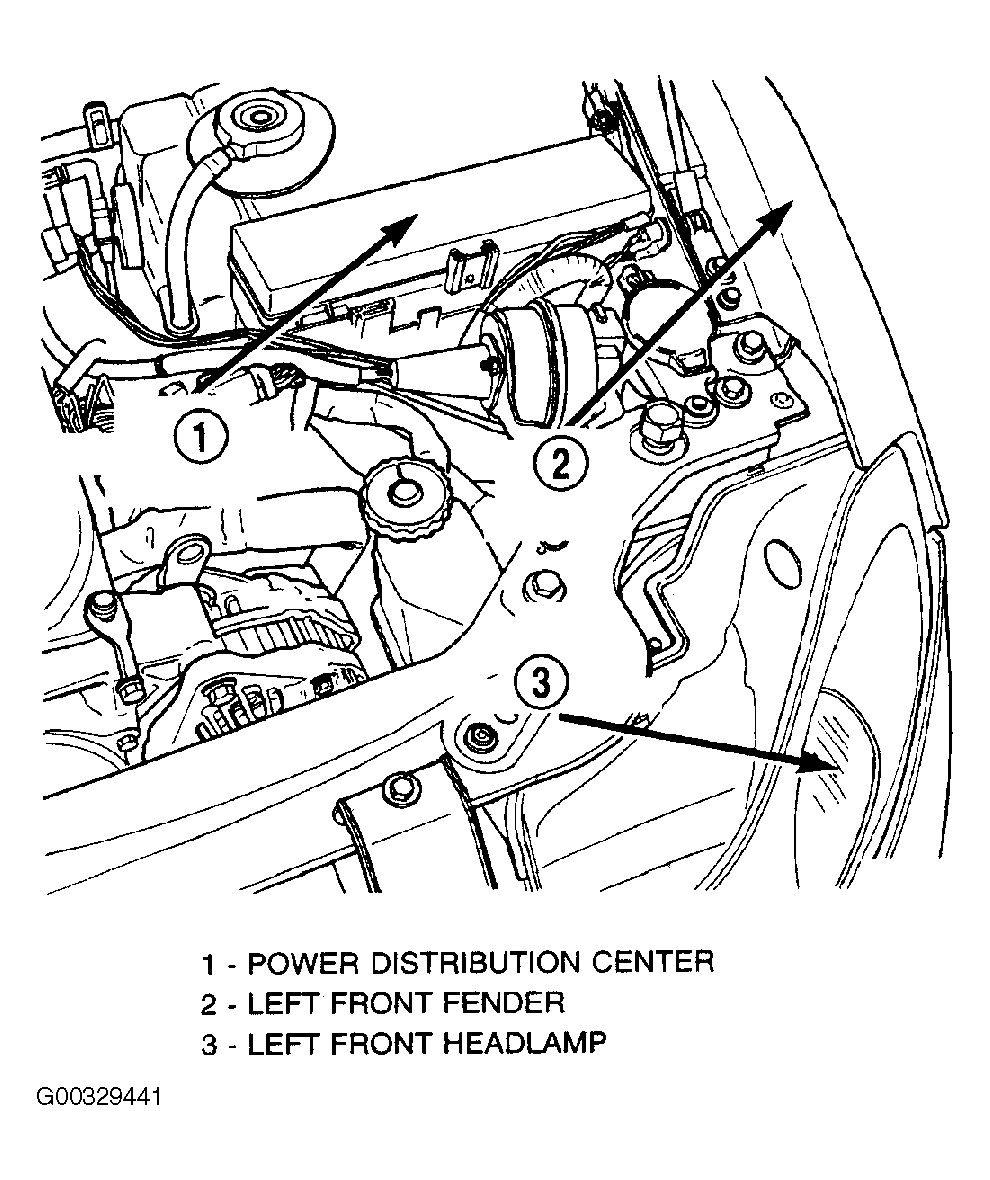

Fig 1: Locating Power Distribution Center
G00329441Courtesy of CHRYSLER CORP.
Fig 2: Identifying Power Distribution Center Components
G00329445Courtesy of CHRYSLER CORP.

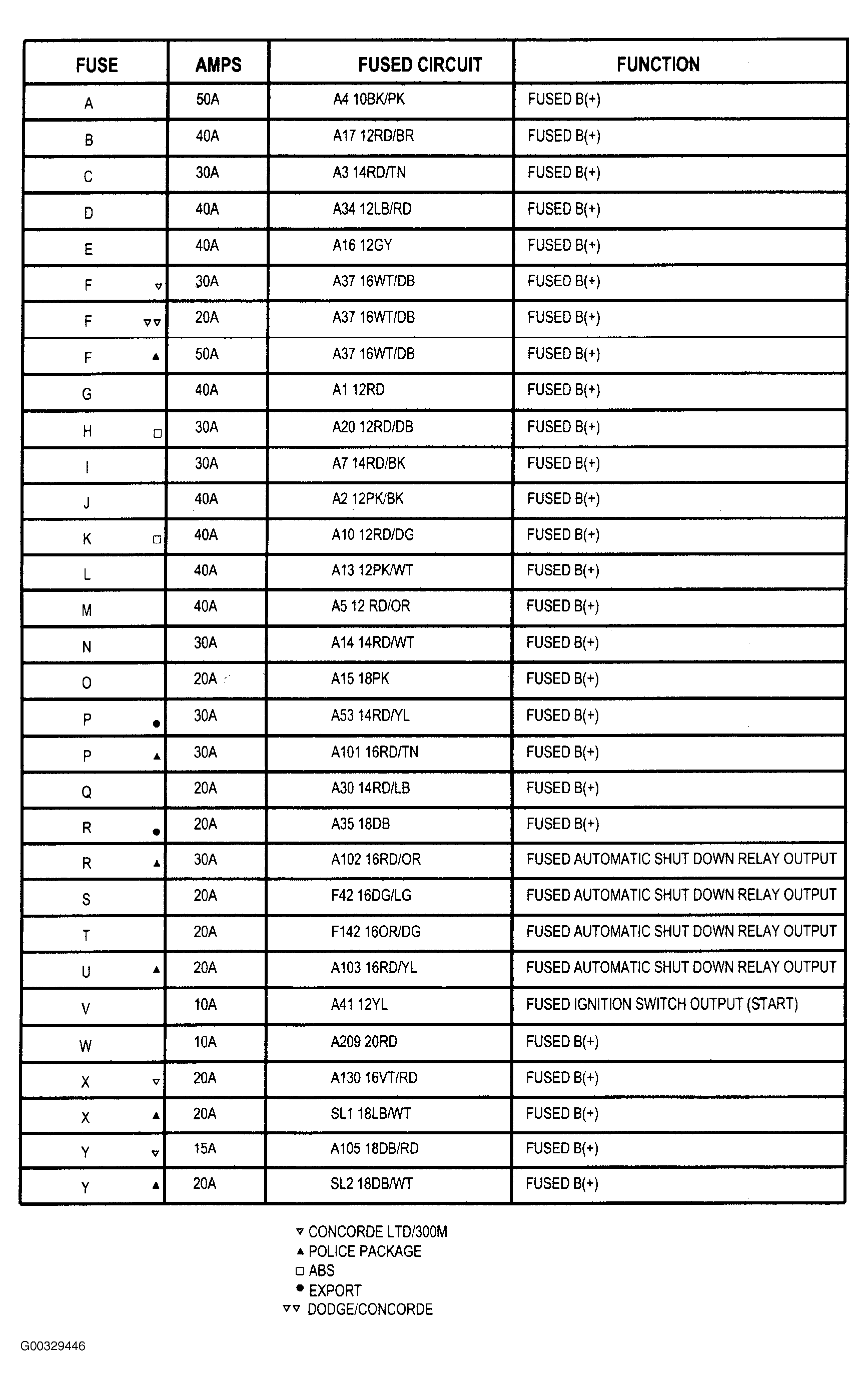

Fig 3: Power Distribution Center Legend
G00329446Courtesy of CHRYSLER CORP.
