Vibration Damper: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install crankshaft damper using Special Tools C-4685-C1 (5.9 in.) Bolt, with Nut and Thrust Bearing from 6792, and 6792-1 Installer (Fig 1). Install center bolt and tighten to 115 N.m (85 ft. lbs.) (Figure).

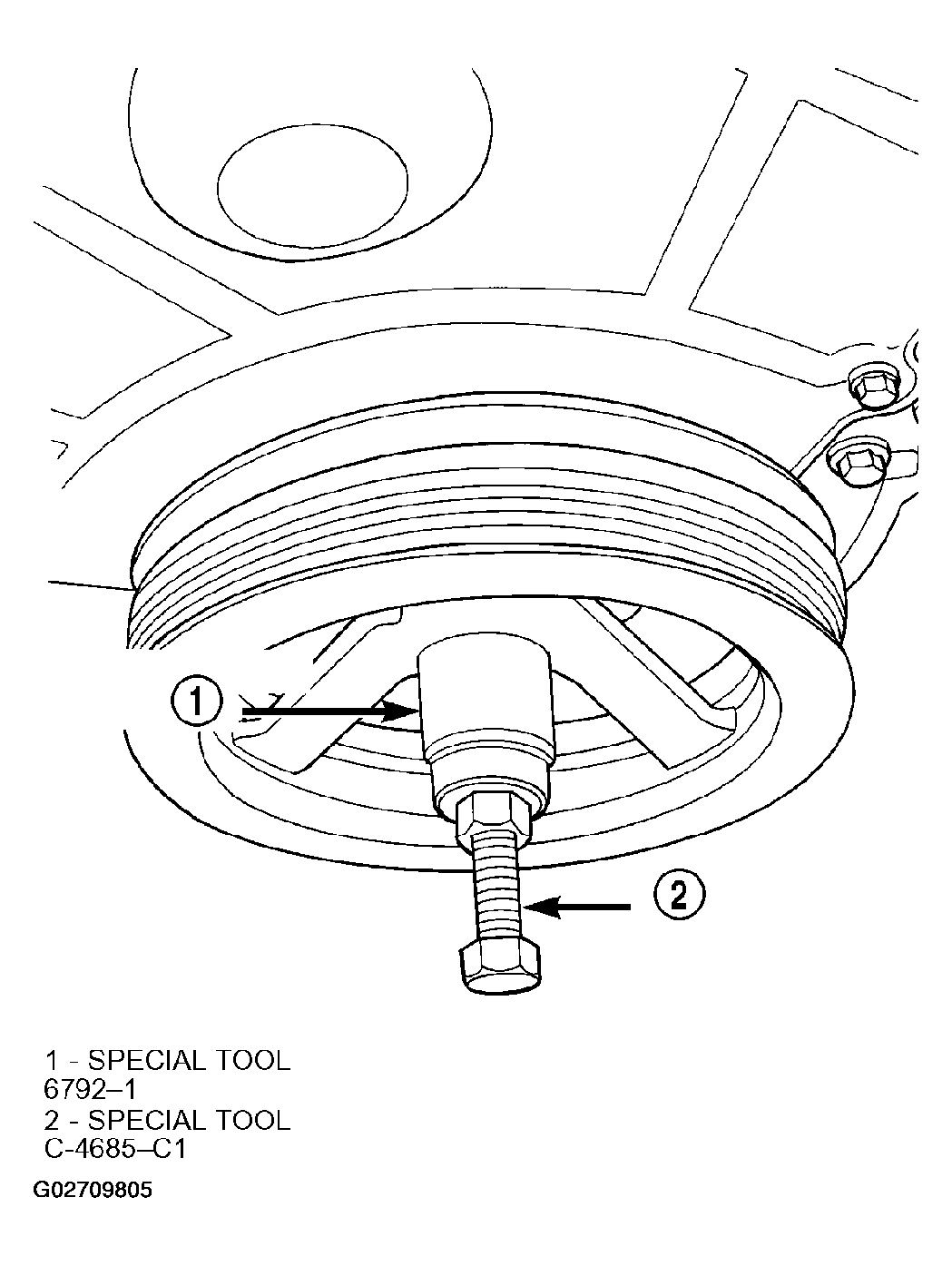

    Fig 1: Installing Crankshaft Damper
    G02709805Courtesy of DAIMLERCHRYSLER CORP.
  2. Install accessory drive belts. (Refer to ACCESSORY DRIVE ).
  3. Install radiator fan. (Refer to RADIATOR FAN ).
  4. Install upper radiator crossmember.
  5. Connect negative cable.
