Installation - 1.6L

The PCM engine control strategy prevents reduced idle speeds until after the engine operates for 320 km (200 miles). If the PCM is replaced after 320 km (200 miles) of usage, update the mileage and vehicle identification number (VIN) in the new PCM. Use the DRBIII(R) scan tool to change the millage and VIN in the PCM. If this step is not done a Diagnostic Trouble Code (DTC) may be set. Refer to the appropriate Powertrain Diagnostic Manual and the DRBIII(R) scan tool.

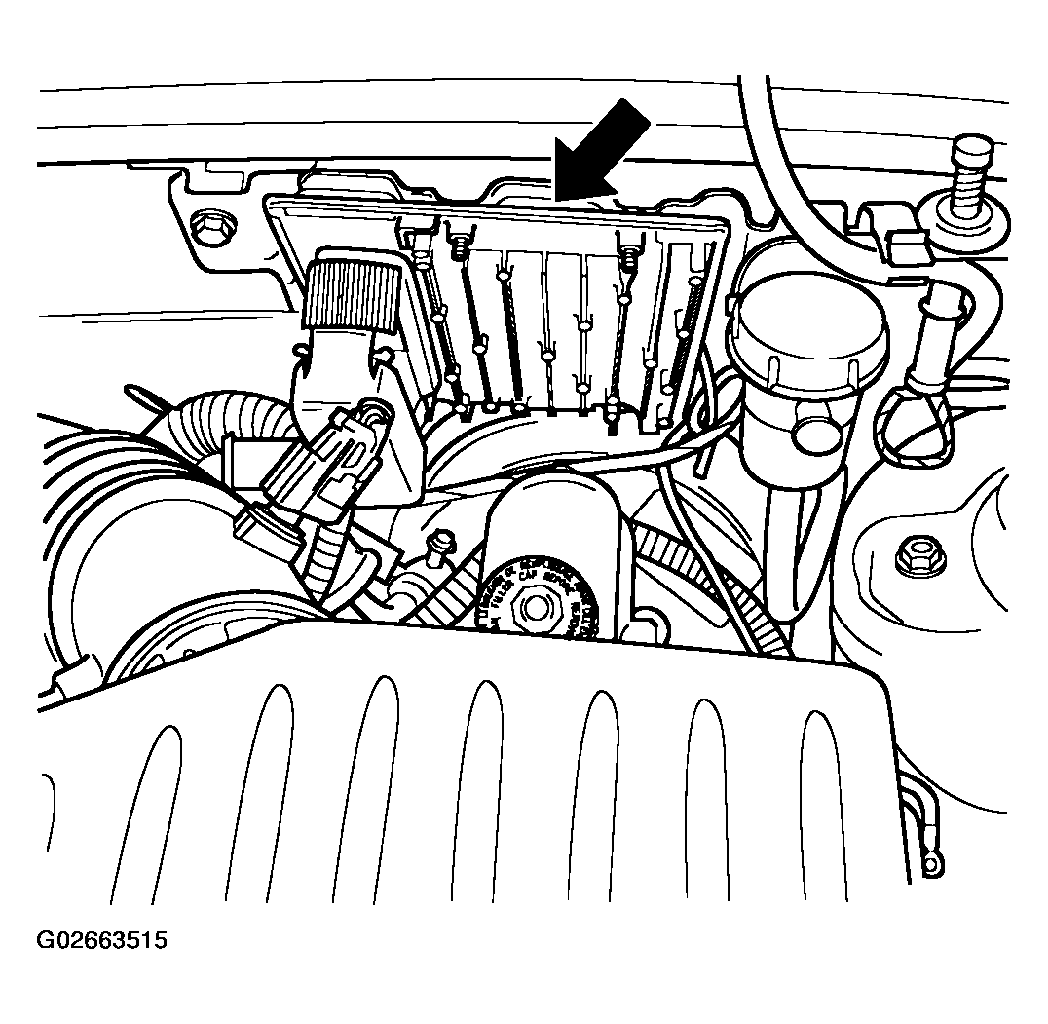

The PCM attaches to a bracket which attaches to the dash panel welded bracket (Fig. Figure ).

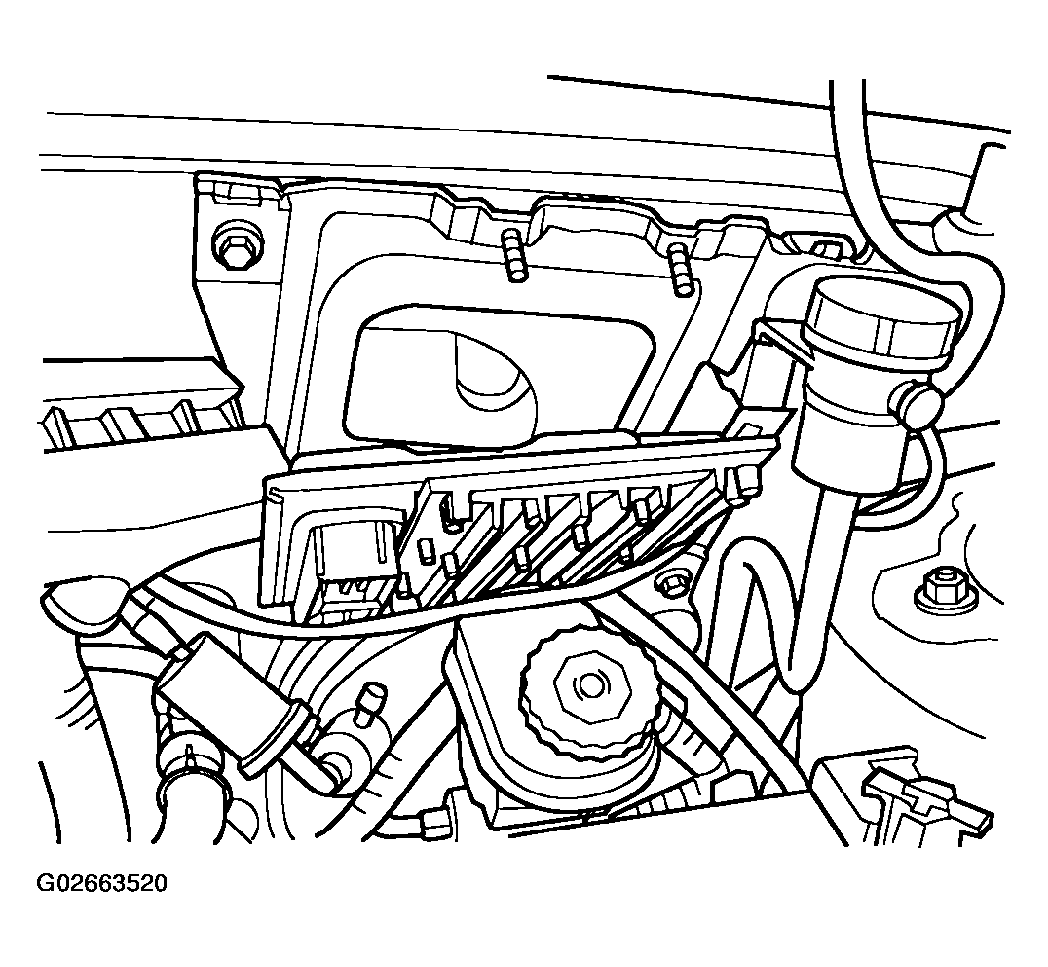

1. Install PCM. Tighten mounting nuts to 10.7 N.m (95 ins. lbs.) (Fig. Figure ).

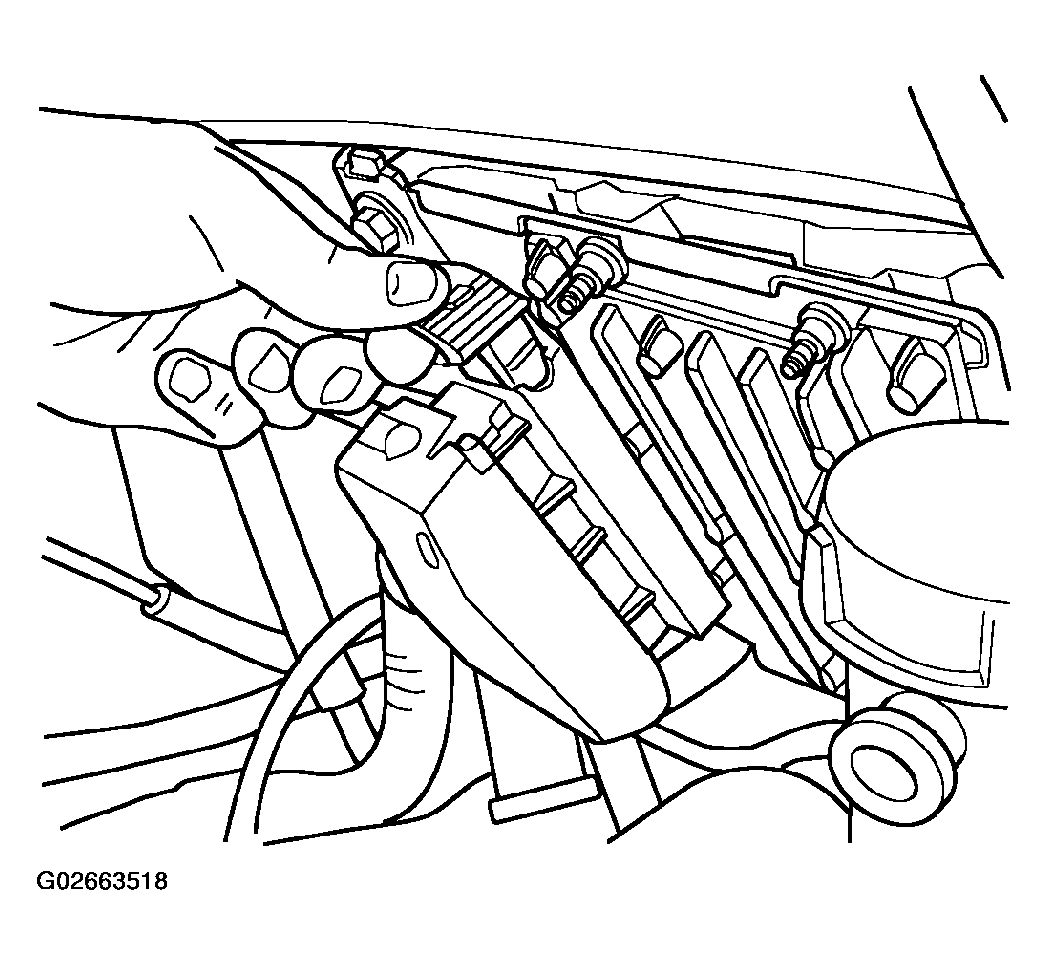

2. Attach electrical connectors to PCM (Fig. Figure ).

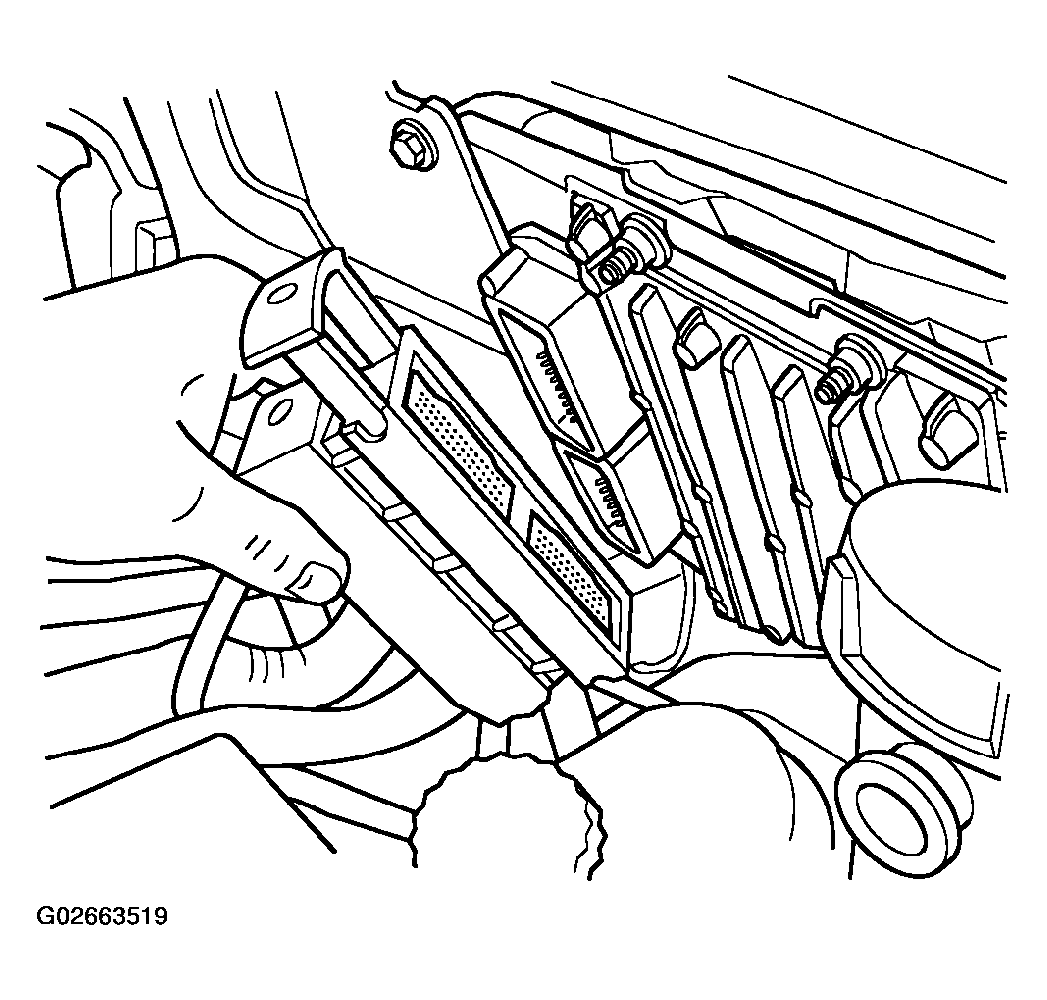

3. Lock the PCM connector (Fig. Figure ).

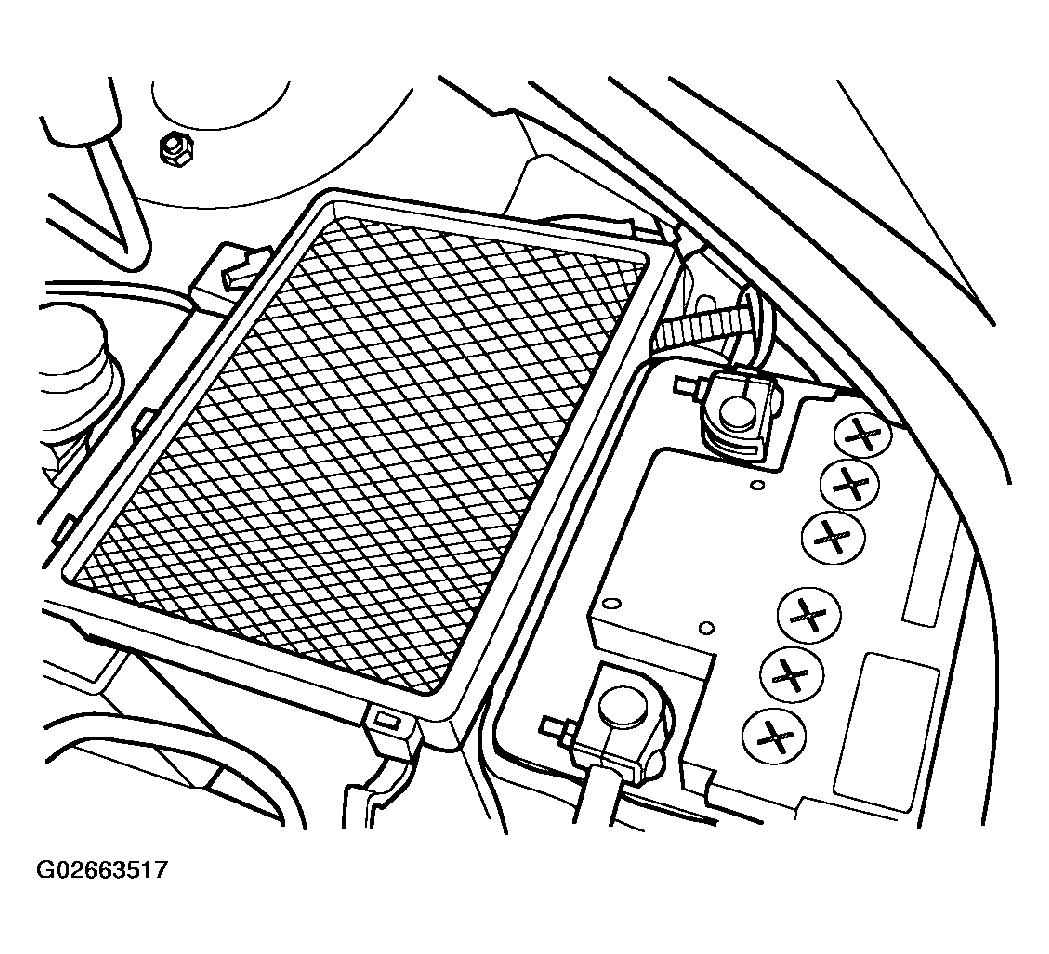

4. Install the negative battery cable (Fig. Figure ).

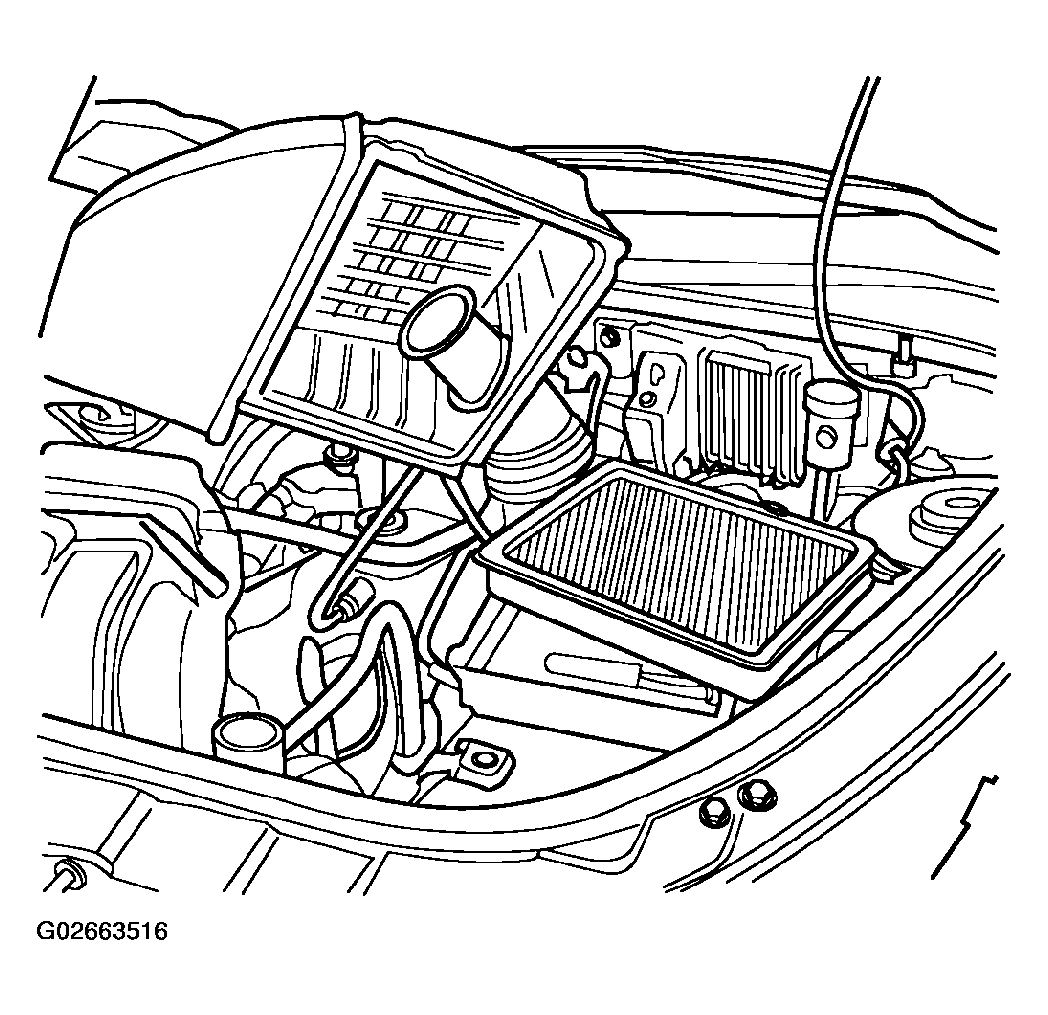

5. Install the air cleaner lid, connect the inlet air temperature sensor and makeup air hose (Fig. Figure ).
