Shift Schedules

As mentioned earlier, the TCM has programming that allows it to select a variety of shift schedules. Shift schedule selection is dependent on the following:

• Shift lever position
• Throttle position
• Engine load
• Fluid temperature
• Software level

As driving conditions change, the TCM appropriately adjusts the shift schedule. Refer to the following chart to determine the appropriate operation expected, depending on driving conditions.

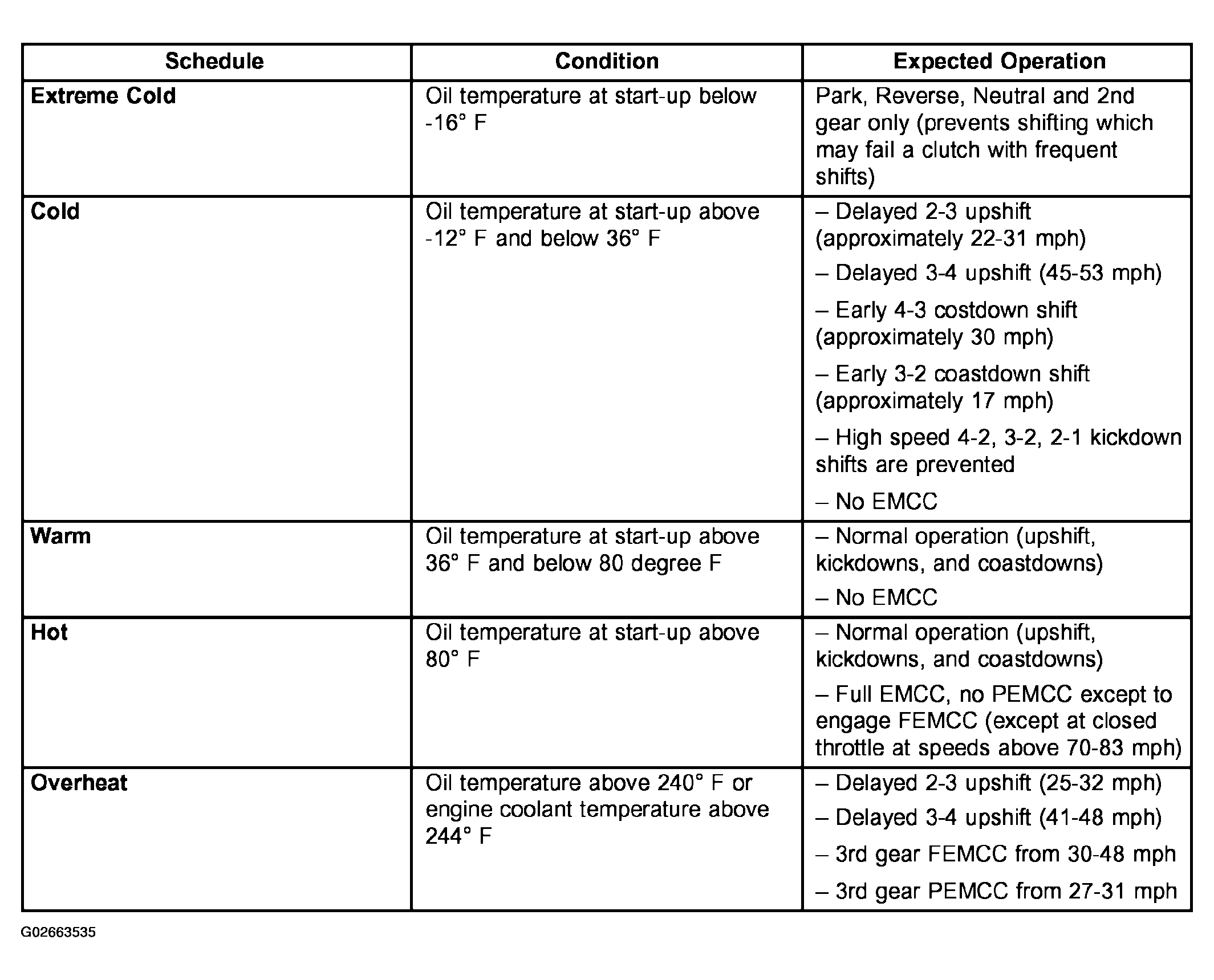

Fig 1: Shift Schedule Adjusting Conditions Chart (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.

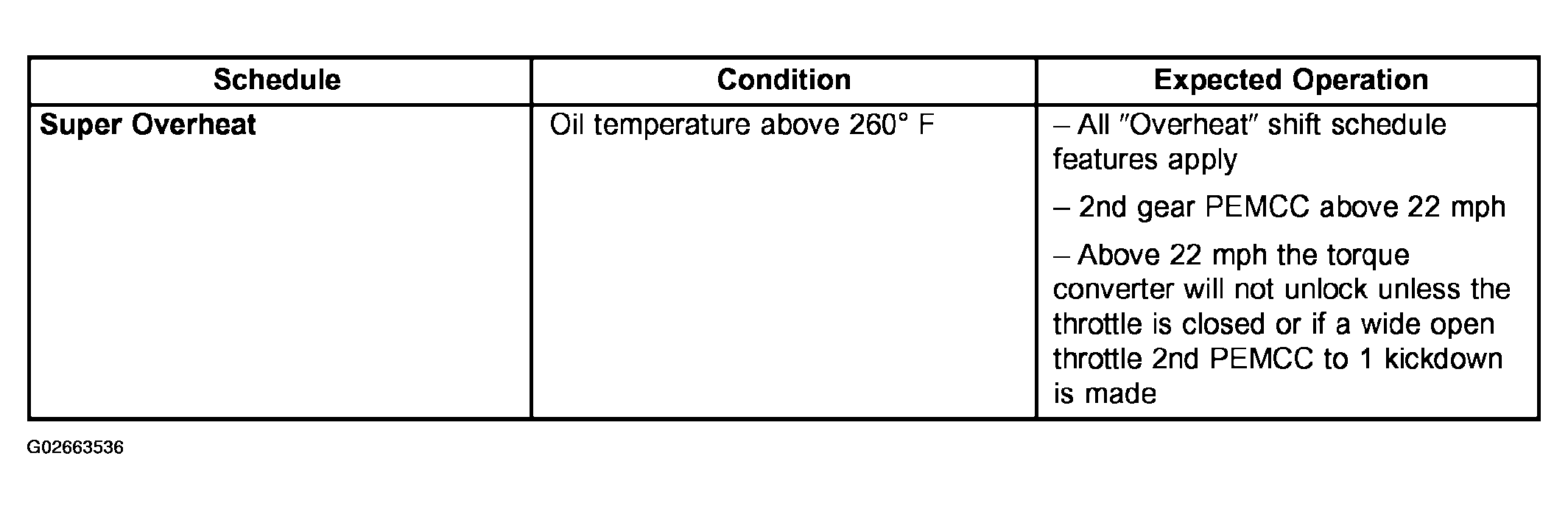

Fig 2: Shift Schedule Adjusting Conditions Chart (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.
