ECT Sensor Harness Connector End View

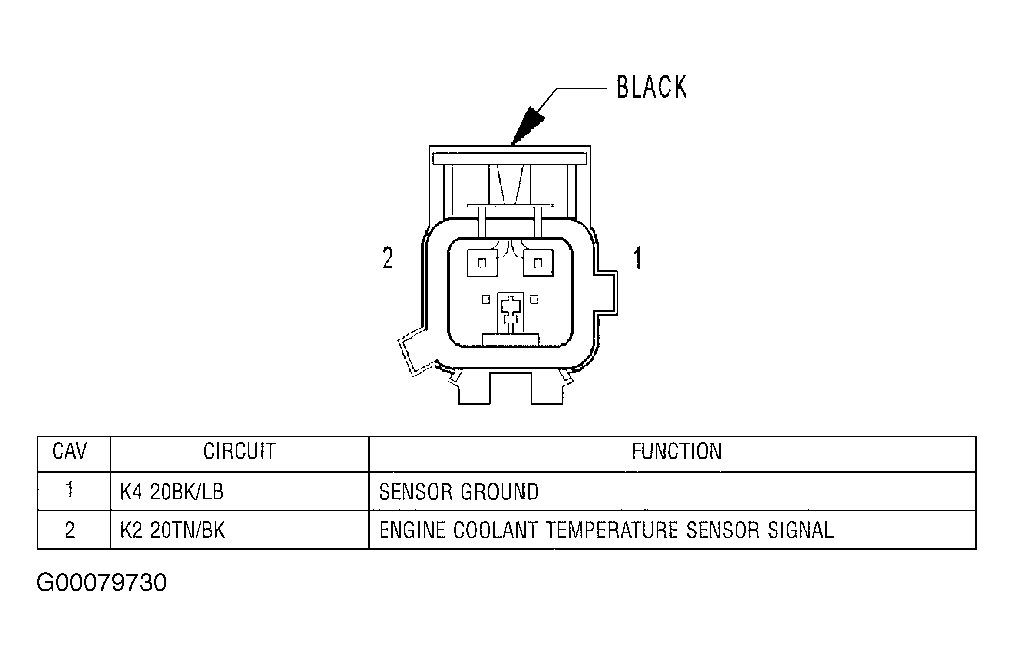

Fig 1: Identifying ECT Sensor Harness Connector Terminals
G00079730Courtesy of DAIMLERCHRYSLER CORPORATION
