Transmission Control Module: Installation

NOTE: If the transmission control module (TCM) is being replaced with a new or replacement unit, the Pinion Factor and Quick Learn procedures must be performed. (Refer to STANDARD PROCEDURE - PINION FACTOR SETTING  ) (Refer to STANDARD PROCEDURE - QUICK LEARN PROCEDURE  )
  1. Install TCM to mounting bracket and tighten four screws to 11 N.m (100 in. lbs.).

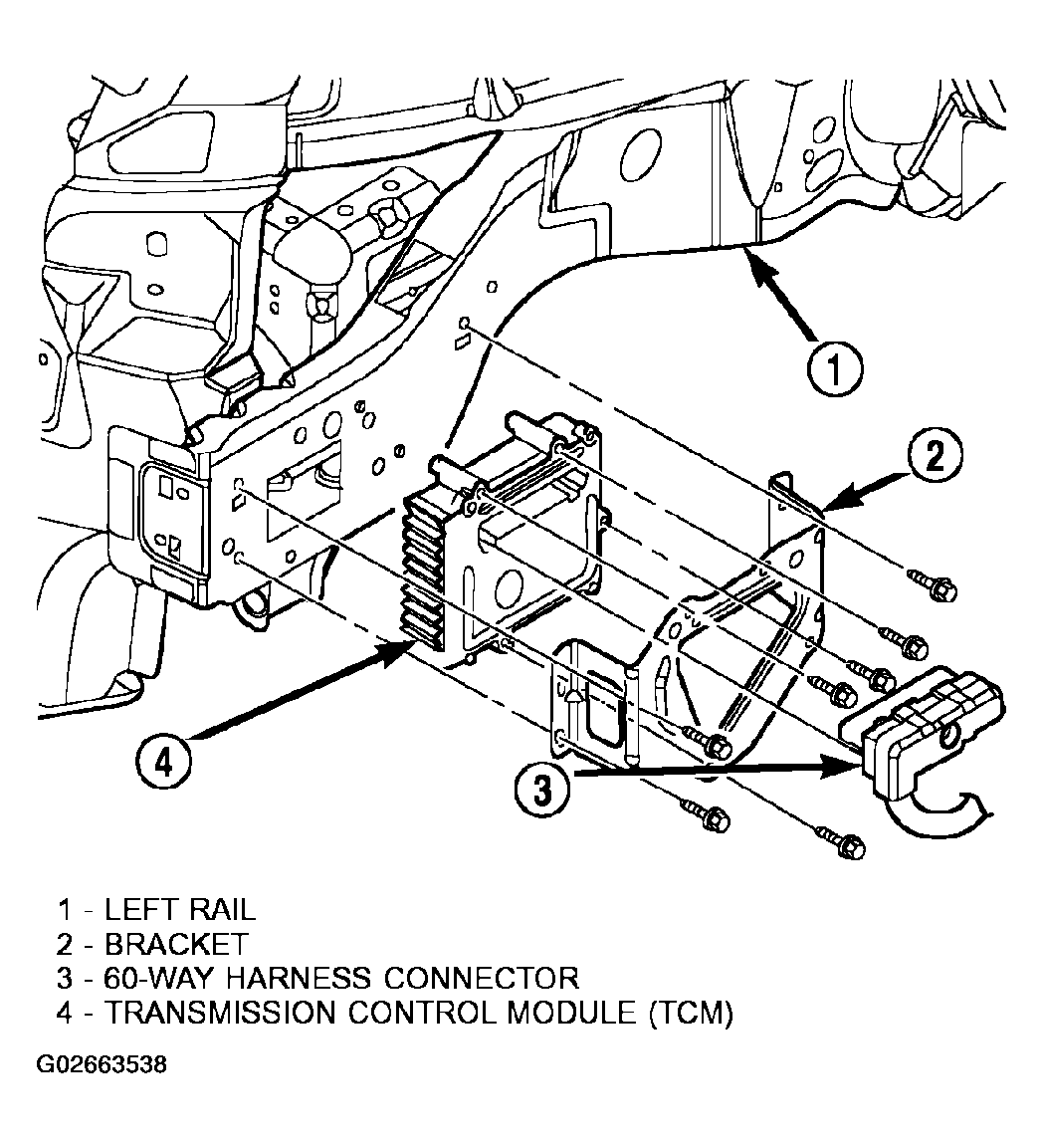

  2. Install TCM/bracket assembly and fasten with three mounting screws (Fig. Figure ). Torque screws to 11 N.m (100 in. lbs.) torque.
    3. CAUTION: TCM 60-way connector must be torqued within 30-40 in. lbs. Improper torque may result in connector damage, or connector sealing problems.
  3. Connect the TCM 60-way connector and torque to 4 N.m (35 in. lbs.).
  4. Install wheel house splash shield.

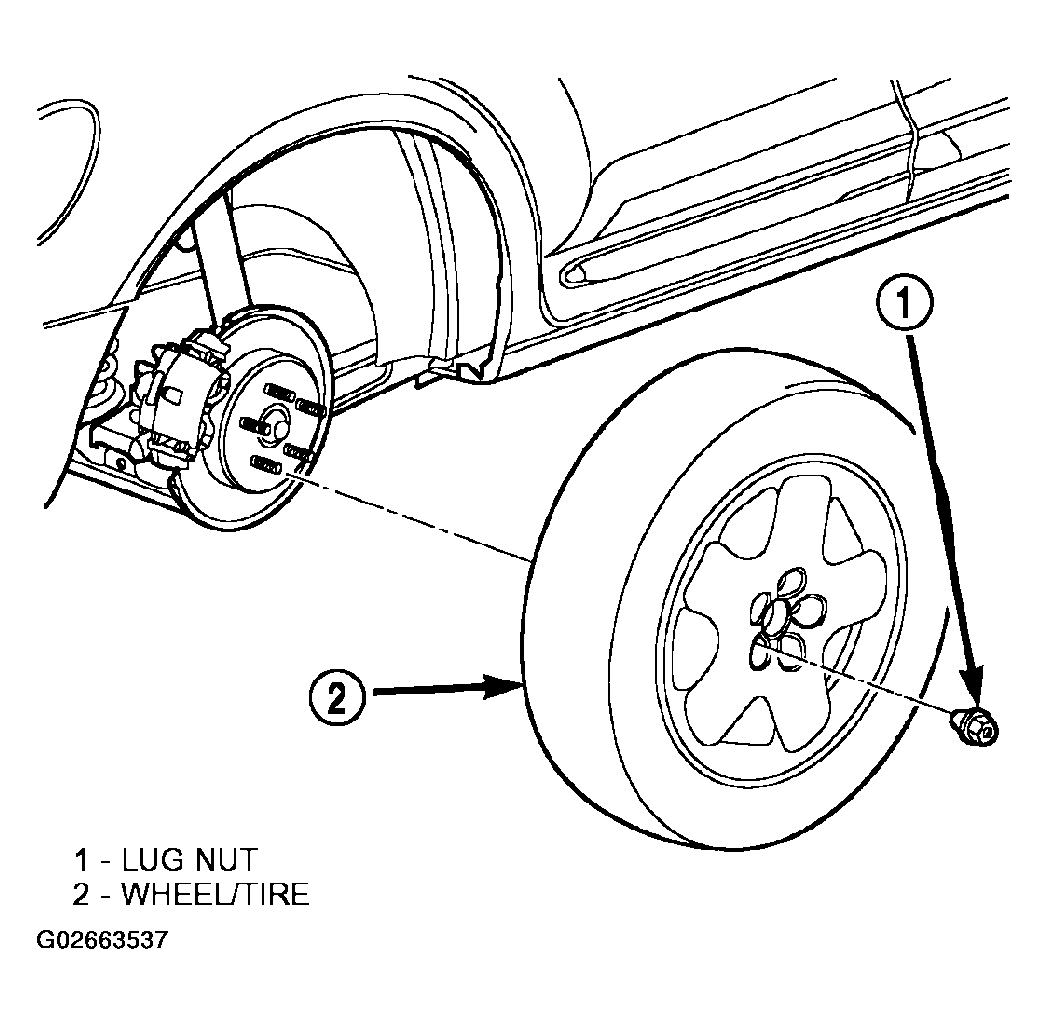

  5. Install left front wheel/tire assembly (Fig. Figure ). Torque lug nuts to 135 N.m (100 ft. lbs.) torque.
  6. Lower vehicle.
  7. Connect the battery negative cable.
