Satellite Receiver Module: Removal

  1. Disconnect and isolate the battery negative cable.
  2. Remove the left rear quarter trim panel (Refer to BODY/INTERIOR/LEFT QUARTER TRIM PANEL - REMOVAL ).
  3. Remove the mounting bracket fasteners (Fig 1 ).

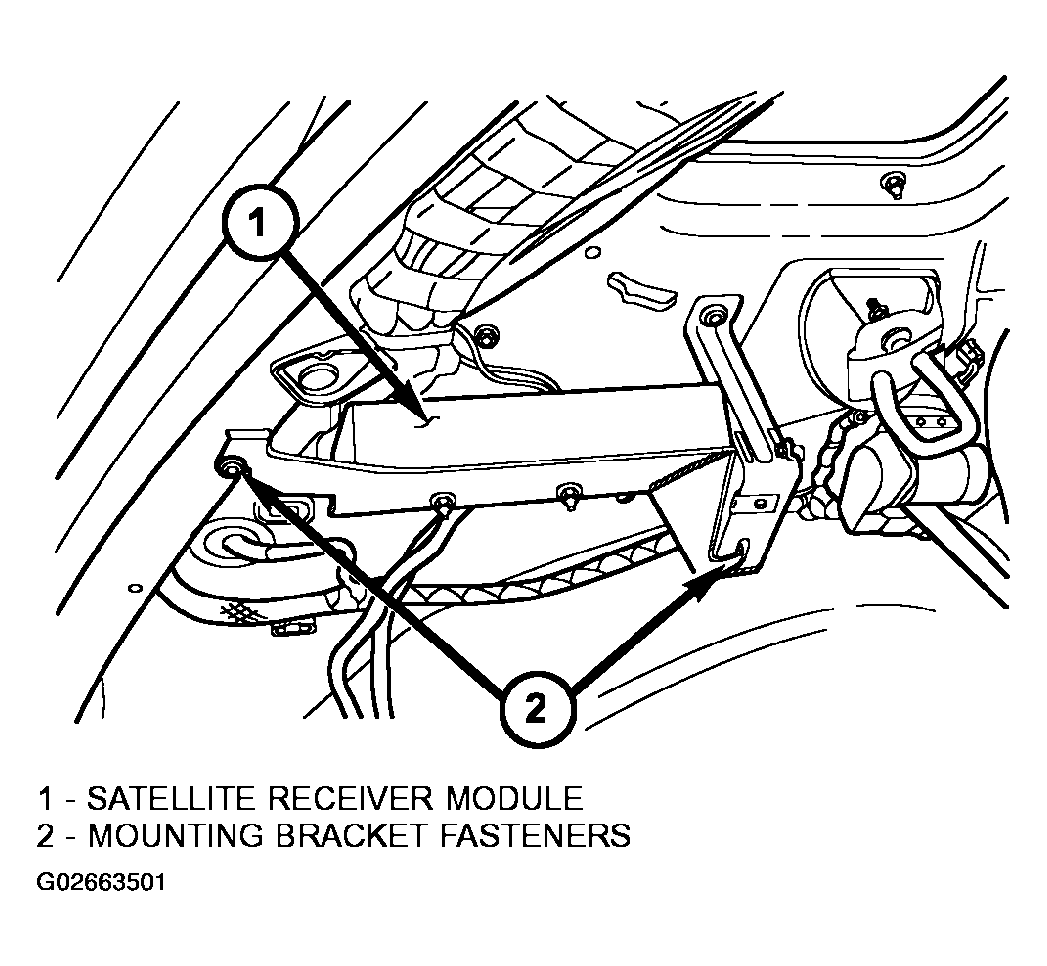

    Fig 1: Identifying Satellite Receiver Module
    G02663501Courtesy of DAIMLERCHRYSLER CORP.
  4. Disconnect the wire harness connectors.
  5. Remove the module from the mounting bracket.
