Identifying Overhead Console Module - Black 12 Way Connector End View

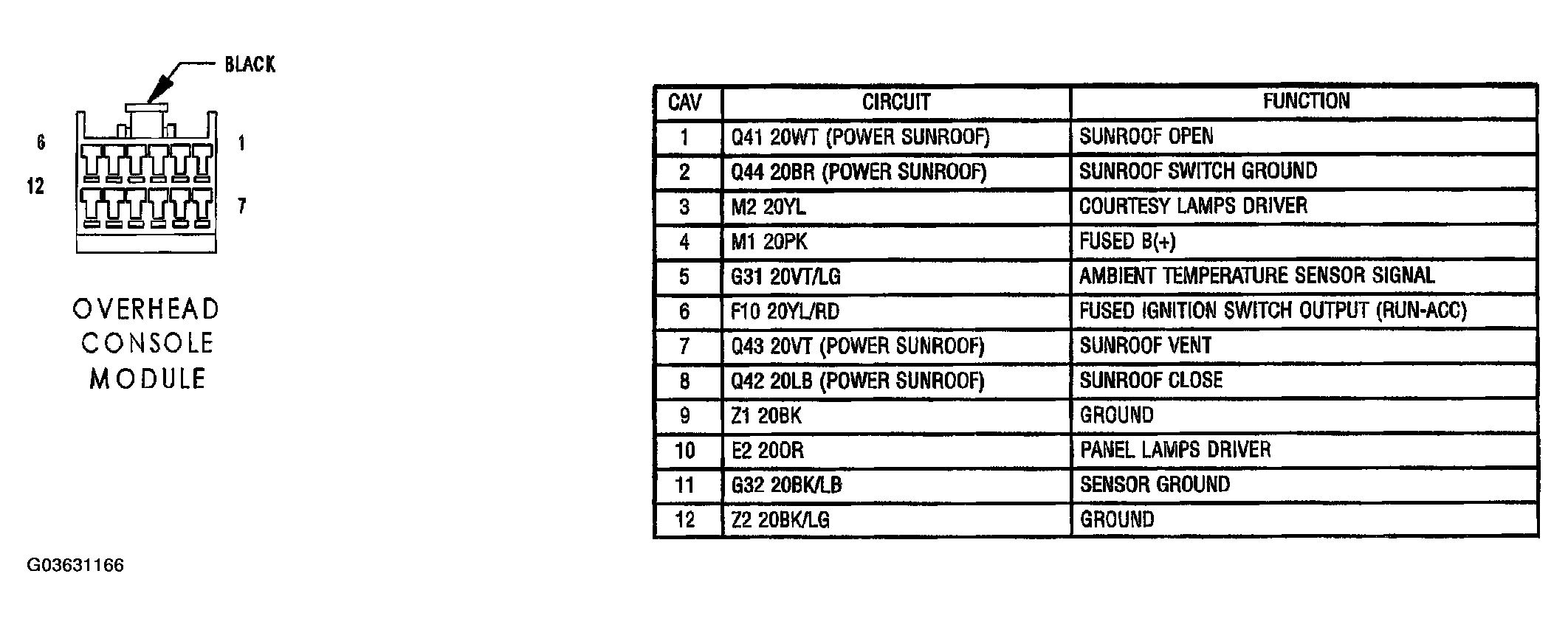

Fig 1: Identifying Overhead Console Module - Black 12 Way Connector End View
G03631166Courtesy of DAIMLERCHRYSLER CORP.
