All Locks Inoperative From One Lock Switch

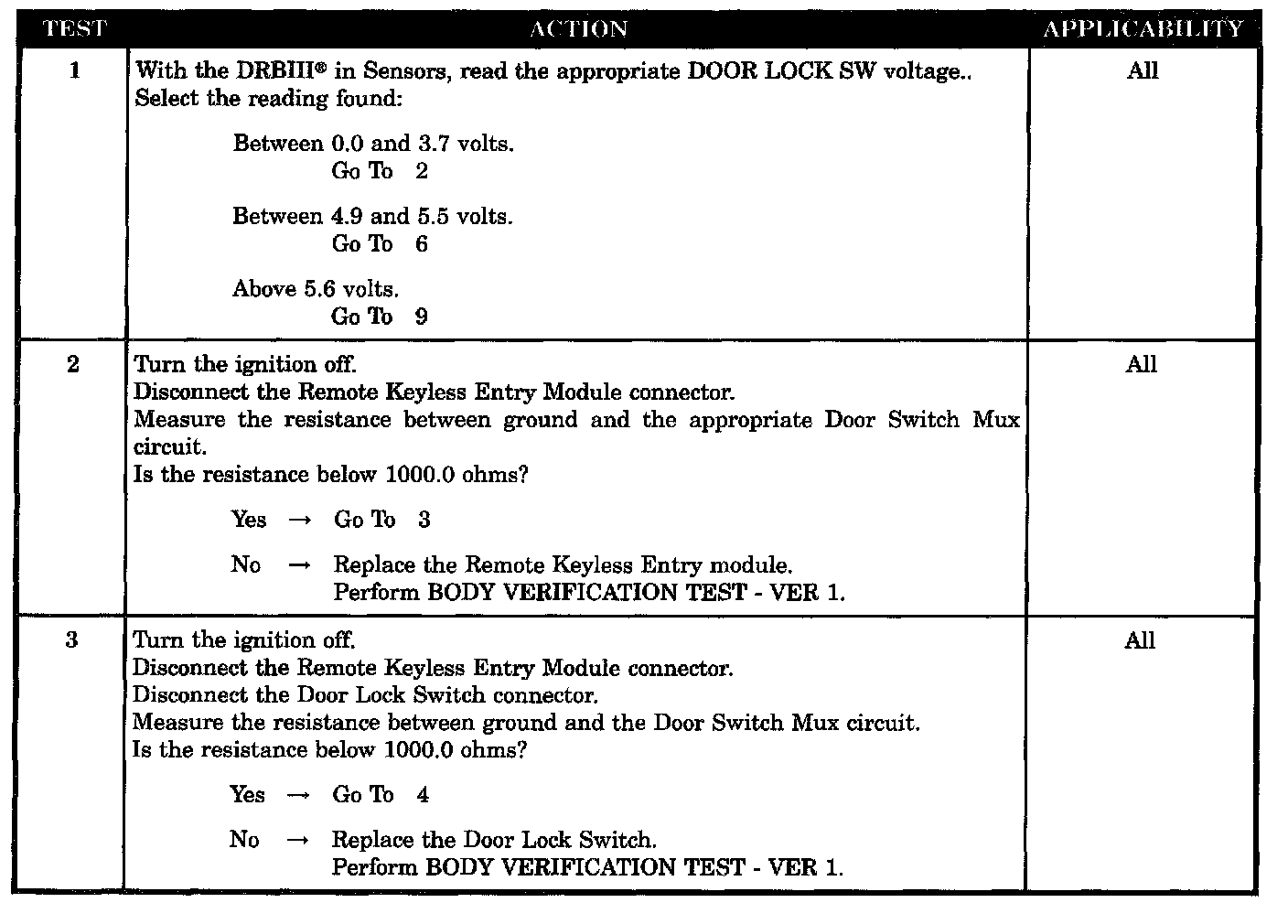

Test 1 - 3:

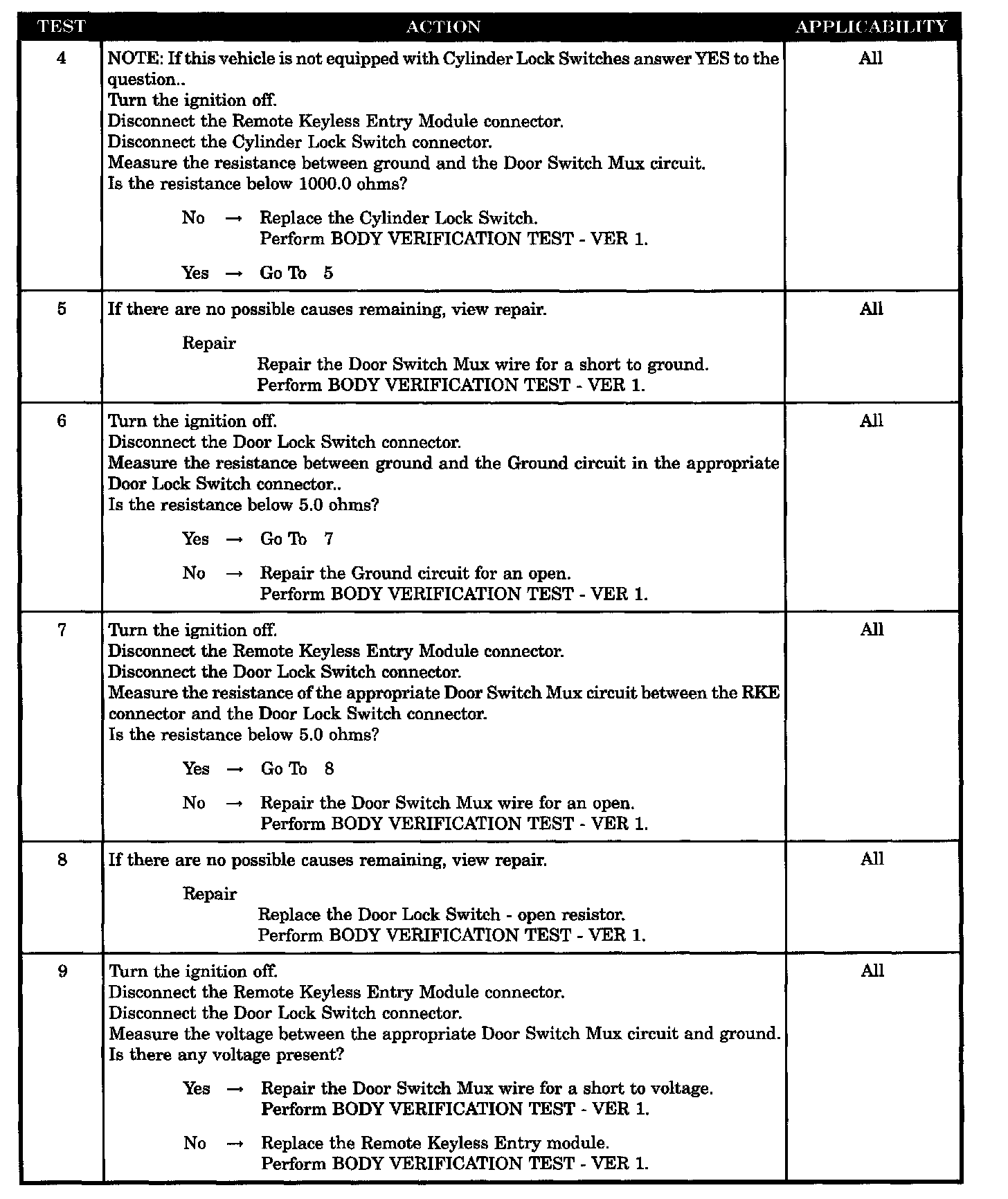

Test 4 - 9:

SYMPTOM
ALL LOCKS INOPERATIVE FROM ONE LOCK SWITCH

POSSIBLE CAUSES
- Door lock switch - short to ground
- Door switch ground wire open
- Door switch mux wire short to voltage
- Cylinder lock switch short to ground
- Door switch mux wire open
- Door lock switch - open
- Door switch mux wire short to ground
- Remote keyless entry module - high voltage
- Remote keyless entry module - low voltage
