Headlamps Fail to Flash When Alarm Is Tripped

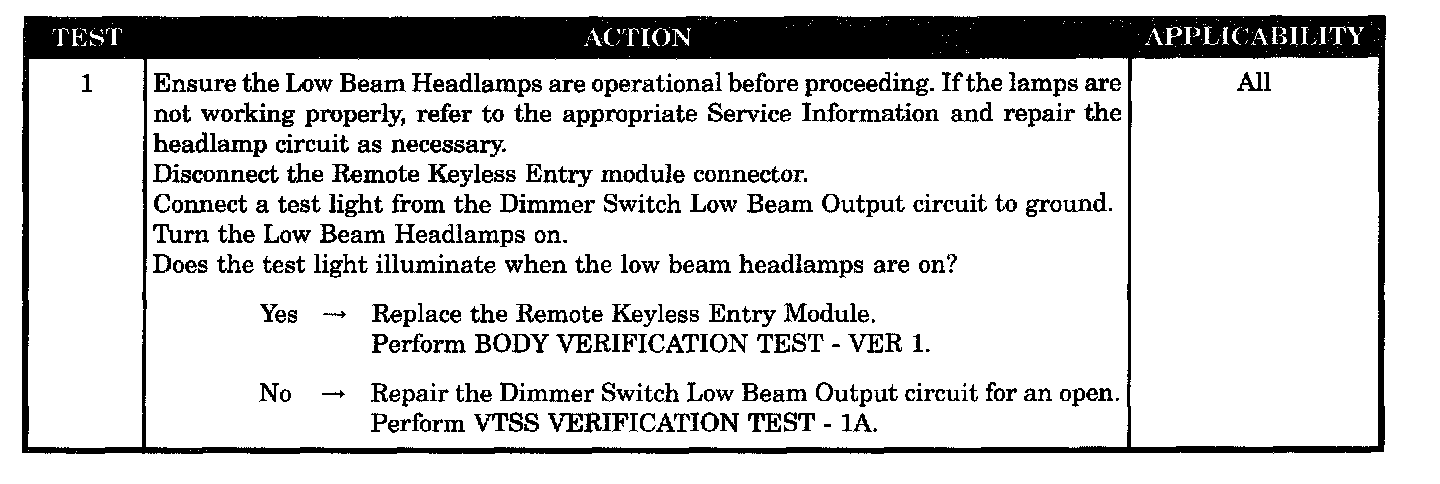

Test 1:






SYMPTOM
HEADLAMPS FAIL TO FLASH DURING ALARM

POSSIBLE CAUSES
- Dimmer switch low beam output circuit open
- Remote keyless entry module
