Park Lamps Fail to Flash During Alarm

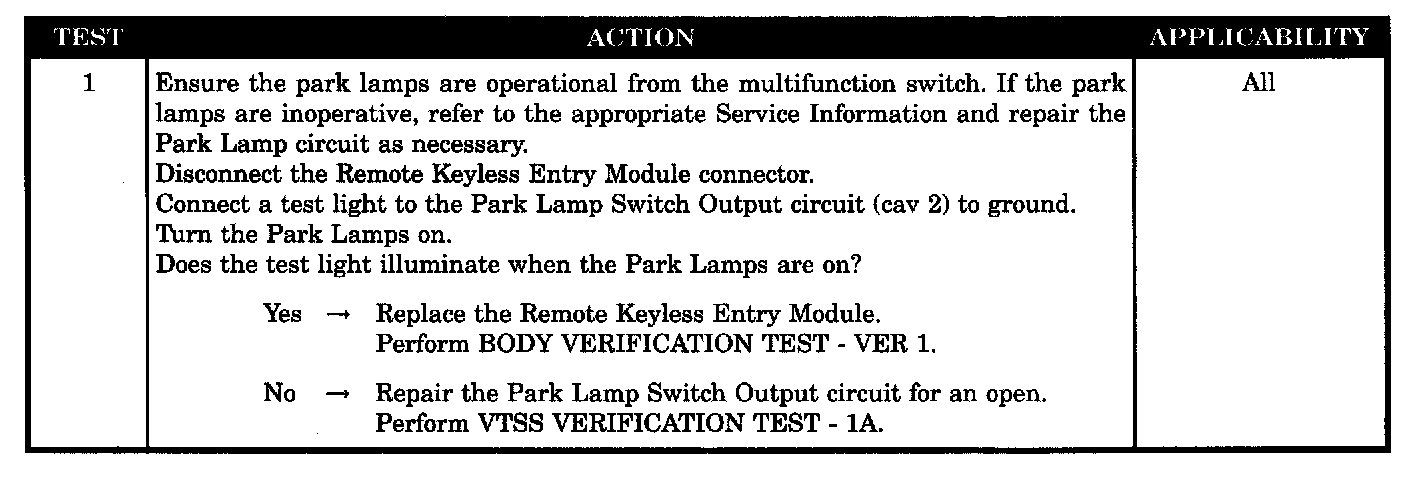

Test 1:






SYMPTOM
PARK LAMPS FAIL TO FLASH DURING ALARM

POSSIBLE CAUSES
- Park lamp switch output circuit open
- Remote keyless entry module
