VTSS Indicator Stays On Steady During Arming

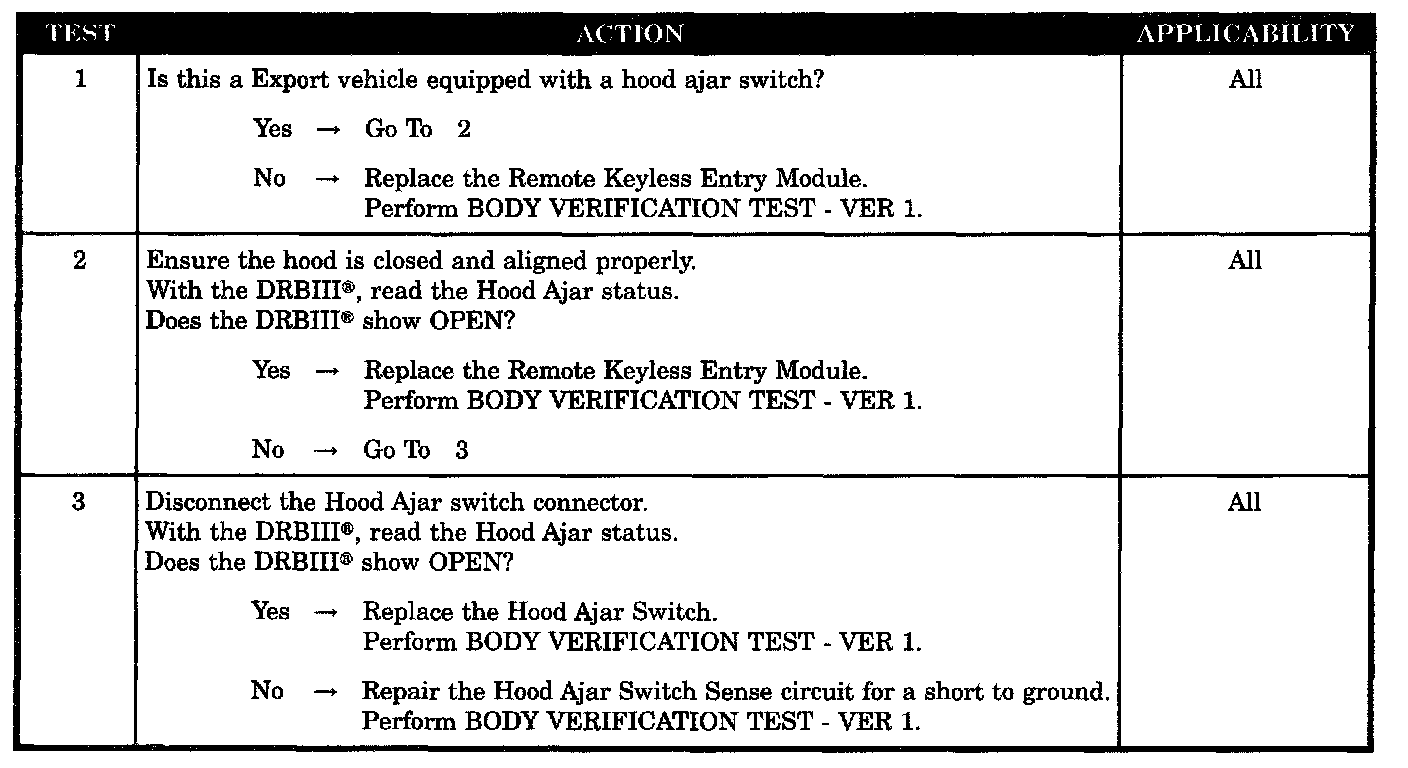

Test 1 - 3:






SYMPTOM
VTSS INDICATOR STAYS ON STEADY DURING ARMING

POSSIBLE CAUSES
- Hood ajar switch sense circuit shorted to ground (if equipped)
- Hood ajar switch (if equipped)
- RKE module - VTSS indicator
