Connector Locations
Fig. 21 2.0L/2.4L Engine /Transmission Assembly:

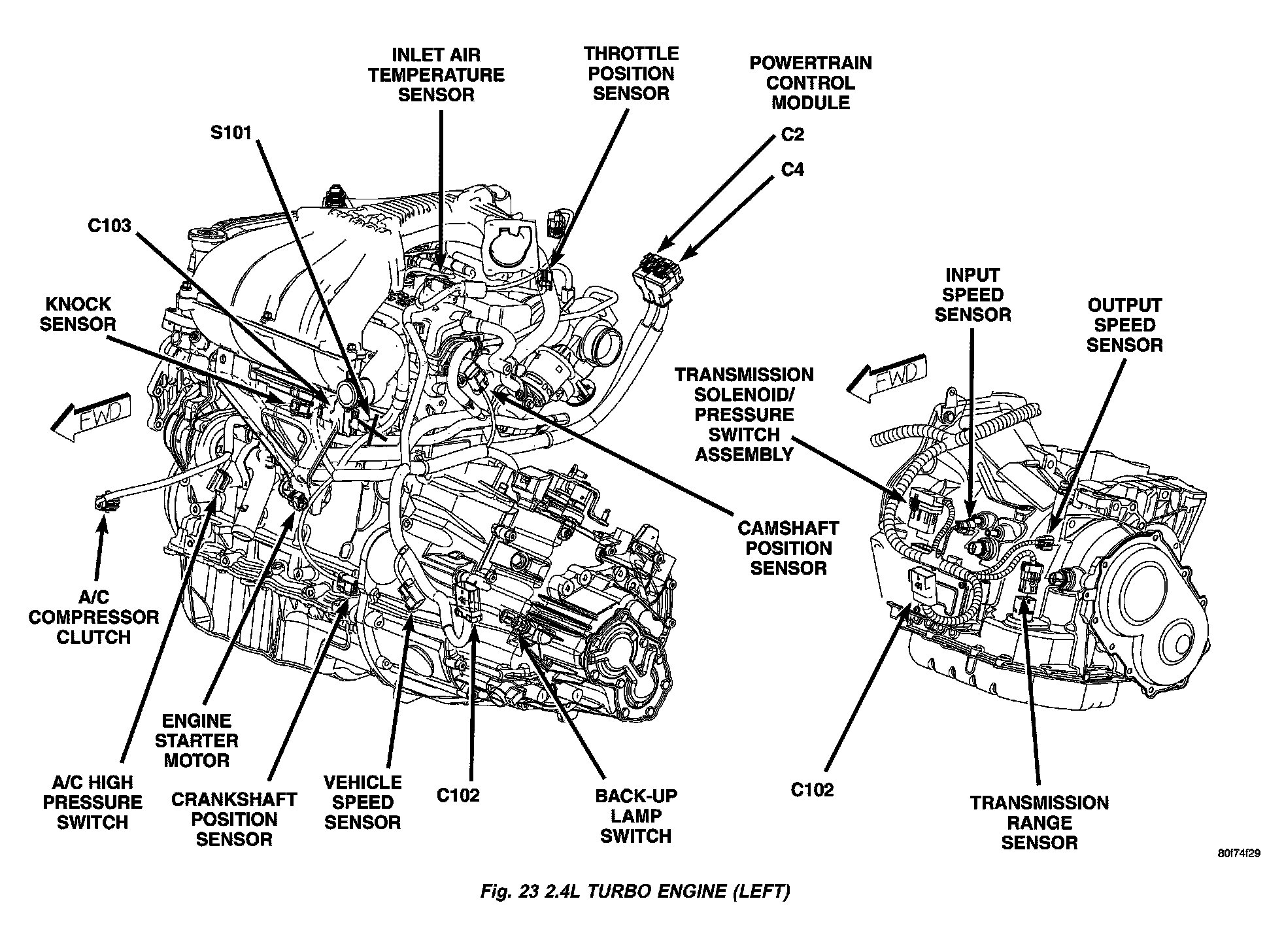

Fig. 23 2.4L Turbo Engine (Left):
