Compass/Temp Module Does Not Calibrate

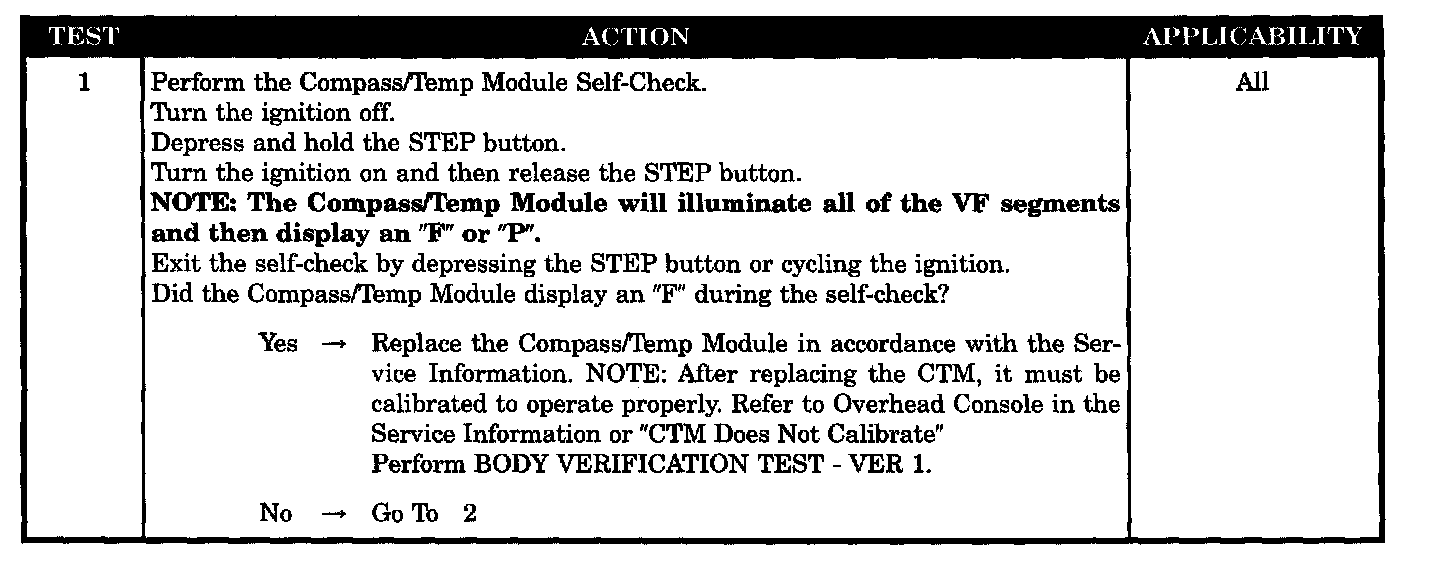

Test 1:

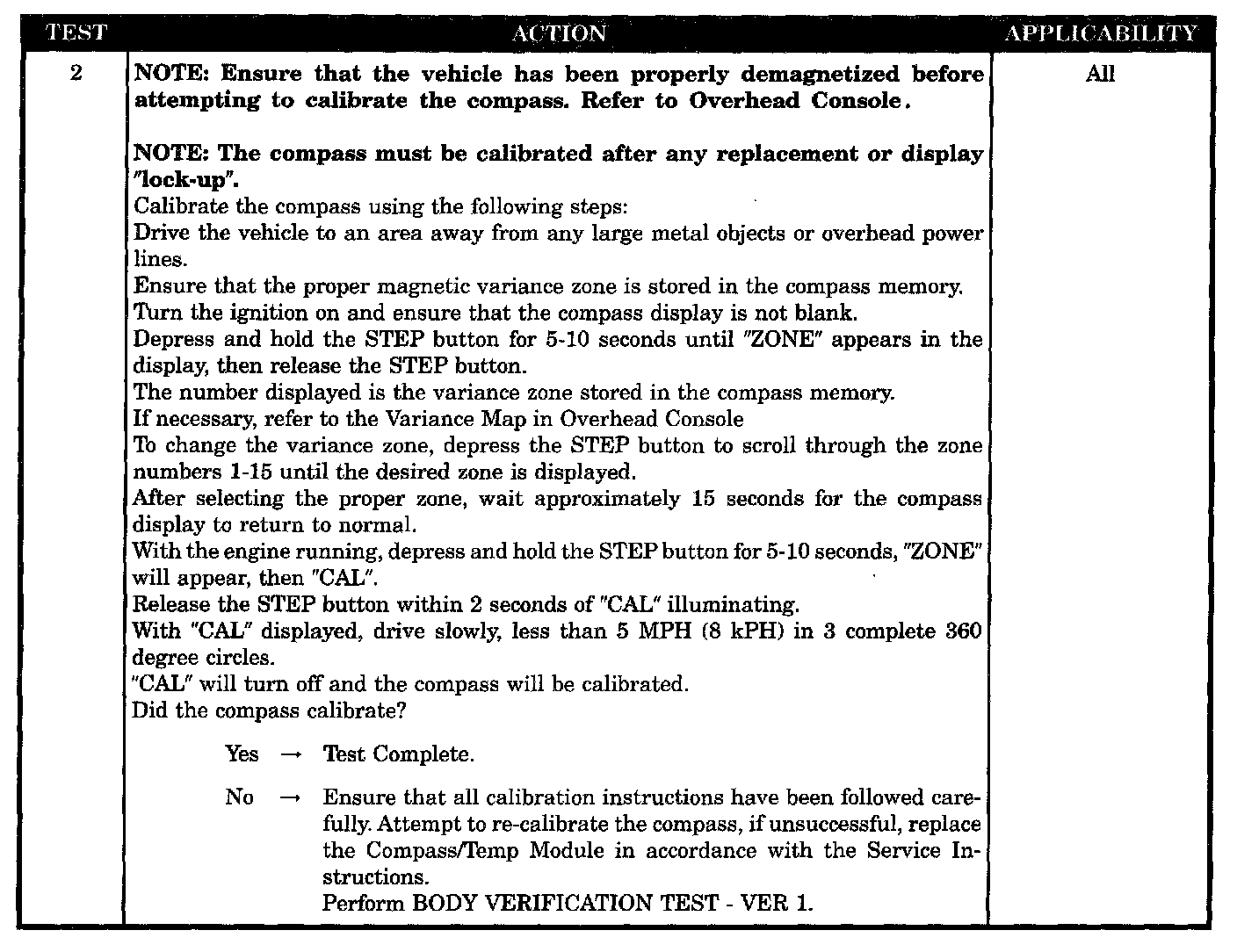

Test 2:






SYMPTOM
ILLUMINATED ENTRY INOPERATIVE

POSSIBLE CAUSES
- Courtesy lamps operational
- Intermittent condition
- Illuminated entry not enabled
