Connector Views

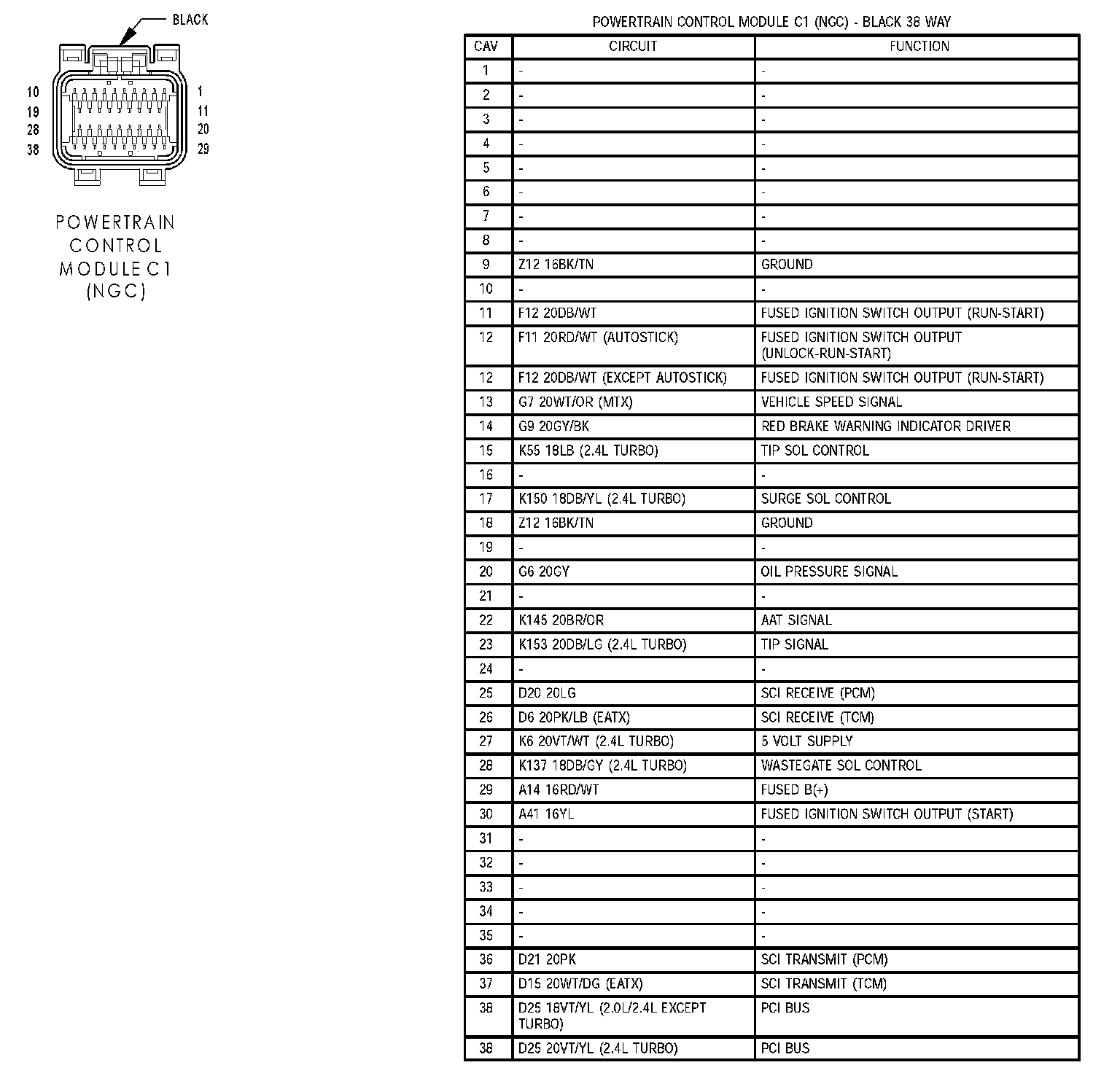

Powertrain Control Module C1 (NGC):

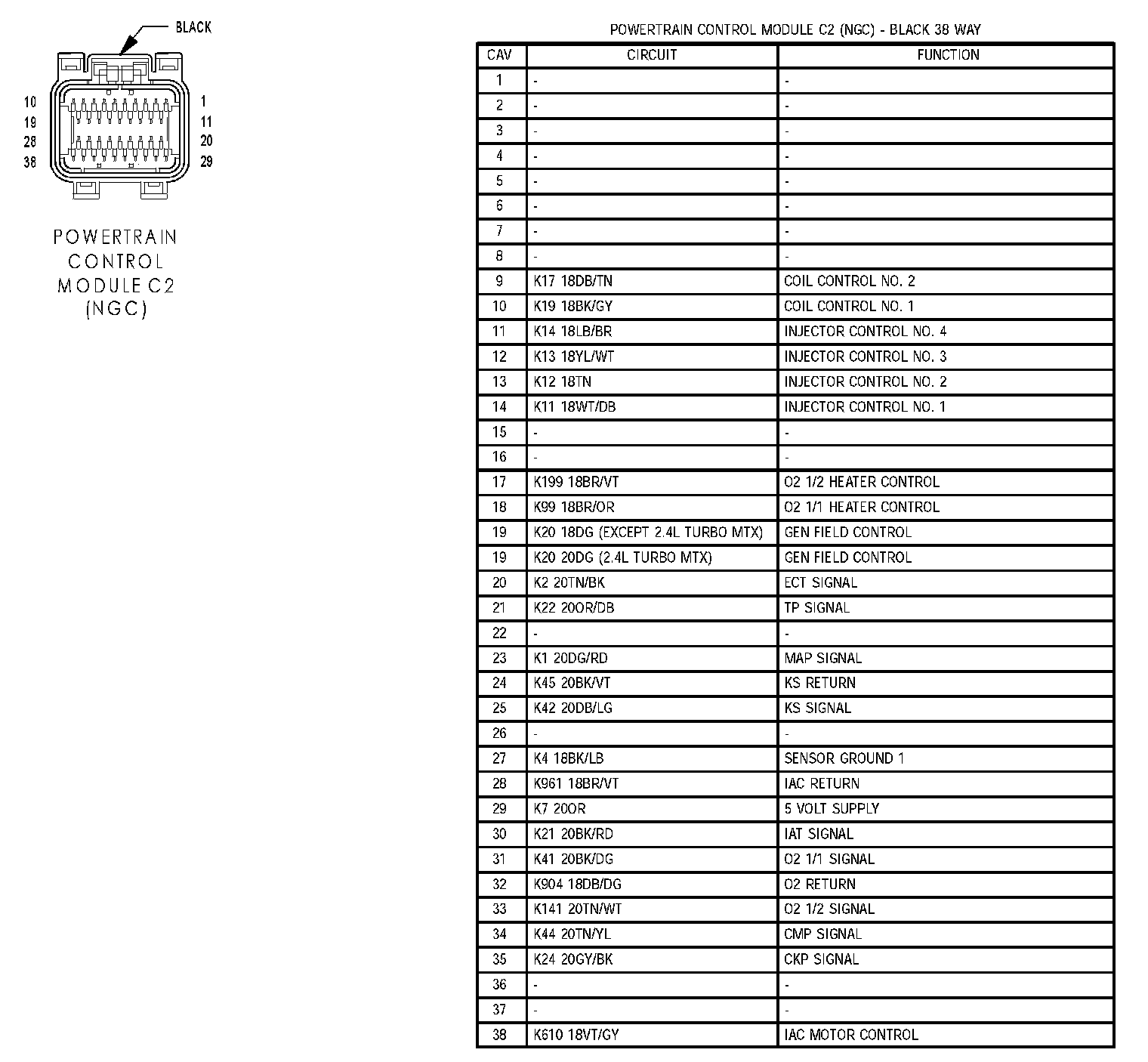

Powertrain Control Module C2 (NGC):

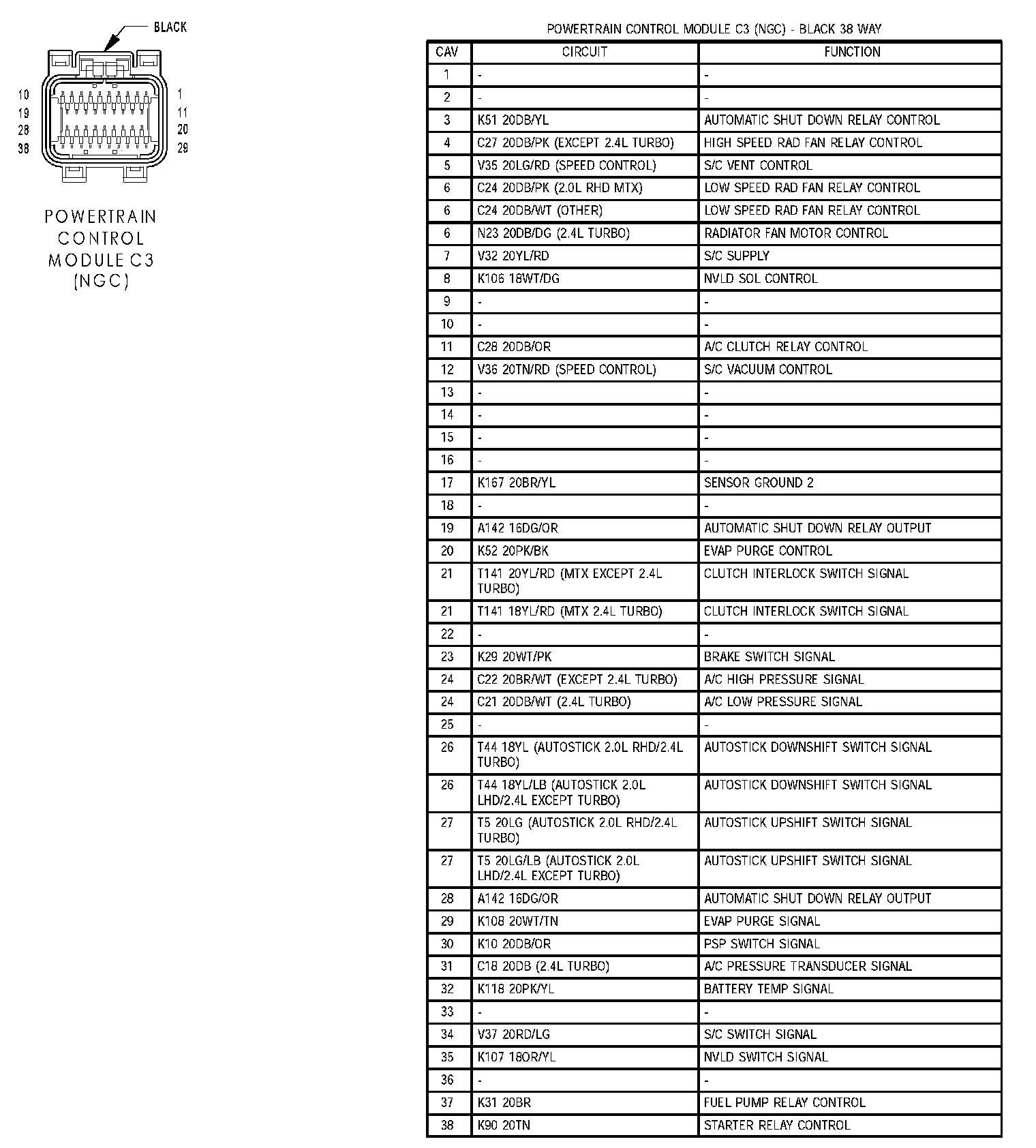

Powertrain Control Module C3 (NGC):

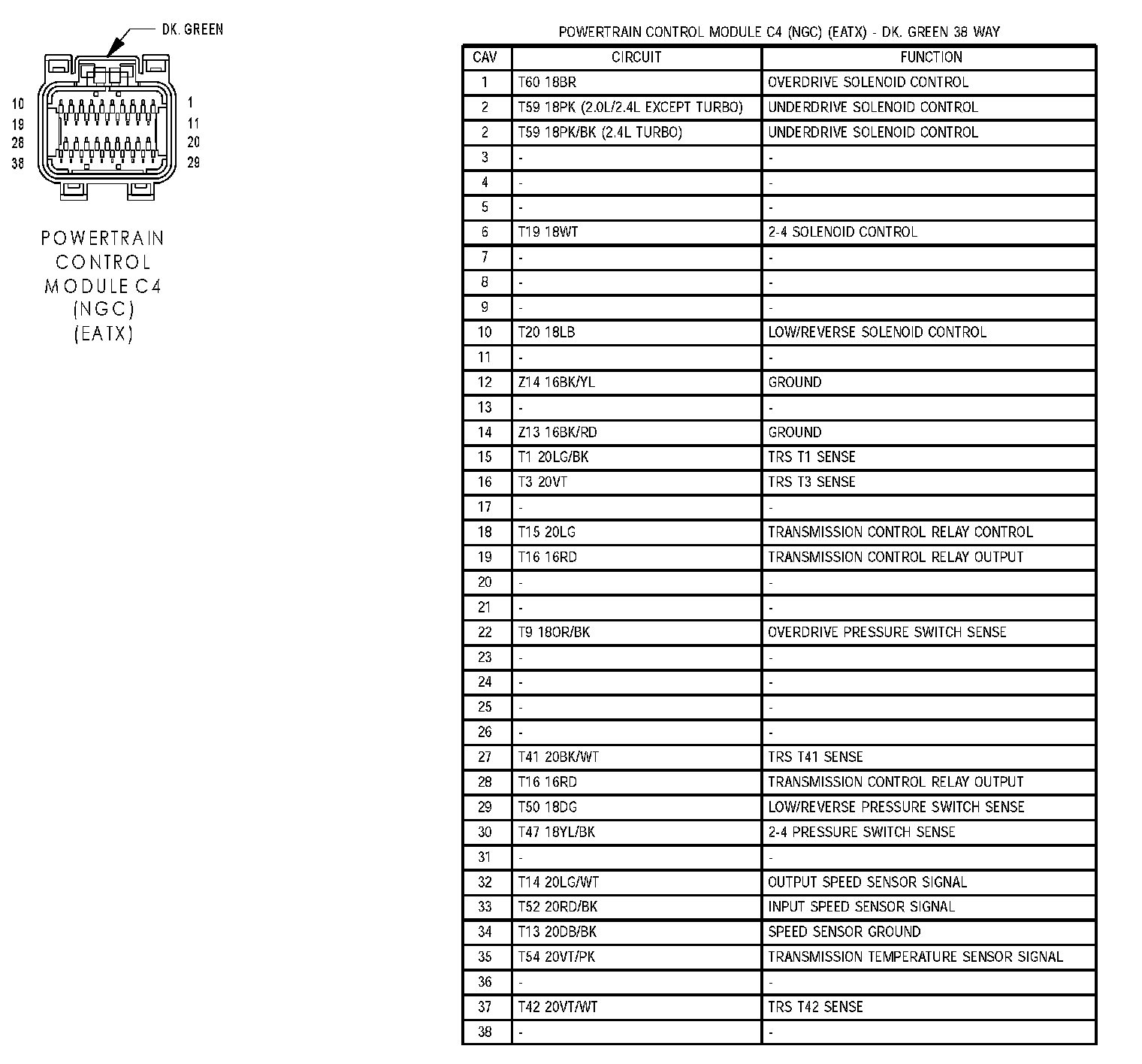

Powertrain Control Module C4 (NGC) (EATX):
