Power Distribution Module

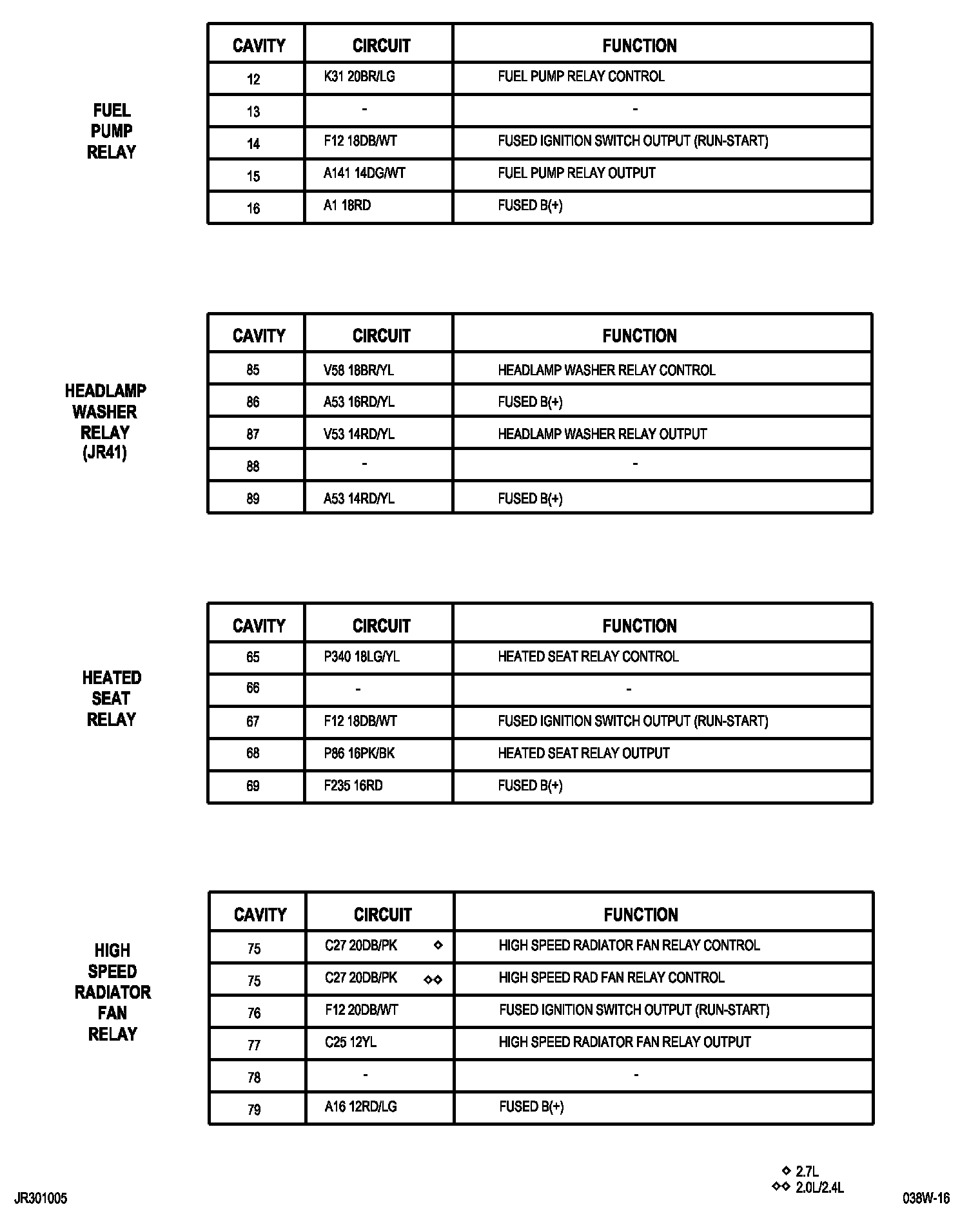

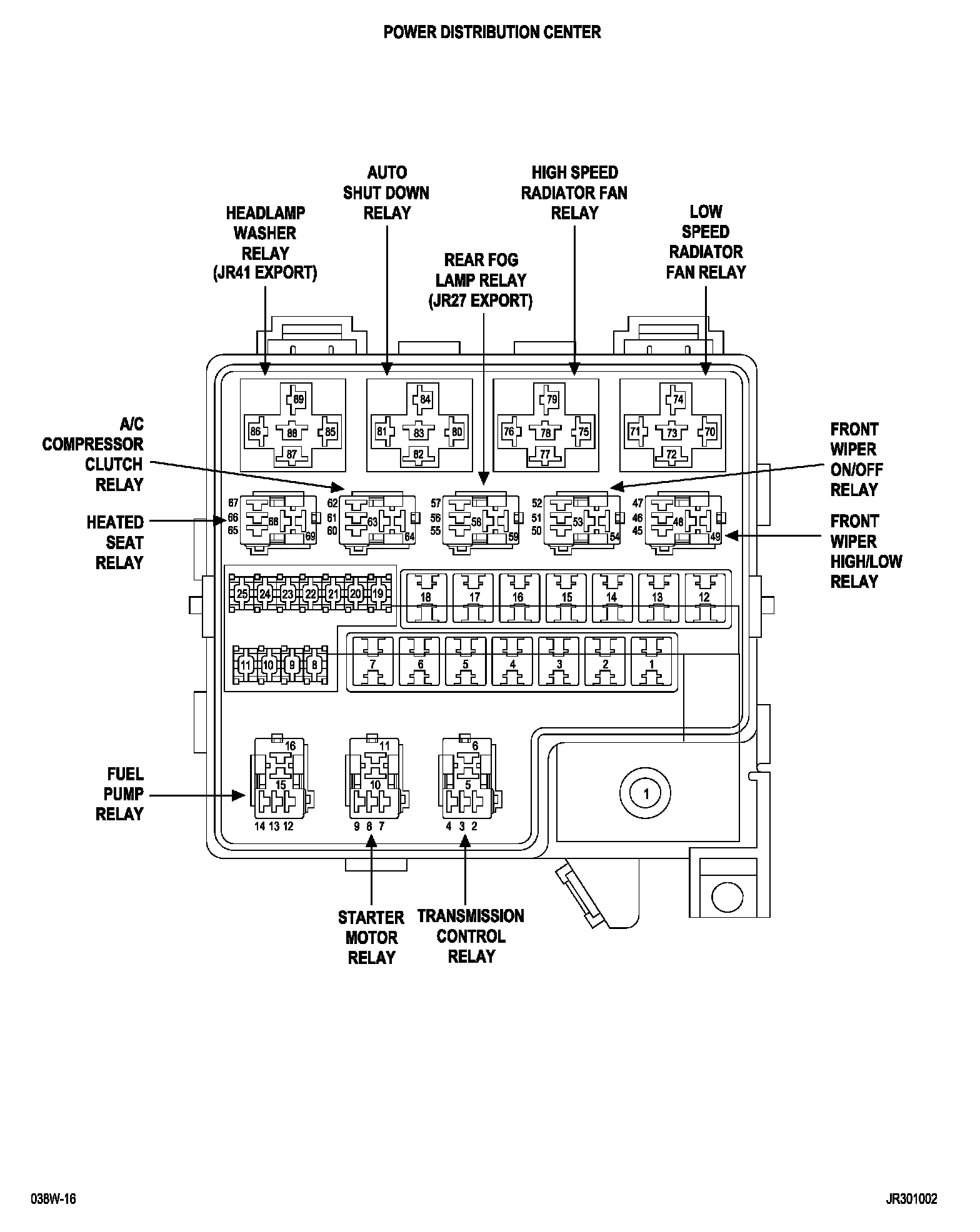

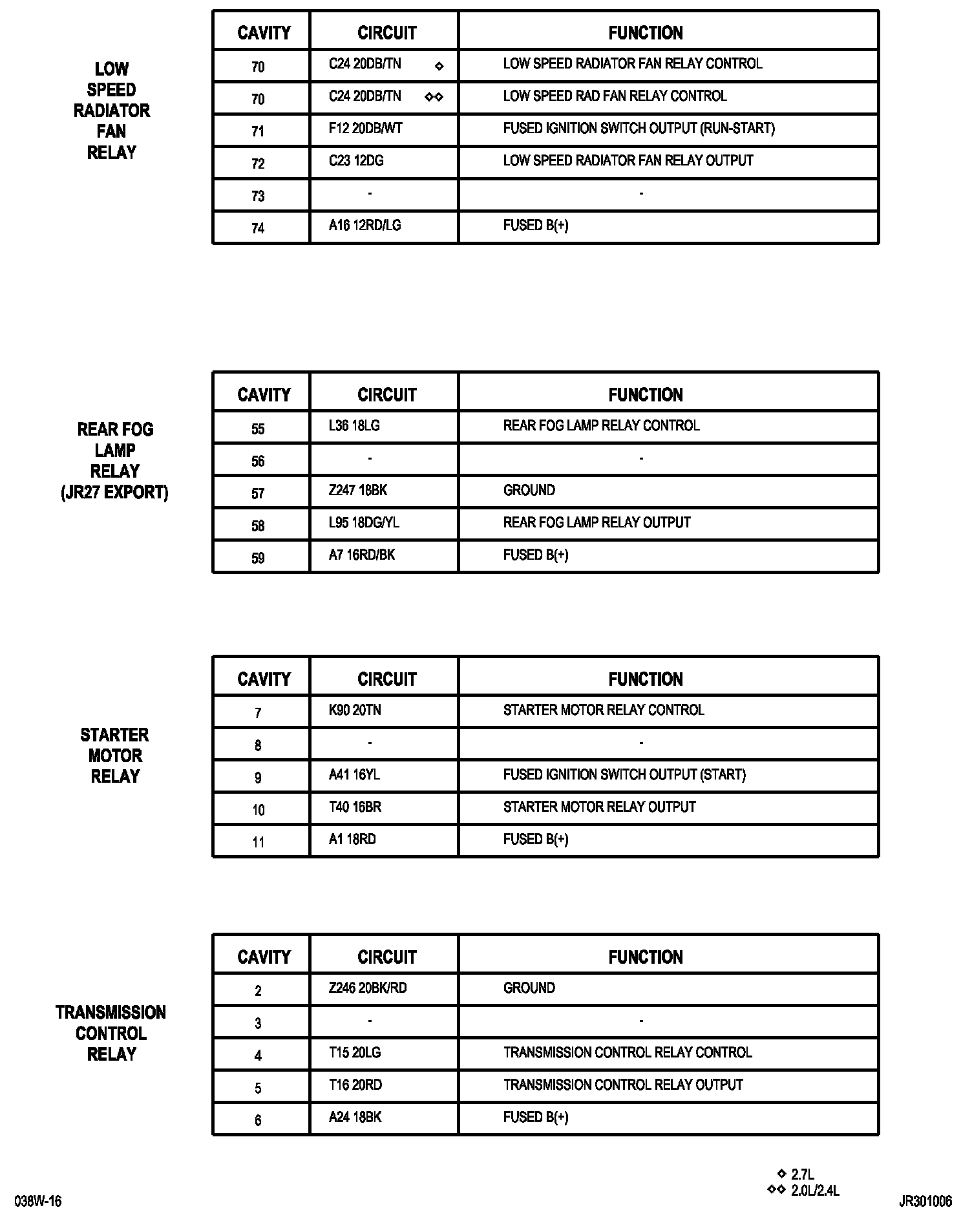

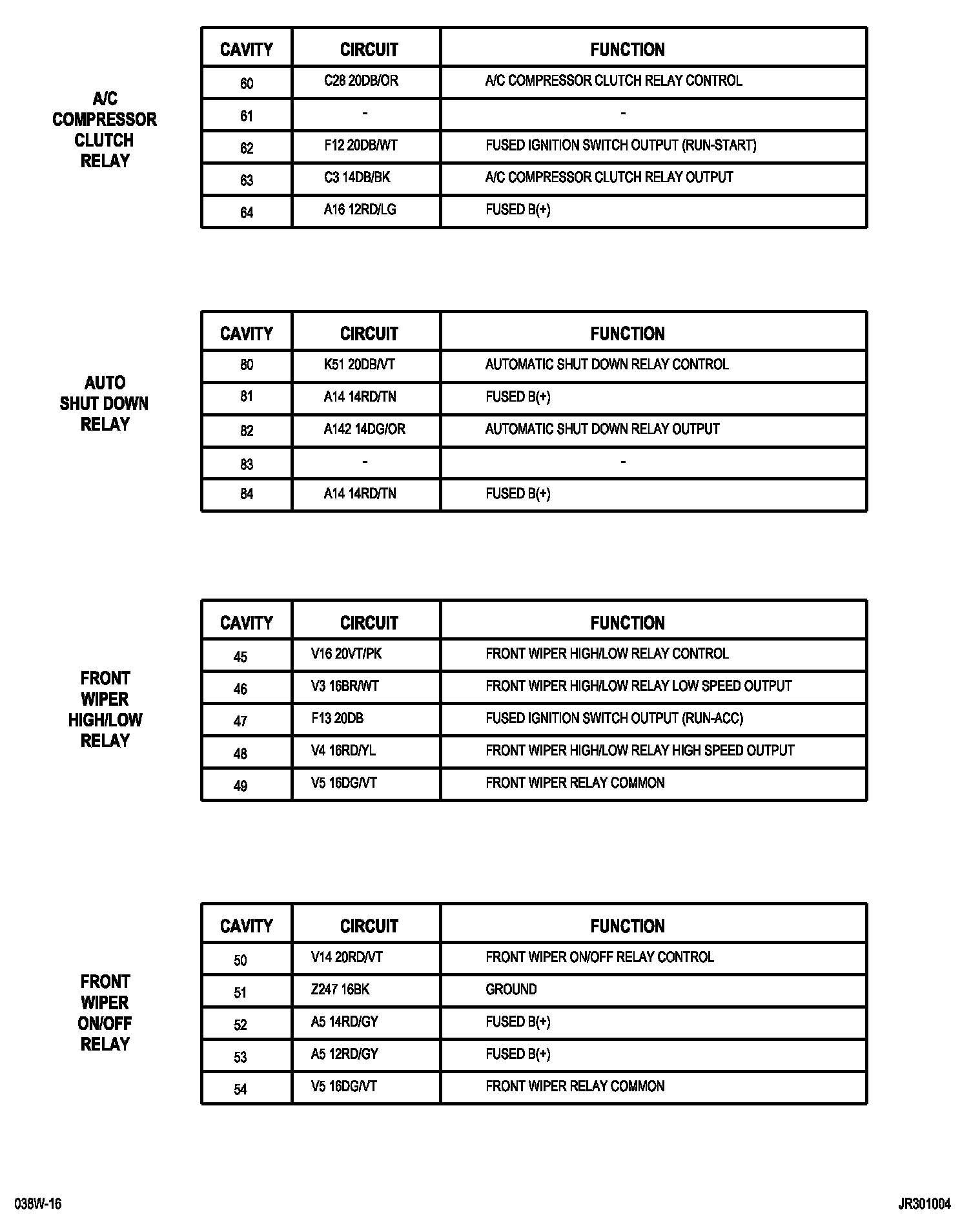

8w-10-2 Power Distribution Center:

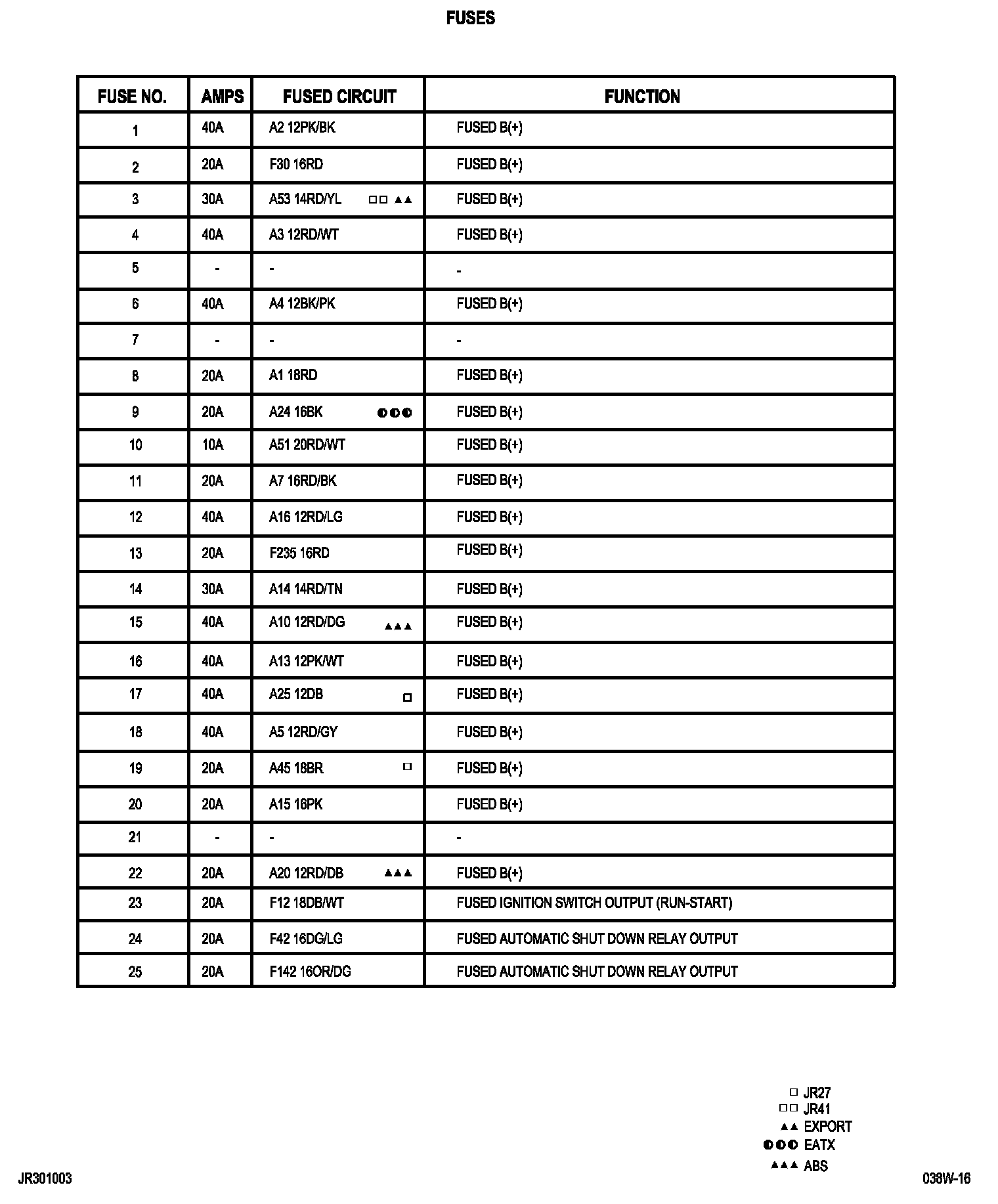

8w-10-3 Fuses (PDC):
8w-10-4:
8w-10-5:
8w-10-6:
