Engine Coolant Temperature Indicator Not Operating Properly

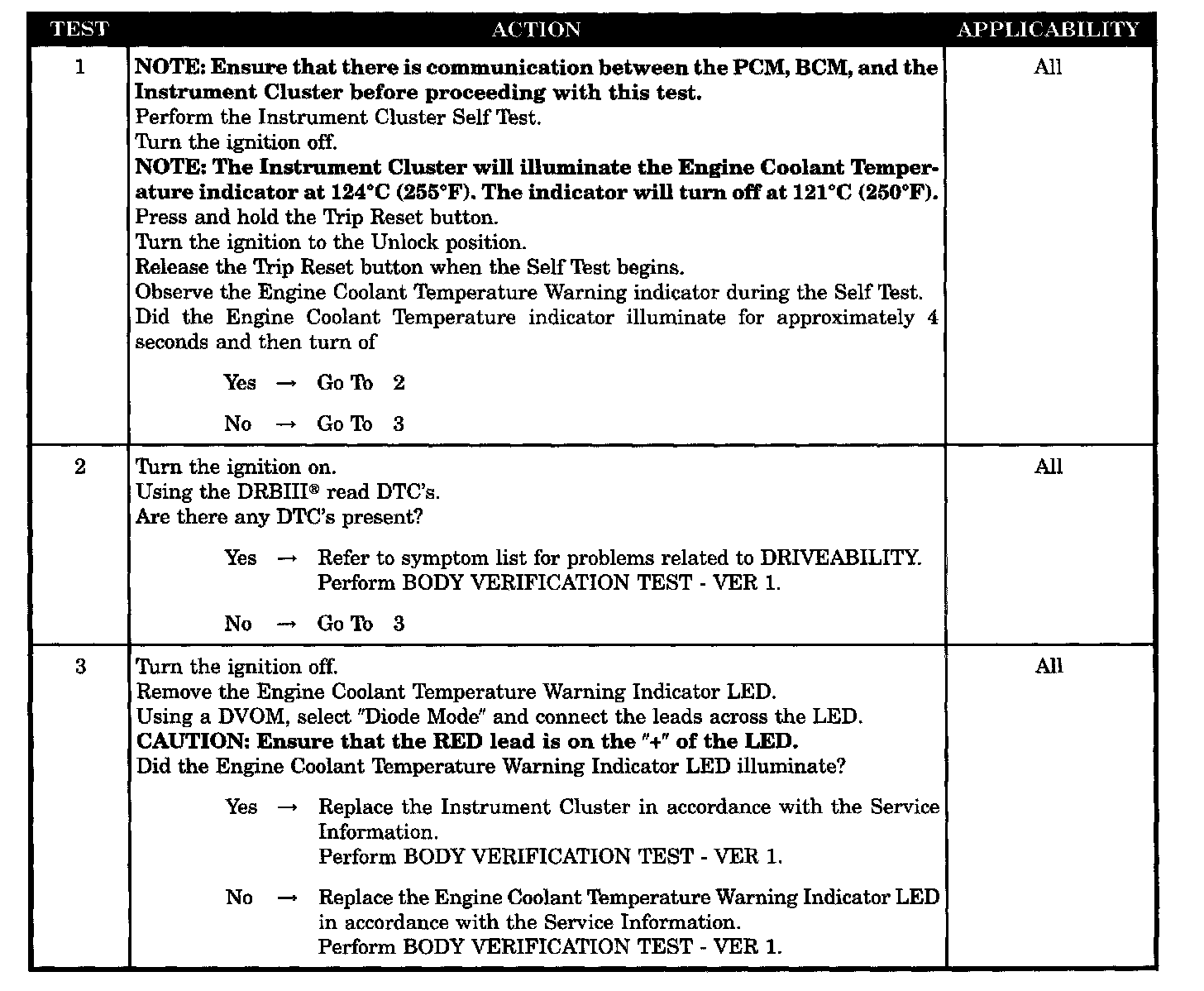

Test 1 - 3:






SYMPTOM
ENGINE COOLANT TEMPERATURE INDICATOR NOT OPERATING PROPERLY

POSSIBLE CAUSES
- DTC present
- Engine coolant temperature warning indicator led
- Instrument cluster
