High Beam Indicator Always On

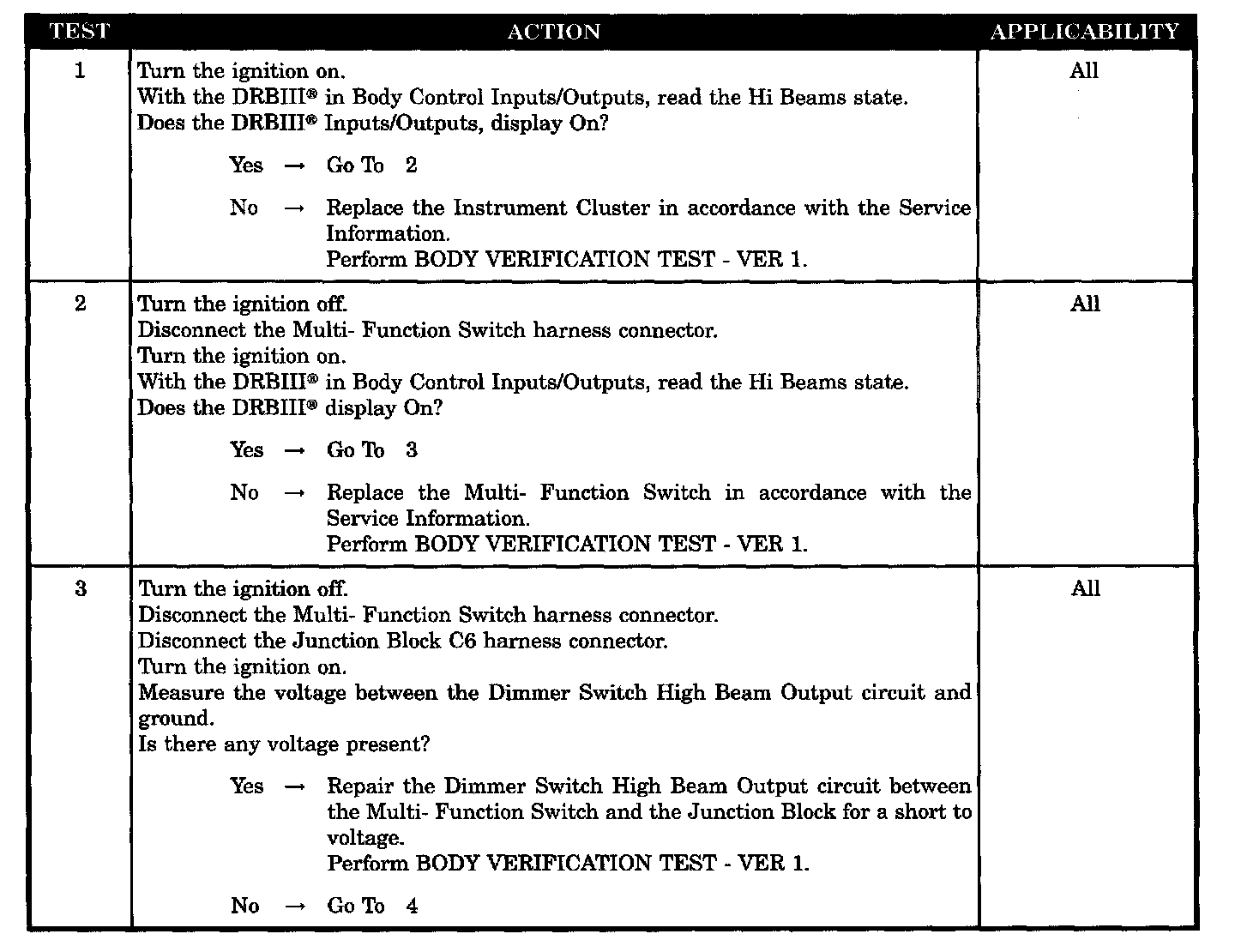

Test 1 - 3:




Test 4:






SYMPTOM
HIGH BEAM INDICATOR ALWAYS ON

POSSIBLE CAUSES
- Dimmer switch high beam output circuit short to voltage
- Junction block short to voltage
- Multi-function switch
- Body control module
- Instrument cluster
