Dimming Level Switch Input Failure - Diagnostic Procedure

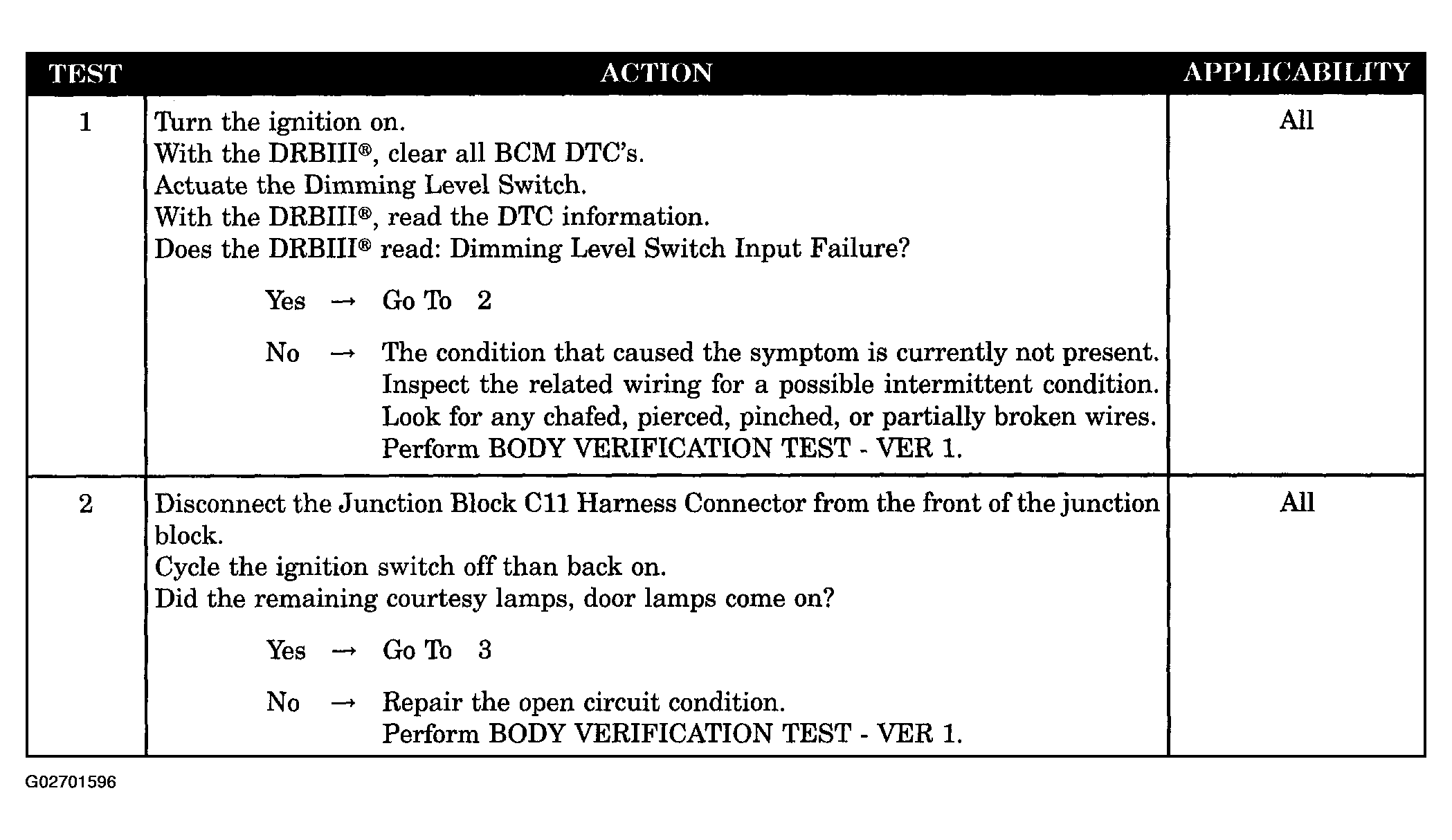

Fig 1: Dimming Level Switch Input Failure - Diagnostic Procedure (1 Of 2)
G02701596Courtesy of DAIMLERCHRYSLER CORP.

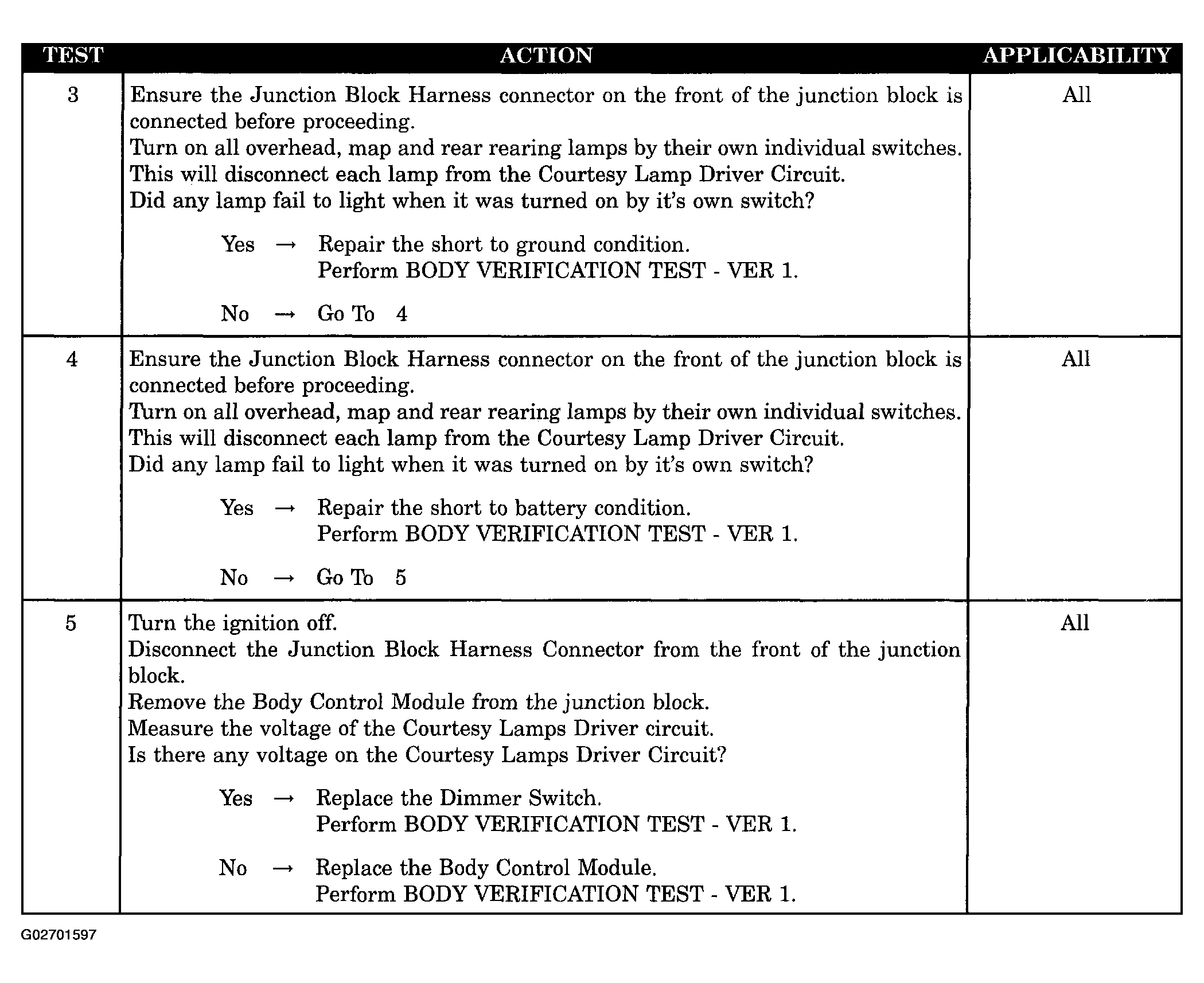

Fig 2: Dimming Level Switch Input Failure - Diagnostic Procedure (2 Of 2)
G02701597Courtesy of DAIMLERCHRYSLER CORP.
