>> F << TJ Case/Inner Shaft Assembly Installation

    CAUTION: The driveshaft joint uses special grease. Do not mix old and new or different types of grease.

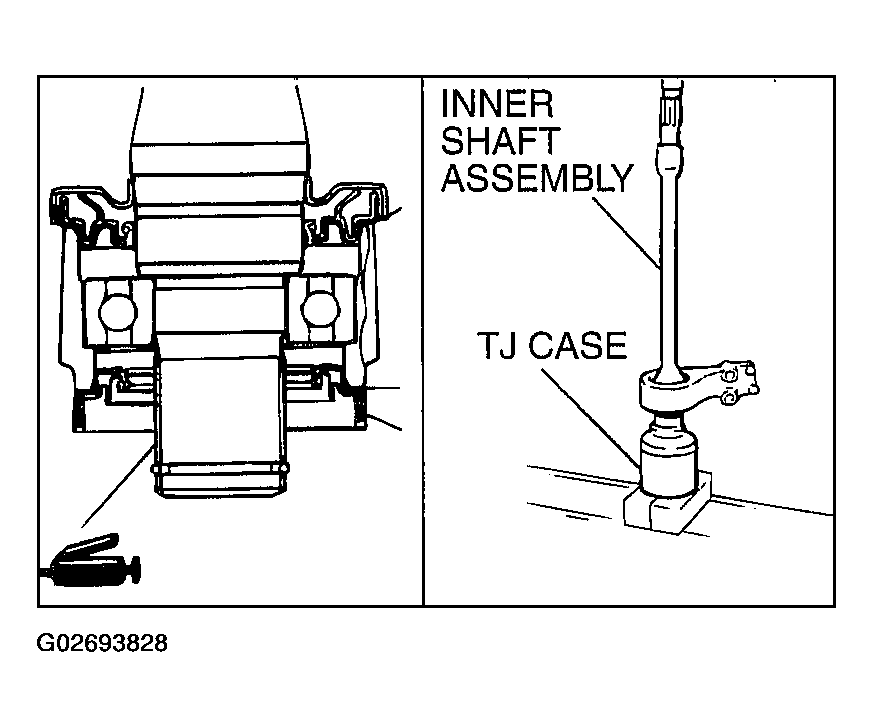

    Fig 1: Installing TJ Case/Inner Shaft Assembly
    G02693828Courtesy of DAIMLERCHRYSLER CORP.
  1. Apply the specified grease to the inner shaft serration, and then press the inner shaft assembly into the TJ case.

    Specified grease:

    MOPAR® Multi-mileage Lubricant Part No. 2525035 or equivalent

    2. Fig 2: Applying Grease In Driveshaft Joint
    G02693829Courtesy of DAIMLERCHRYSLER CORP.
    NOTE: The grease in the repair kit should be divided in half for use, respectively, at the joint and inside the boot.
  2. Fill the TJ case with repair kit grease and insert the driveshaft, and then refill the TJ case with repair kit grease.

    Grease quantity:

    < 2.4L ENGINE > 100 +/- 10 g (3.5 +/- 0.4 oz)

    < 3.0L ENGINE > 105 +/- 10 g (3.7 +/- 0.4 oz)
