Removal & Installation (2.4L)

  1. Note radio programs. Disconnect the negative battery cable and isolate.
    2. WARNING: If the negative battery cable is not disconnected, the PCM can be damaged by contacting the positive battery cable at the PDC.
  2. Remove the 2 nuts holding the PCM and bracket. See Fig 1. Unlock and disconnect the electrical connectors at the PCM.
  3. Remove the 3 fasteners holding the PCM to the bracket.
  4. To install, reverse removal procedure. Using DRBIII® scan tool, program PCM and SKIM if equipped. See PROGRAMMING .

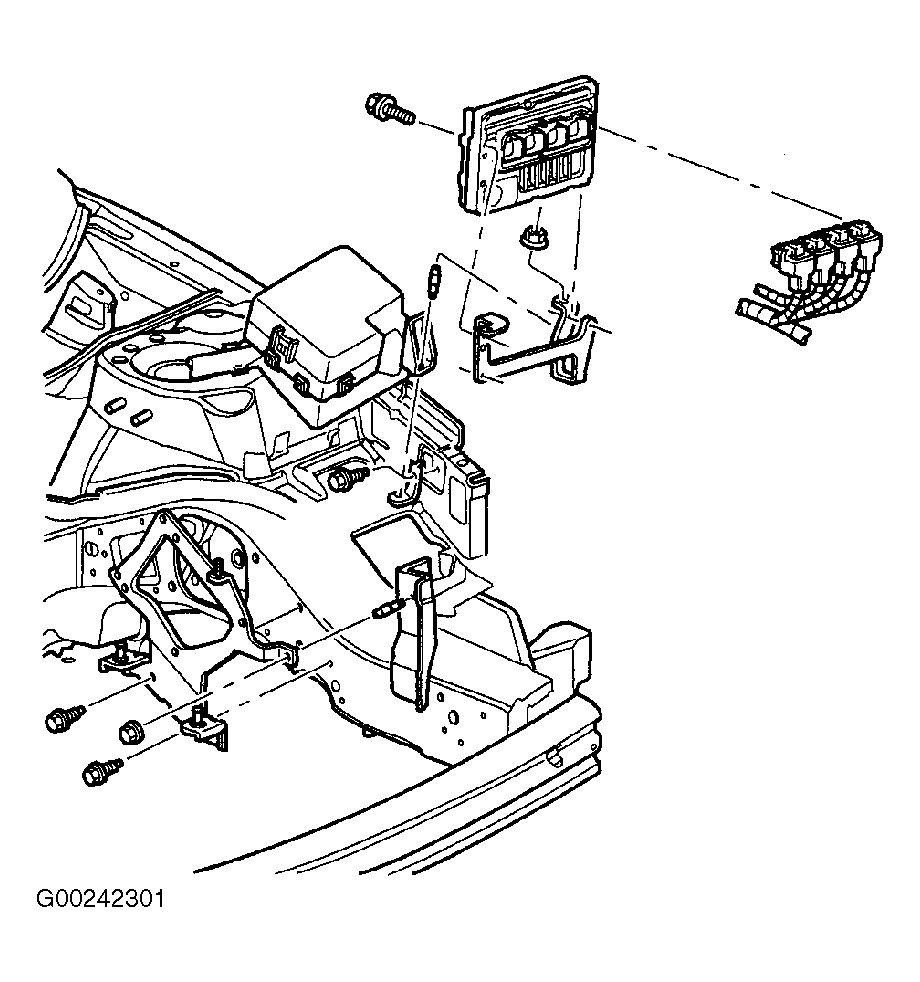

Fig 1: Removing PCM From Bracket (2.4L)
G00242301Courtesy of CHRYSLER CORP.
