Junction Block Body Control Module Connector End View - Except Coupe

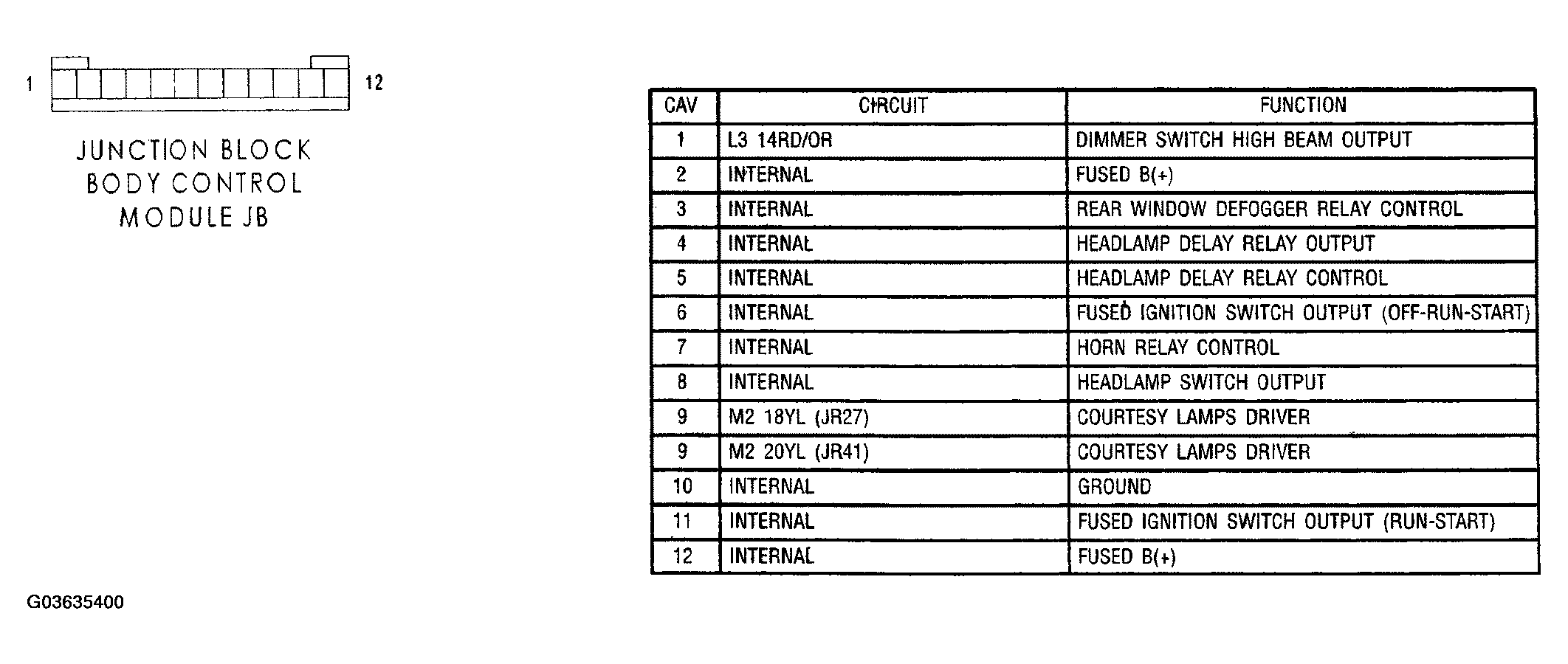

Fig 1: Junction Block Body Control Module Connector End View - Except Coupe
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
