Powertrain Control Module C2 (SBEC)

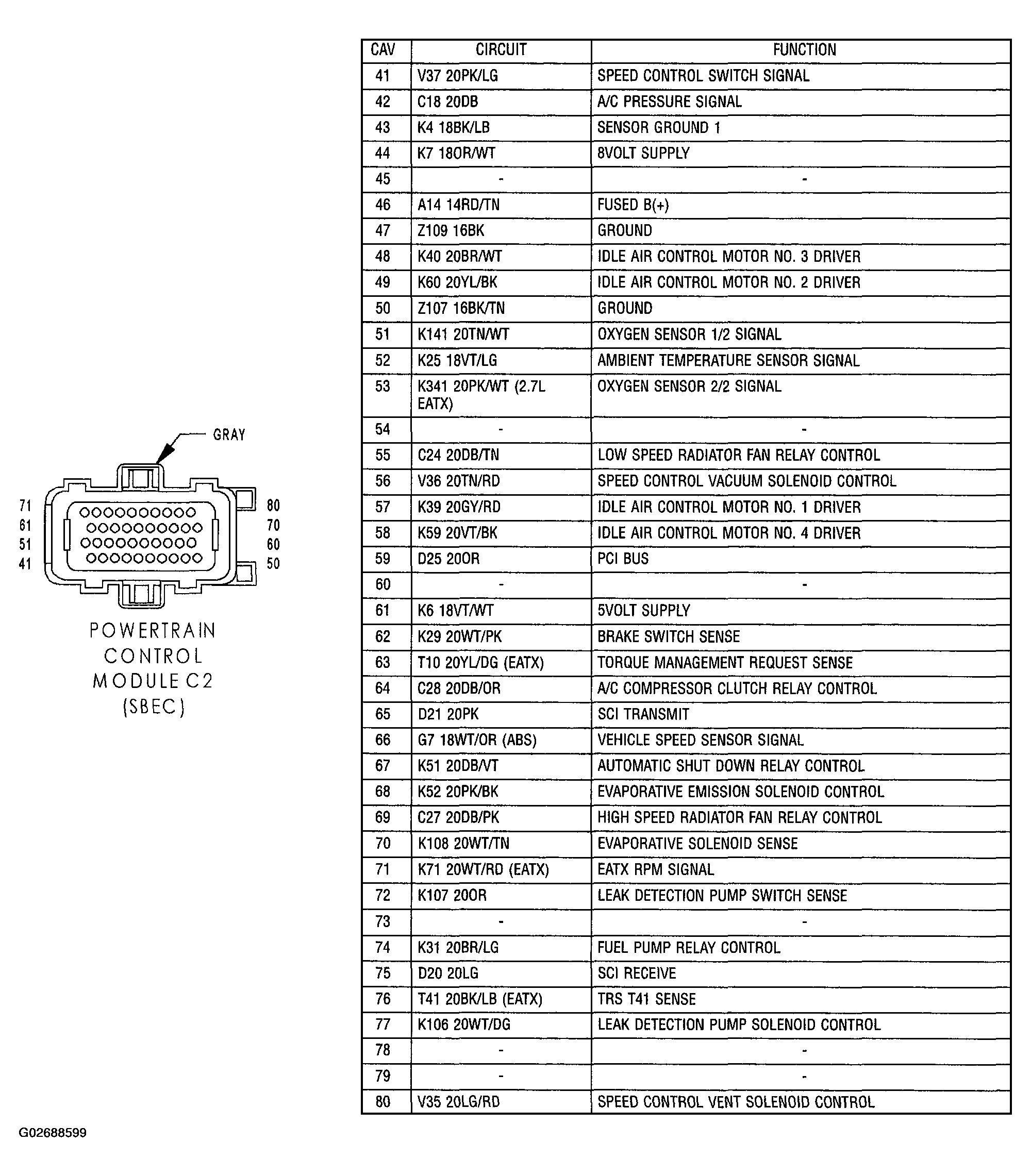

Fig 1: Identifying Powertrain Control Module C2 (SBEC) Connector Pinouts
G02688599Courtesy of DAIMLERCHRYSLER CORP.
