< 3.0L Engine > Downshift Pattern

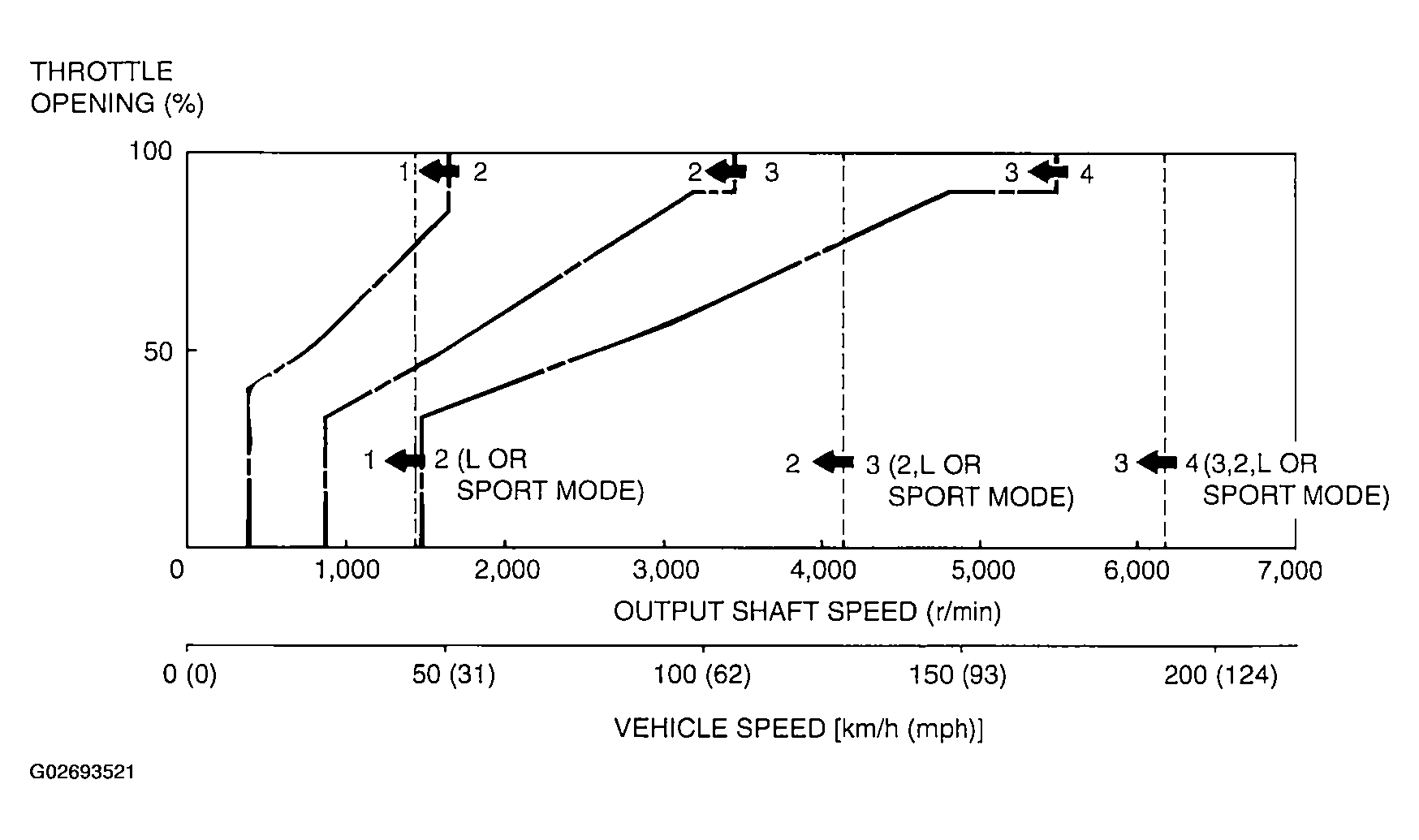

Fig 1: Downshift Pattern Graph (3.0L Engine)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
