A/T Control Relay Check

  1. Remove the A/T control relay.

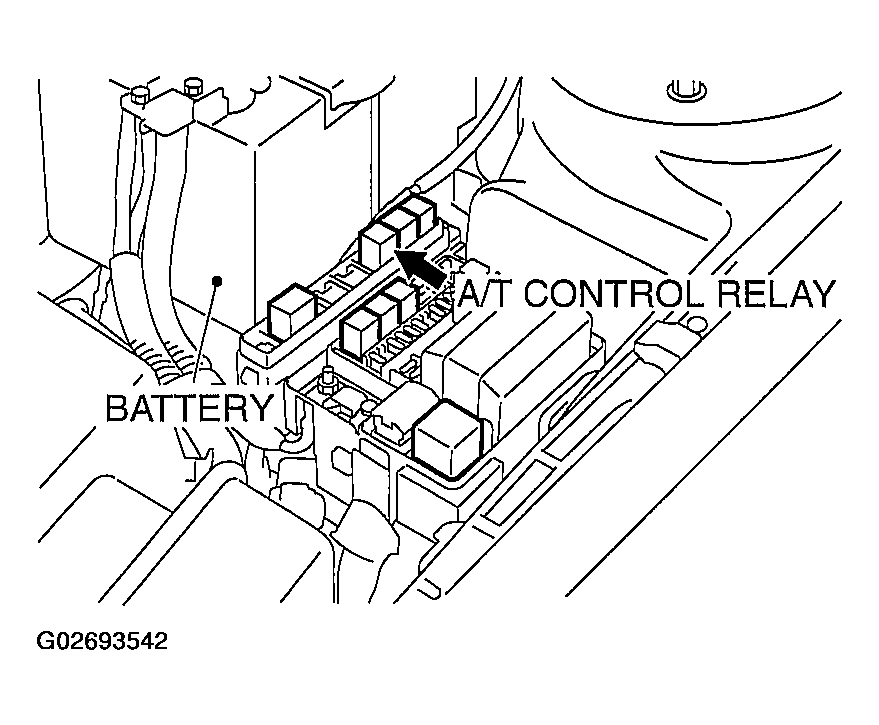

    Fig 1: Locating A/T Control Relay
    G02693542Courtesy of DAIMLERCHRYSLER CORP.
  2. Use jumper wires to connect A/T control relay terminal 3 to the negative battery terminal and terminal 2 to the positive battery terminal.
  3. Check for continuity between A/T control relay terminals 1 and 4 when the jumper wires are connected to and disconnected from the battery.

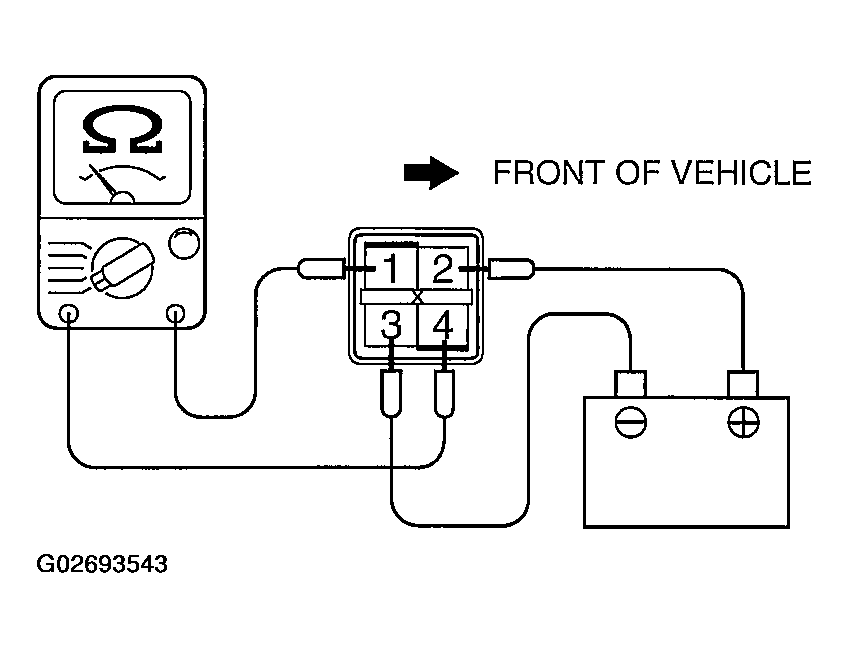

    Fig 2: Checking A/T Control Relay Continuity
    G02693543Courtesy of DAIMLERCHRYSLER CORP.
    A/T CONTROL RELAY CHECK

    JUMPER WIRE CONTINUITY BETWEEN TERMINALS NO.1 AND NO.4
    Connected Continuity
    Disconnected No continuity
  4. If there is any problem with the A/T control relay, replace it.
