<< F >> Drive Plate Bolts/Transaxle Assembly Lower Part Coupling Bolts/Transaxle Assembly Removal
- Support the transaxle assembly by using a transaxle jack.

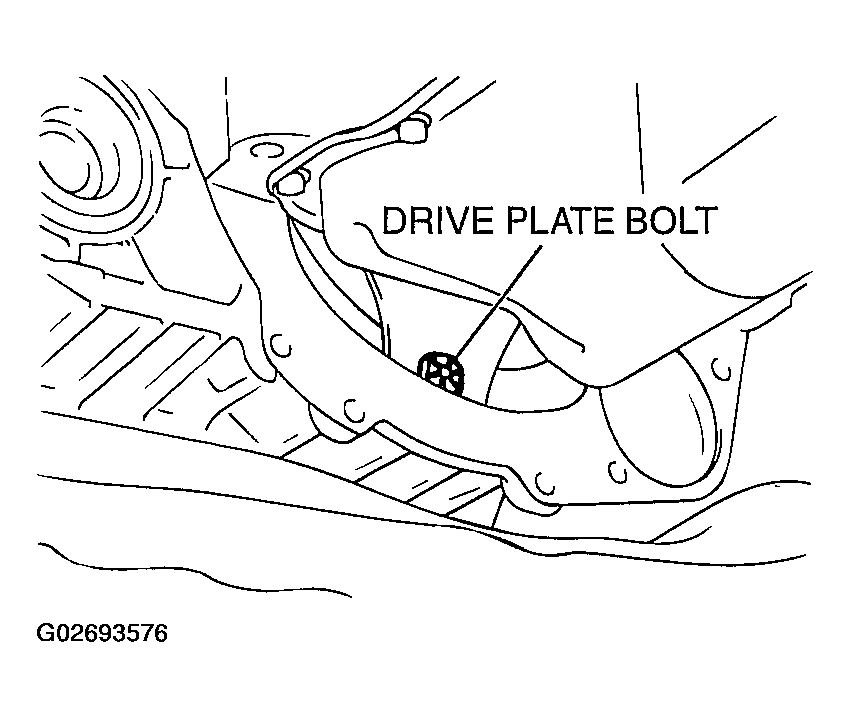

- Remove the drive plate bolts while turning the crankshaft.
- Push the torque converter into the flywheel housing so that the torque converter is not touching the drive plate.
- Remove the transaxle assembly connecting bolts and lower the transaxle assembly.
