Removal And Installation

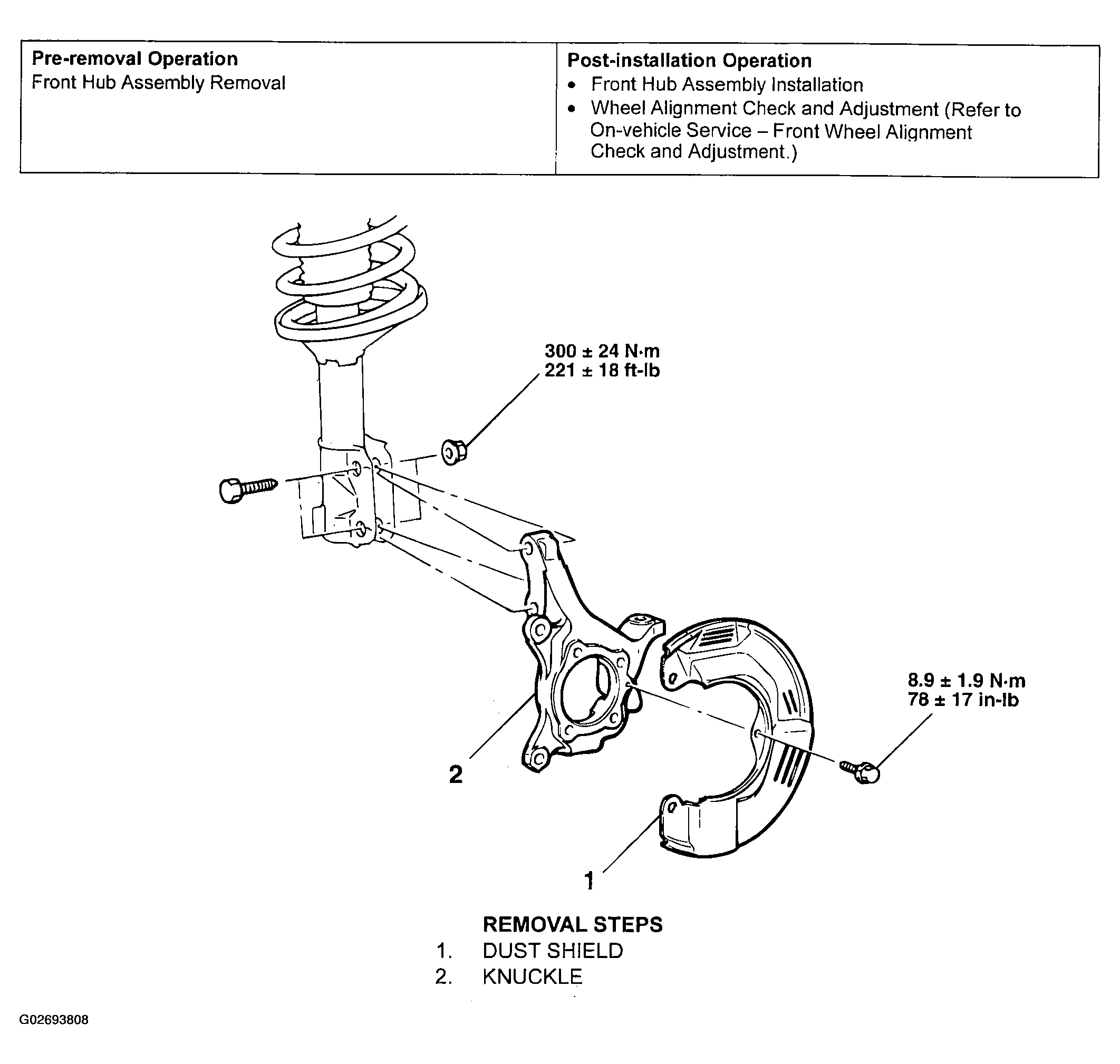

Fig 1: Removing & Installing Knuckle
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
