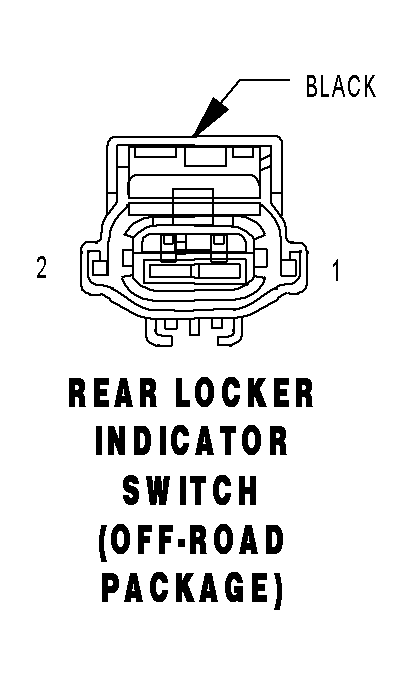

Rear Locker Indicator Switch (Off-Road Package) Connector End View
WARNING: This page is about a different car, the 2005 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.
REAR LOCKER INDICATOR SWITCH (OFF-ROAD PACKAGE) - BLACK 2 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Z987 20BK |
GROUND |
| 2 |
G301 20VT/LB |
REAR LOCKER INDICATOR SWITCH SENSE |
