Window Switch: Removal
- Disconnect and isolate the battery negative cable.

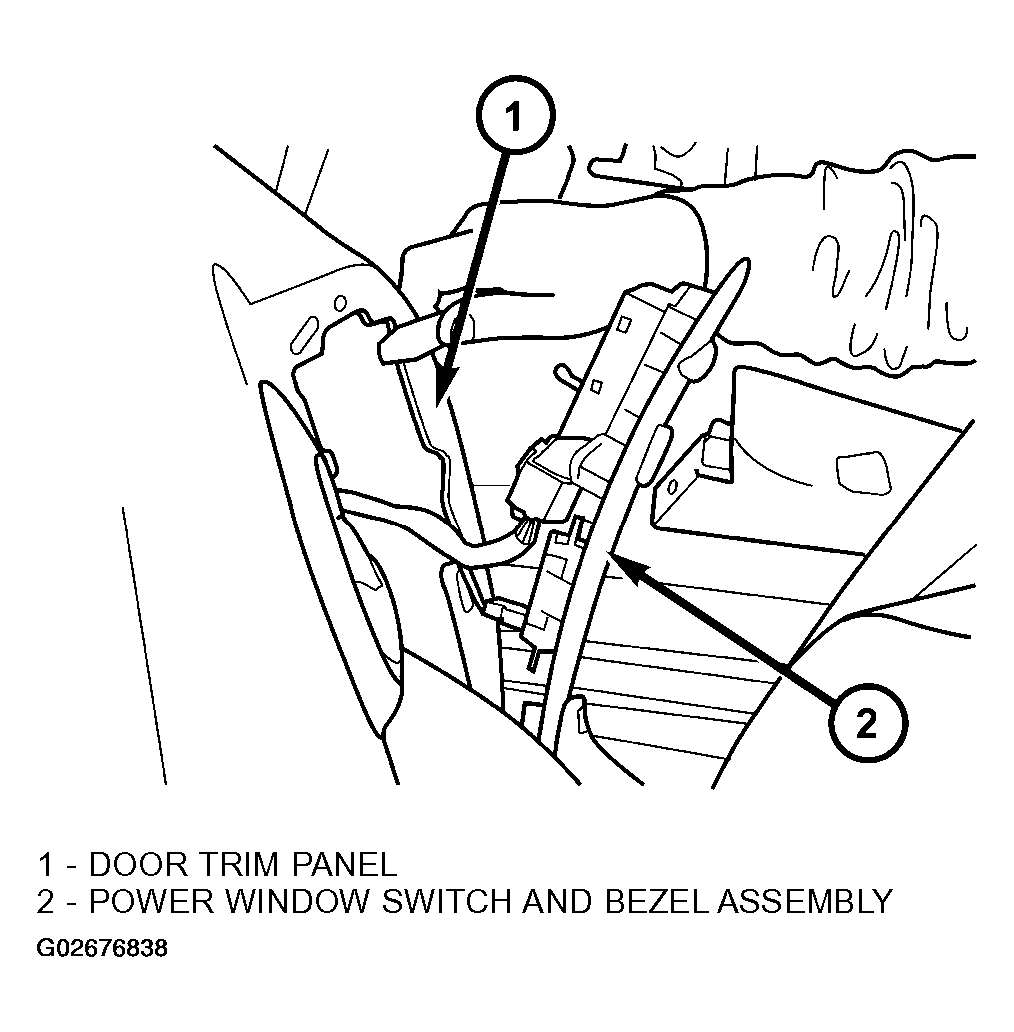

- Using a trim stick, start at the bottom of the switch and bezel assembly and pry up to remove the switch and bezel assembly from the door trim panel (Fig 1).
Courtesy of DAIMLERCHRYSLER CORP.
- Unlatch the locking tab on the harness side connector of the switch.
- Disconnect wire harness connectors from switch.
