Installation - 3.3/3.8L

  1. Install coil over studs on bracket.
  2. Install 2 bolts to ignition coil.
  3. Install 2 nuts to the ignition coil studs. Tighten nuts and bolts.
  4. Connect the electrical connector to the ignition coil.
  5. Install the ignition cables to the ignition coil.

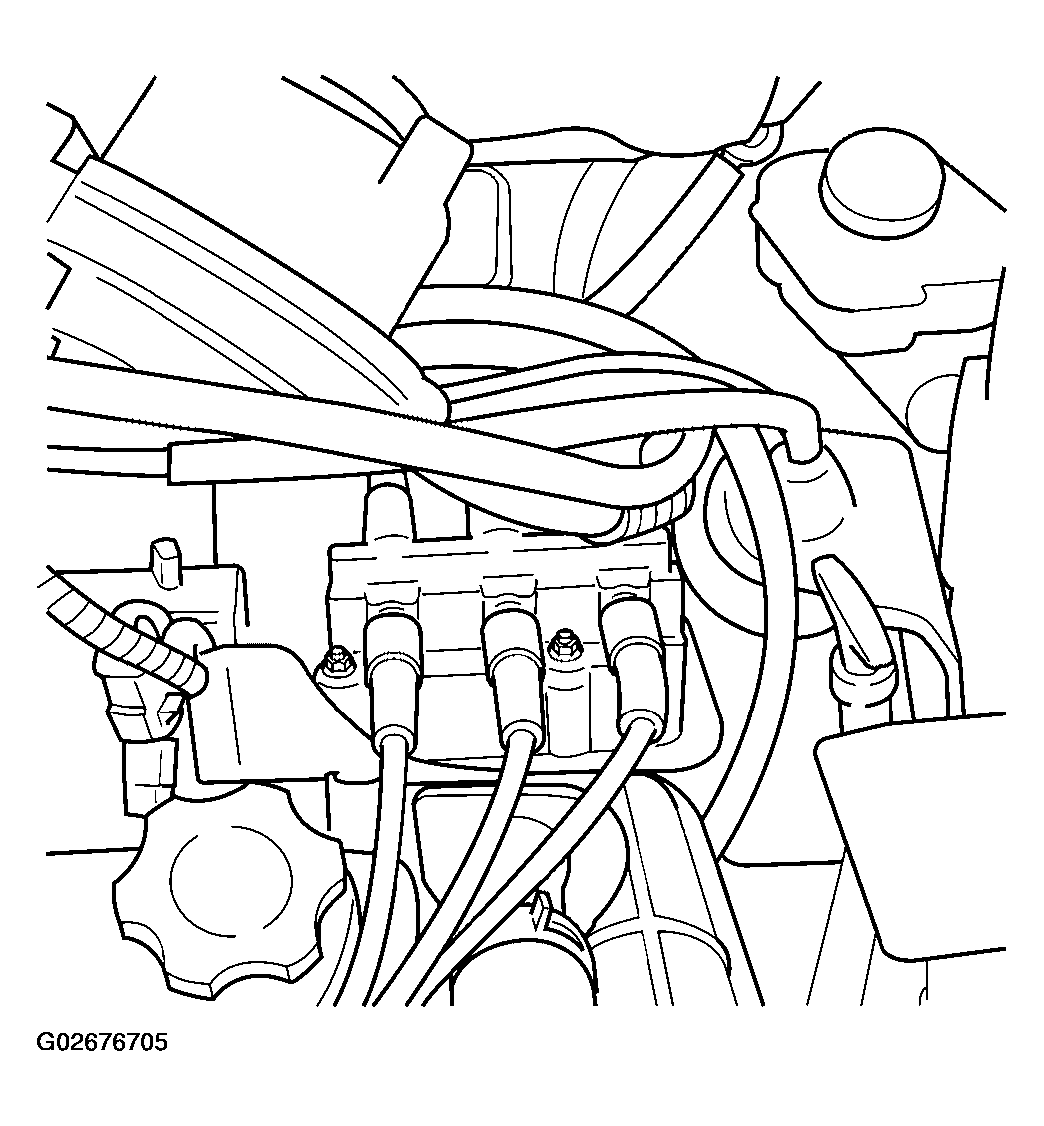

  6. Reposition the Power steering reservoir. Slide bracket over the mounting stud (Figure ).
  7. Install 2 bolts to the Power steering reservoir to intake manifold.
  8. Tighten the lower nut to stud on ignition coil bracket.
  9. Install the throttle and speed control cables to clip.
  10. Connect the negative battery cable.
