Installation - 3.3/3.8L

If the removed sensor is reinstalled, clean off the old spacer on the sensor face. A NEW SPACER must be attached to the face before installation.  Inspect O-ring for damage, replace if necessary. If the sensor is being replaced, confirm that the paper spacer is attached to the face and O-ring is positioned in groove of the new sensor (Fig 1 ).

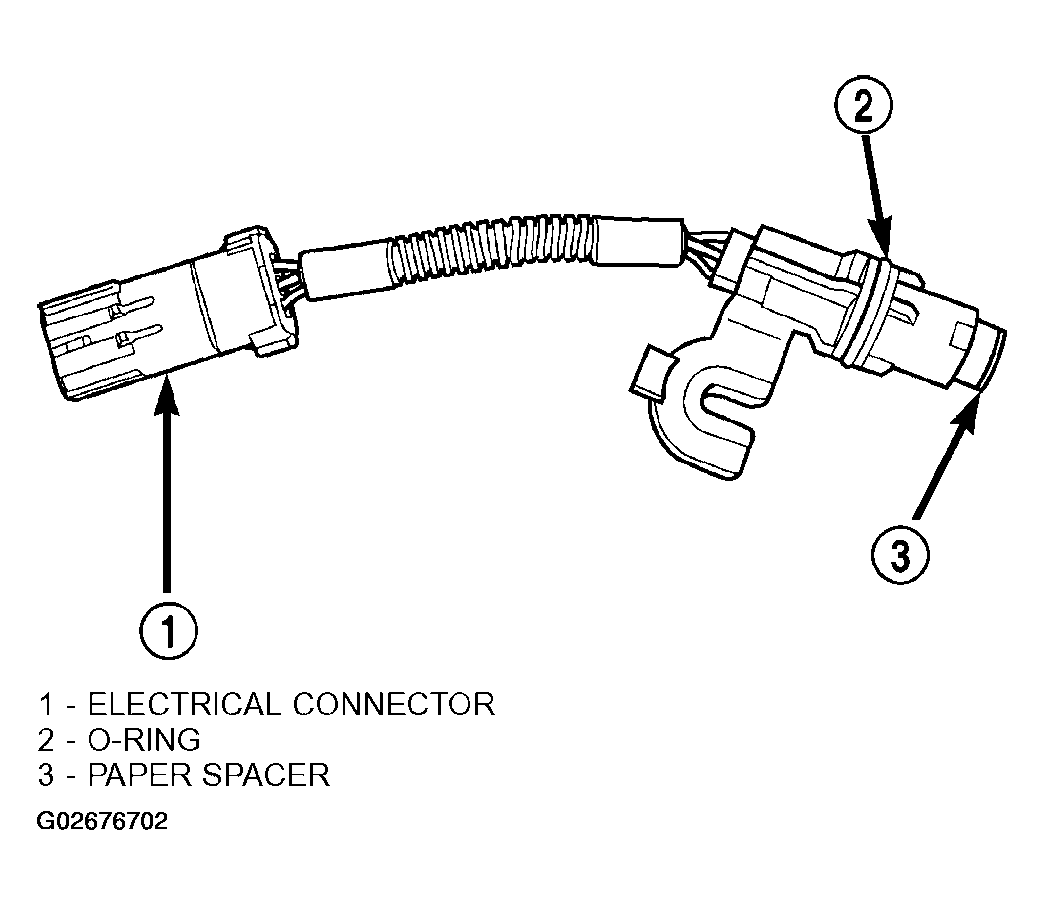

Fig 1: Identifying Camshaft Position Sensor And Spacer

Courtesy of DAIMLERCHRYSLER CORP.

1. Apply a couple drops of clean engine oil to the O-ring prior to installation.
2. Install sensor in the chain case cover and rotate into position.
3. Push sensor down until contact is made with the camshaft gear. While holding the sensor in this position, install and tighten the retaining bolt 14 N.m (125 in. lbs.) torque.
4. Connect camshaft position sensor electrical connector to harness connector.

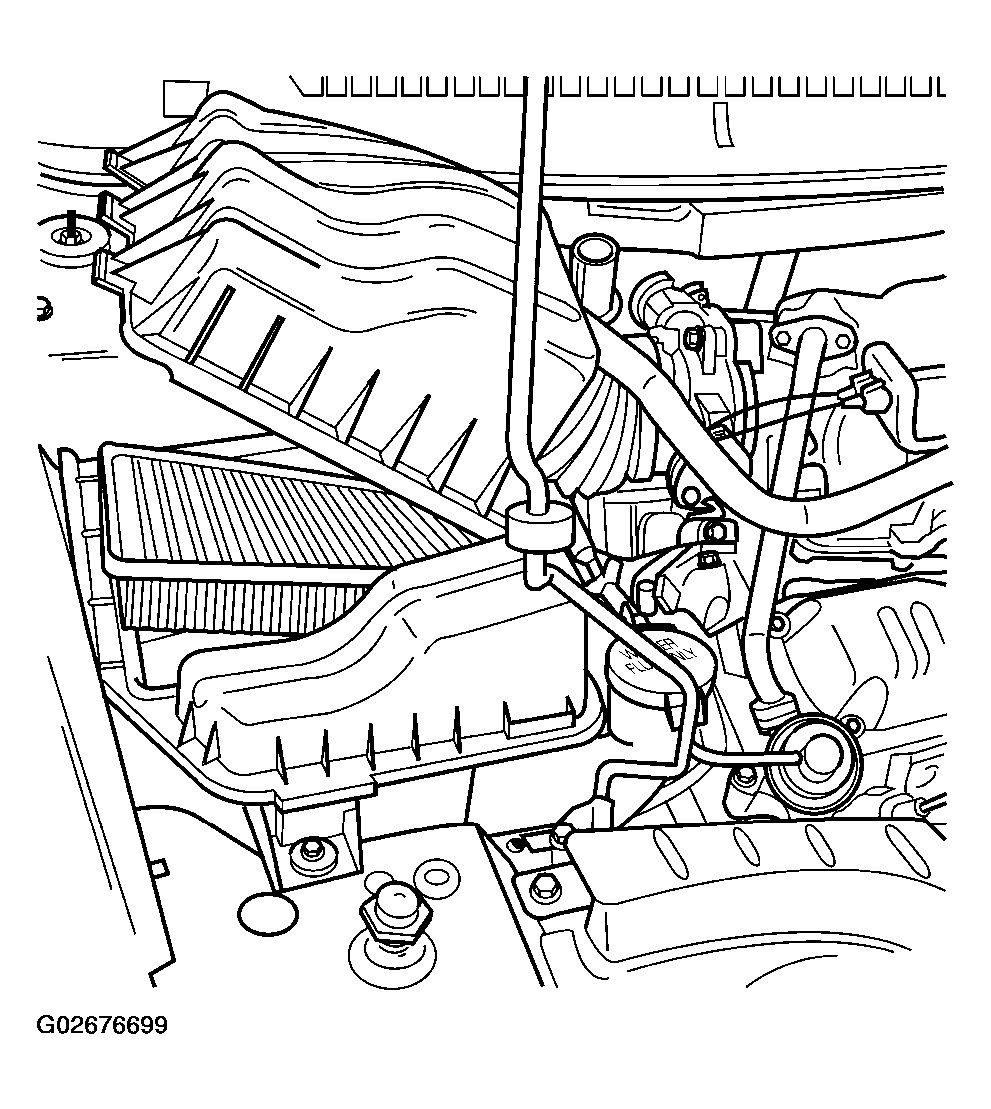

5. Install the air box cover and inlet hose (Figure ).
6. Connect the negative battery cable.
