Installation - 2.4L

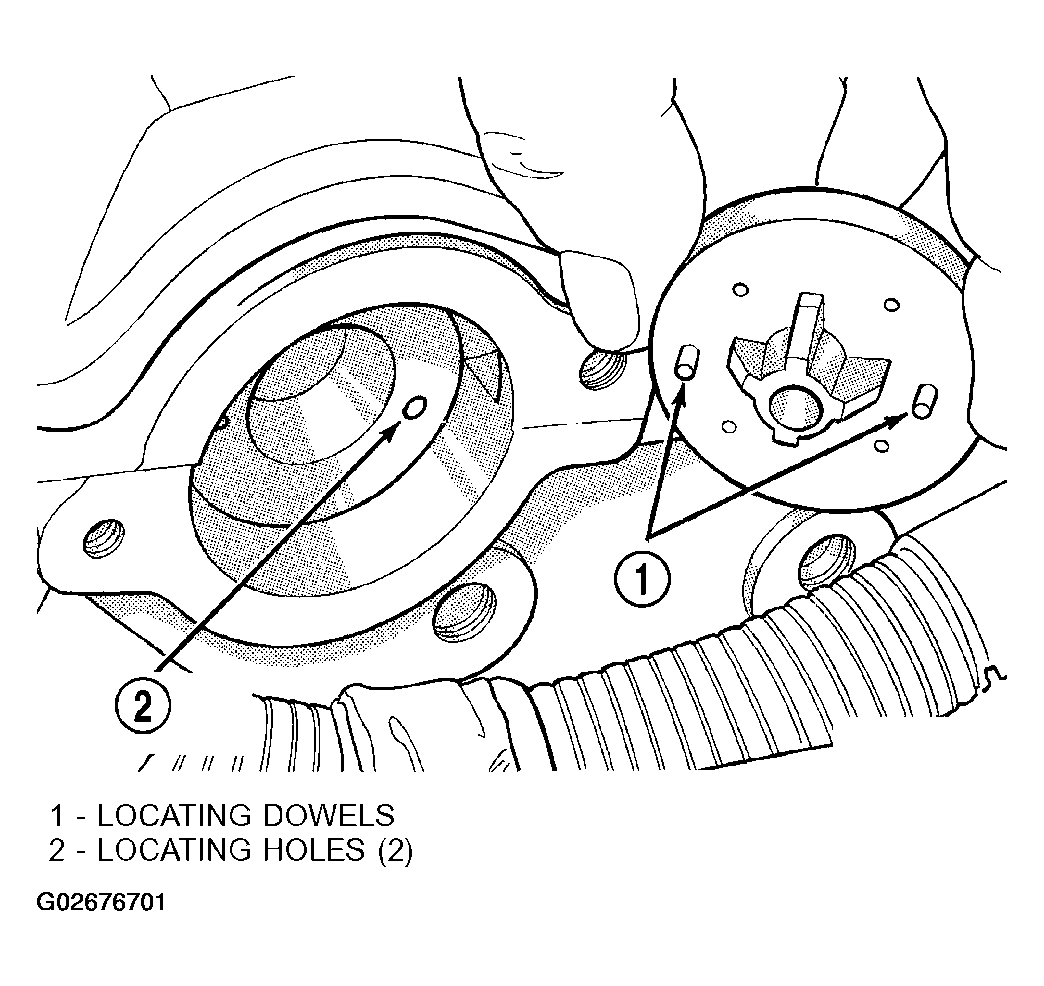

The target magnet has locating dowels that fit into machined locating holes in the end of the camshaft (Fig 1 ).

Fig 1: Installing Target Magnet

Courtesy of DAIMLERCHRYSLER CORP.

1. Install target magnet in end of camshaft. Tighten mounting screw to 3 N.m (30 in. lbs.) torque. Over torquing could cause cracks in magnet. If magnet cracks replace it.
2. Install camshaft position sensor. Tighten sensor mounting screws to 12.9 N.m (115 in. lbs.) torque.
3. Carefully attach electrical connector to camshaft position sensor.
4. Connect the negative battery cable.
