Body Control Module C4

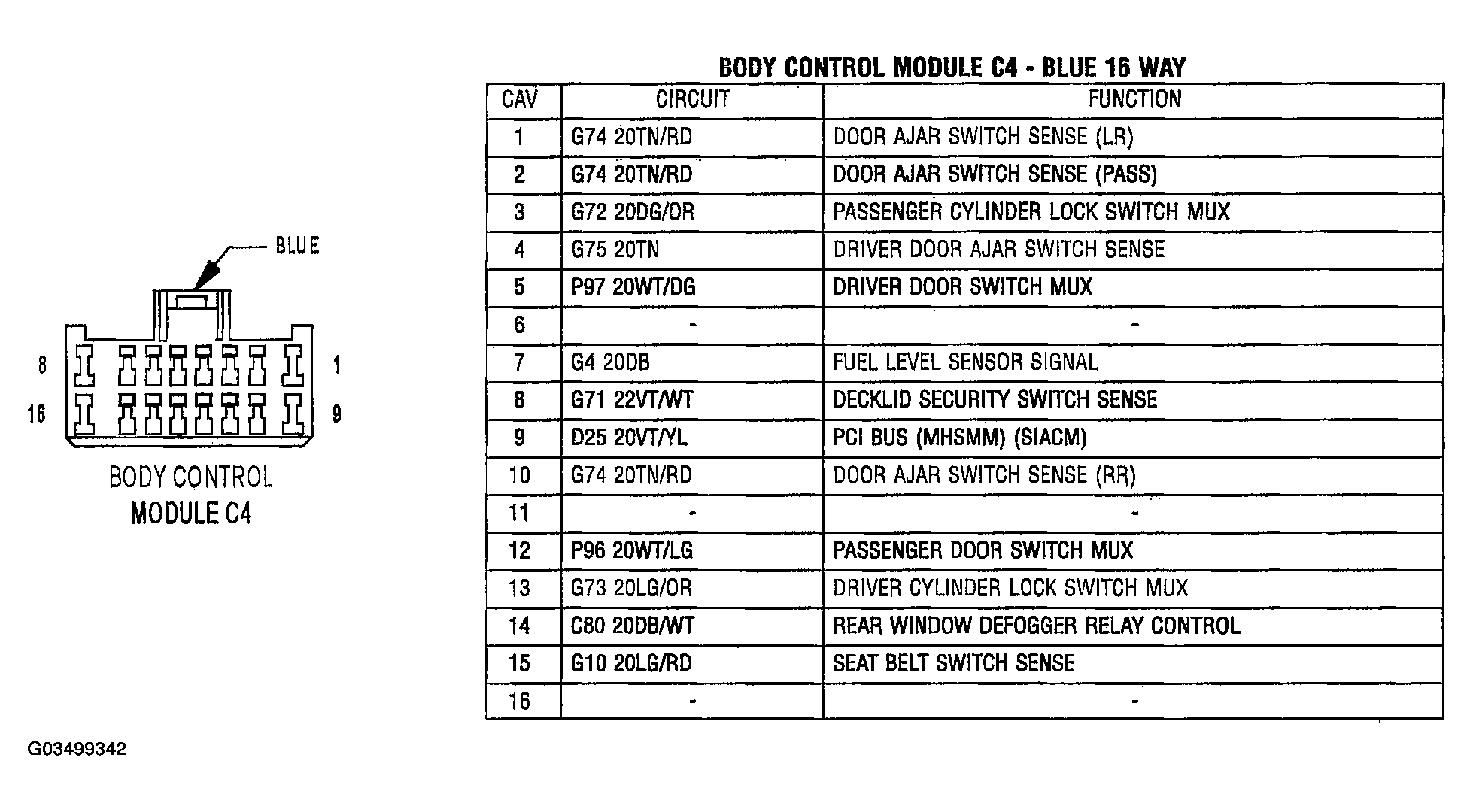

Fig 1: Identifying Body Control Module Connector

Courtesy of DAIMLERCHRYSLER CORP.
