Sentry Key Remote Entry Module: Description

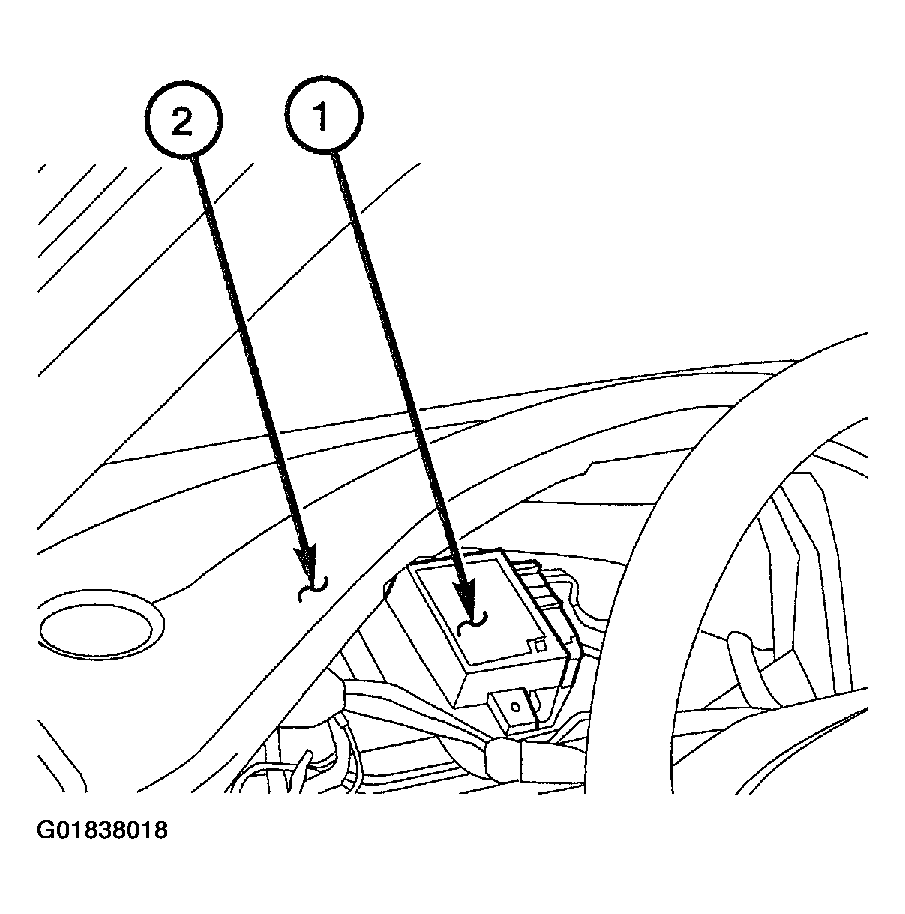

The Sentry Key Remote Entry Module (SKREEM) (1) is located underneath the top pad of the instrument panel (2) behind the Instrument Cluster. The SKREEM works in conjunction with the vehicle locking/unlocking remote control and the Central Locking Pump/Security System Module to lock and unlock the vehicle.
The SKREEM is also the primary component of the sentry key system. The SKREEM has a halo-like Antenna Ring that connects by wires to the SKREEM and is mounted around the Ignition Lock Cylinder. The SKREEM cannot be adjusted or repaired. If faulty or damaged, the unit must be replaced.
