Radiator Fan Control Module Connector End View

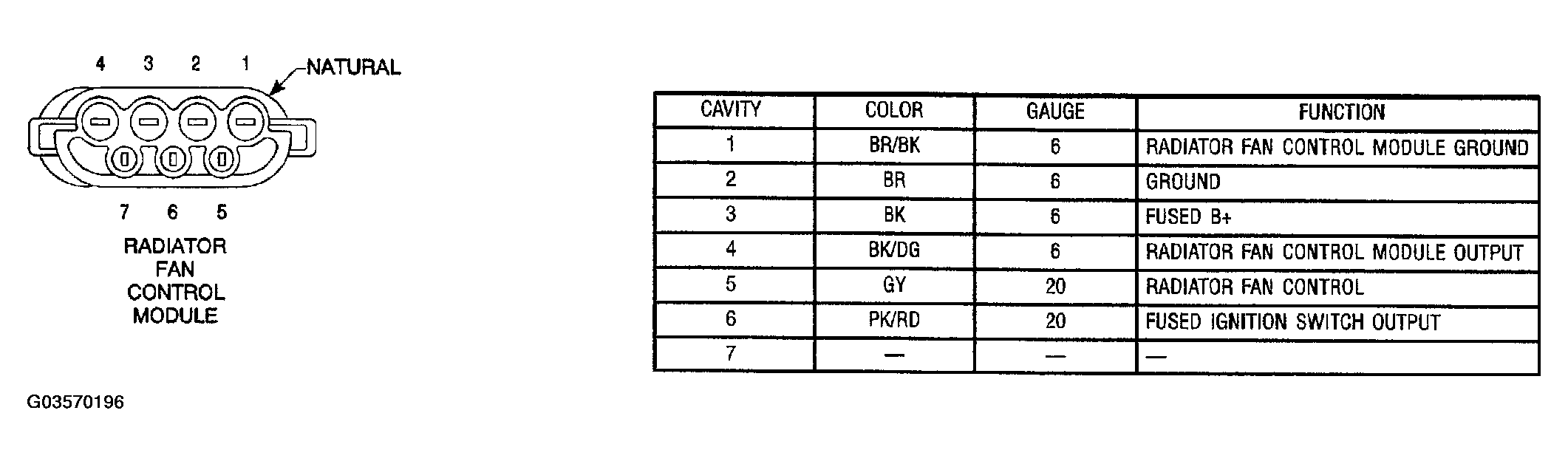

Fig 1: Radiator Fan Control Module Connector End View
G03570196Courtesy of DAIMLERCHRYSLER CORP.
